Compare Foil Drive Systems

Find all the essential information you need to discover our Foil Assist systems. Compare features, performance metrics, and options to determine the best solution tailored to your foiling needs.

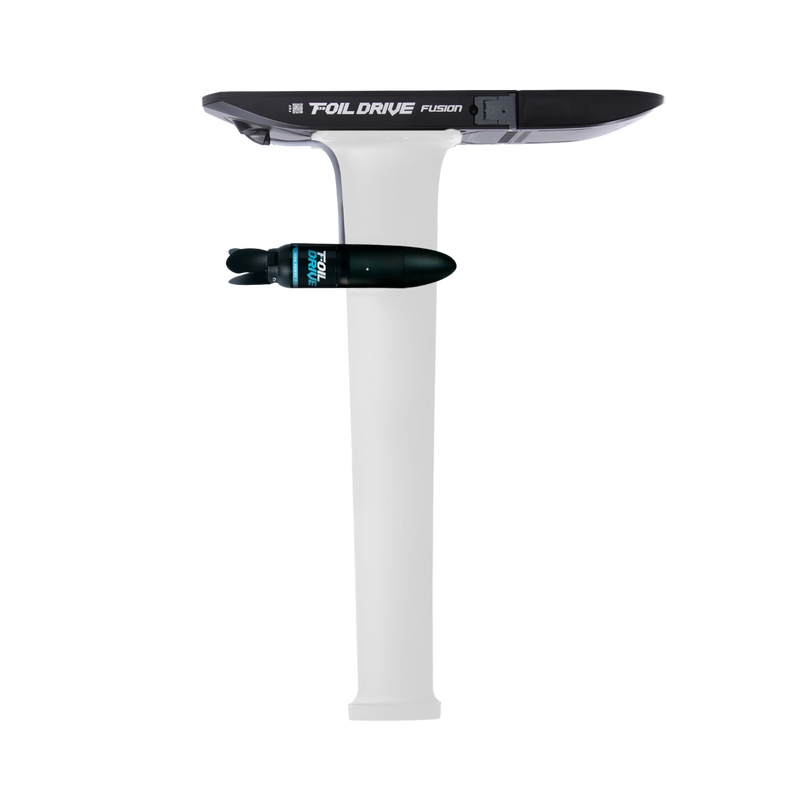

Fusion (NEW)

With the power and runtime of an Efoil, the lightness and adaptability of an Assist, the Fusion earns its name as the perfect blend of both worlds.
Learn More Shop Now

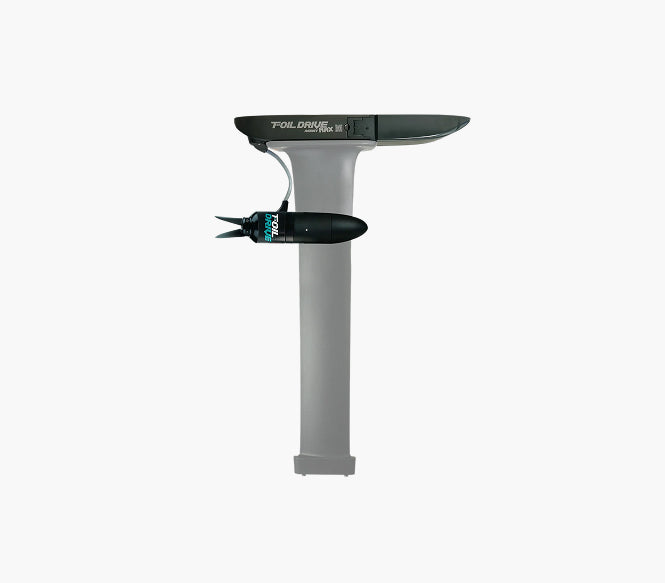

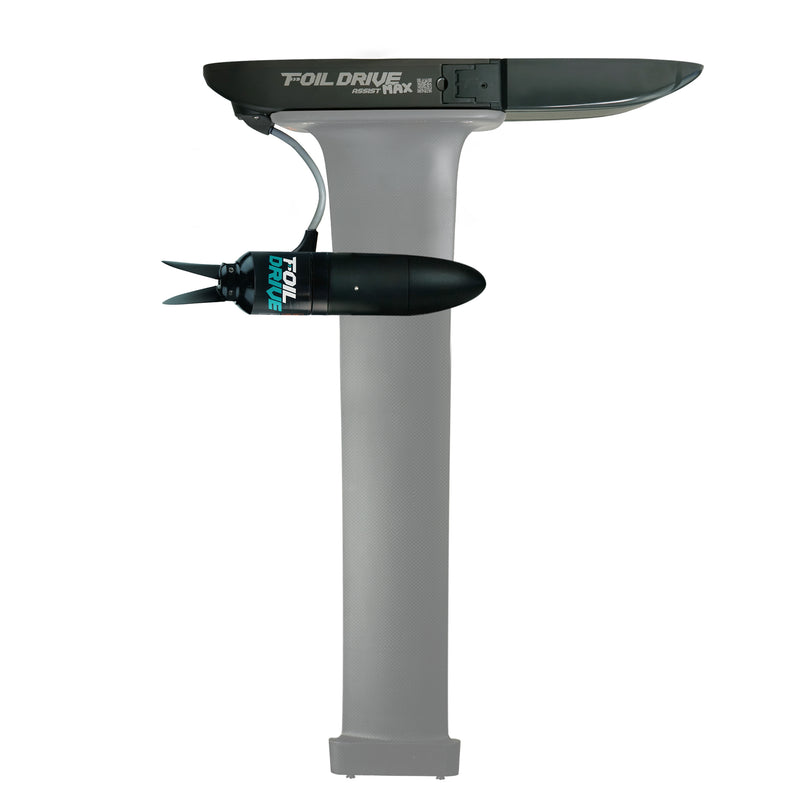

Assist MAX

The Assist MAX is the all-rounder Foil Drive system, engineered for the perfect balance between thrust, runtime, and versatility across all foiling disciplines.
Learn More Shop Now

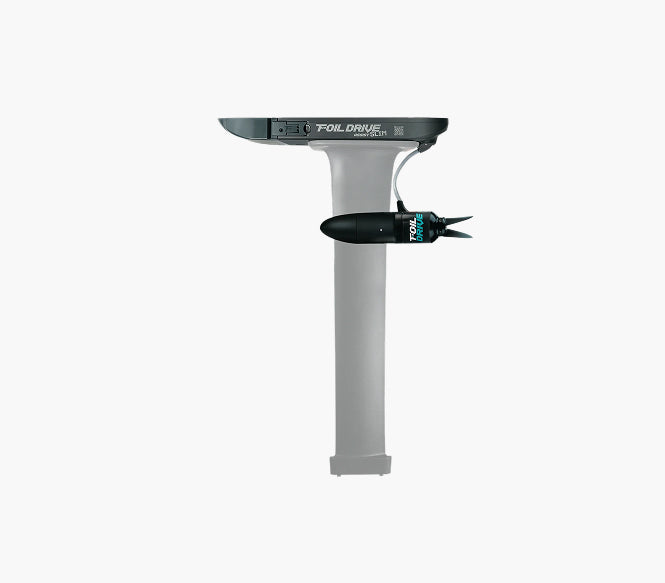

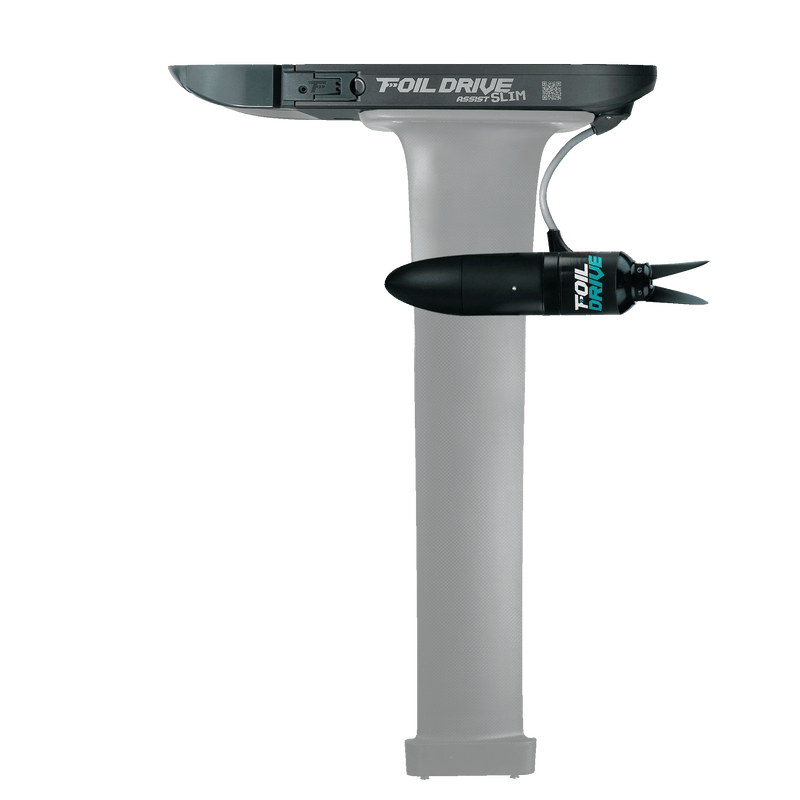

Assist Slim

Built for riders who prioritize responsiveness, agility, pumping, and minimal drag, the Slim excels in short, powerful bursts to get on foil then transition to pure glide.
Learn More Shop Now
Scroll across to see more stats! →
Fusion
+Motor & Pod 		Assist MAX
+Motor & Pod 		Assist Slim
+Motor & Pod
Batteries Fusion 860 Battery MAX Power MAX Sport MAX Travel Battery Slim Endurance Slim Performance Slim Travel Battery
Total Install Weight 7.9kg 5.8kg 4.8kg 5.6kg 4.25kg 3.75kg 3.95kg
Dimensions
(Box & Nose Cone) 		L658 x W125 x H54mm L525 x W125 x H50mm L415 x W125 x H50mm L400 x W75 x H40mm L510 x W125 x H35mm L415 x W125 x H35mm L410 x W75 x H21mm
Maximum Thrust 34kg / 74.9lbs 27.5kg 27.5kg 27.5kg 25.5kg 25.5kg 25.5kg
Thrust to Weight Ratio* 4.3 4.7 5.7 4.91 6 6.8 6.46
Max Boost 28% 24% 24% 24% 24% 24% 24%

Scroll across to see more stats! →
Batteries
Batteries Fusion 860 MAX High Power MAX Power MAX Sport MAX Travel Battery
 		Slim Endurance Slim Performance Slim Travel Battery
Battery Voltage 43v 40v 40v 40v 40v 28v 40v 40v
Battery Capacity 864Wh 594Wh 498.69Wh 332.64Wh 356.40Wh 241.92Wh 166.32Wh 178.20Wh
Battery Dimensions L575 x W122 x H54mm L420 x W75 x H40mm L420 x W75 x H40mm L290 x W75 x H40mm L400 x W75 x H40mm L410 x W75 x H21mm L320 x W75 x H21mm L410 x W75 x H21mm
Battery Weight 4.9g 2.8kg 2.7kg 1.8kg 2.40kg 1.45kg 1.05kg 1.25kg
Energy Density⌃ 176.32 Wh/kg 212 Wh/kg 184 Wh/kg 179 Wh/kg 149 Wh/kg 166 Wh/kg 158 Wh/kg 143 Wh/kg
Airline Compliant ✖︎ ✖︎ ✖︎ ✖︎ ✔︎ ✖︎ ✖︎ ✔︎
Water & Dust Resistance Rating IP68 IP68 IP68 IP68 IP68 IP68 IP68 IP68

Thrust To Weight Ratio*

Power to Weight Ratio is calculated by Thrust ÷ Install Weight. It indicates how much thrust a system produces relative to its weight, expressed as units of thrust per unit of weight. For example: 4.35 kg of thrust (Newtons) per kilogram of system weight. This ratio provides a useful way to compare different systems in the market, however real-world performance will also depend on the setup you ride, including your foil, board, conditions and riding style.

Energy Density ⌃

This is the amount of energy per kilogram of each battery. It is calculated based on Watt Hour ÷ Battery Weight

Airline Travel

Foil Drive batteries are subject to airline approval. Most airlines currently allow the transport of lithium batteries under 160 Wh, however, please check with your carrier before you travel.

Thrust To Weight Ratio*

Power to Weight Ratio is calculated by Thrust ÷ Install Weight. It indicates how much thrust a system produces relative to its weight, expressed as units of thrust per unit of weight. For example: 4.35 kg of thrust (Newtons) per kilogram of system weight. This ratio provides a useful way to compare different systems in the market, however real-world performance will also depend on the setup you ride, including your foil, board, conditions and riding style.

Energy Density ⌃

This is the amount of energy per kilogram of each battery. It is calculated based on Watt Hour ÷ Battery Weight

Airline Travel

Foil Drive batteries are subject to airline approval. Most airlines currently allow the transport of lithium batteries under 160 Wh, however, please check with your carrier before you travel.

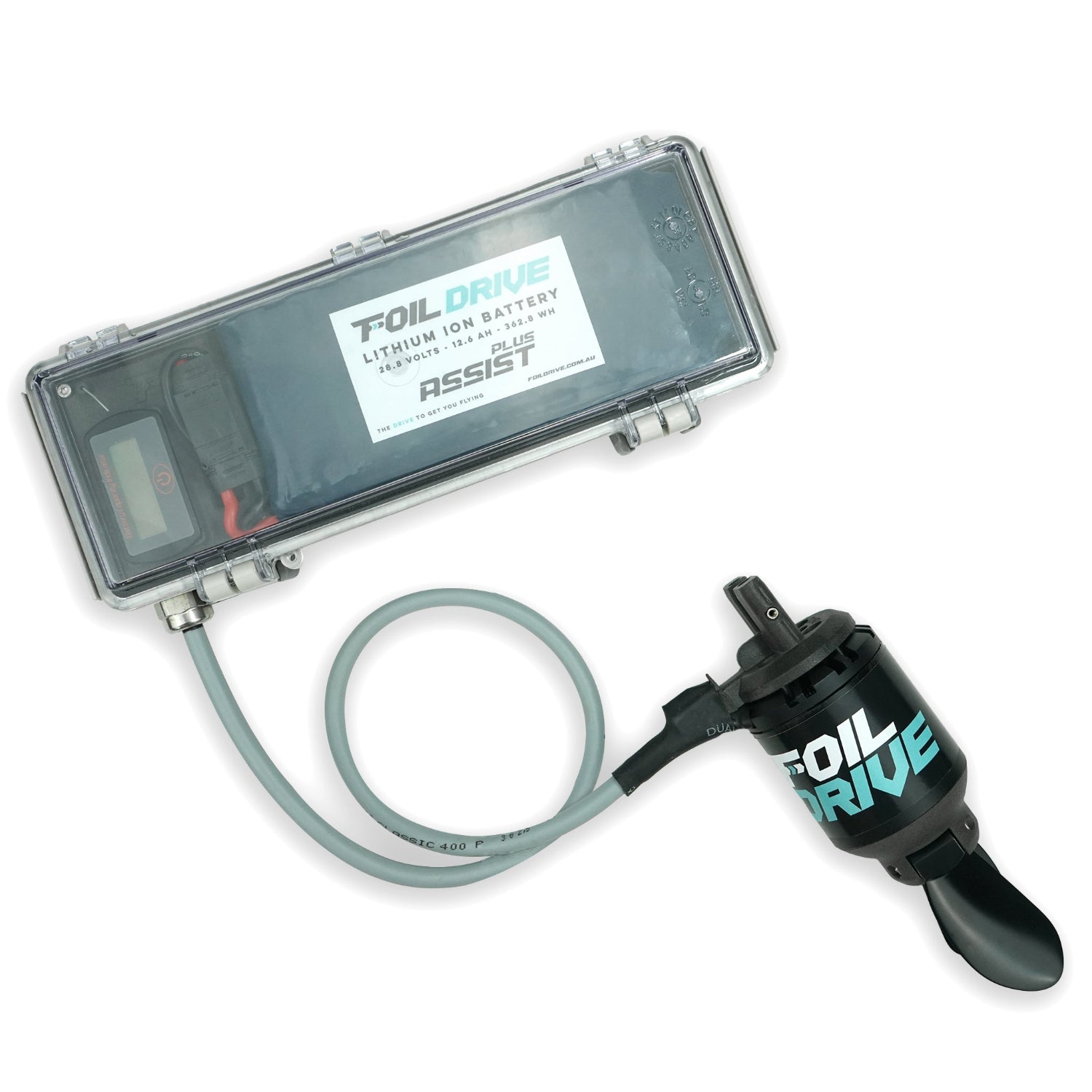

Foil-Drive-Assist-PLUS-S22-2 Foil-Drive-Assist-PLUS-S22-2

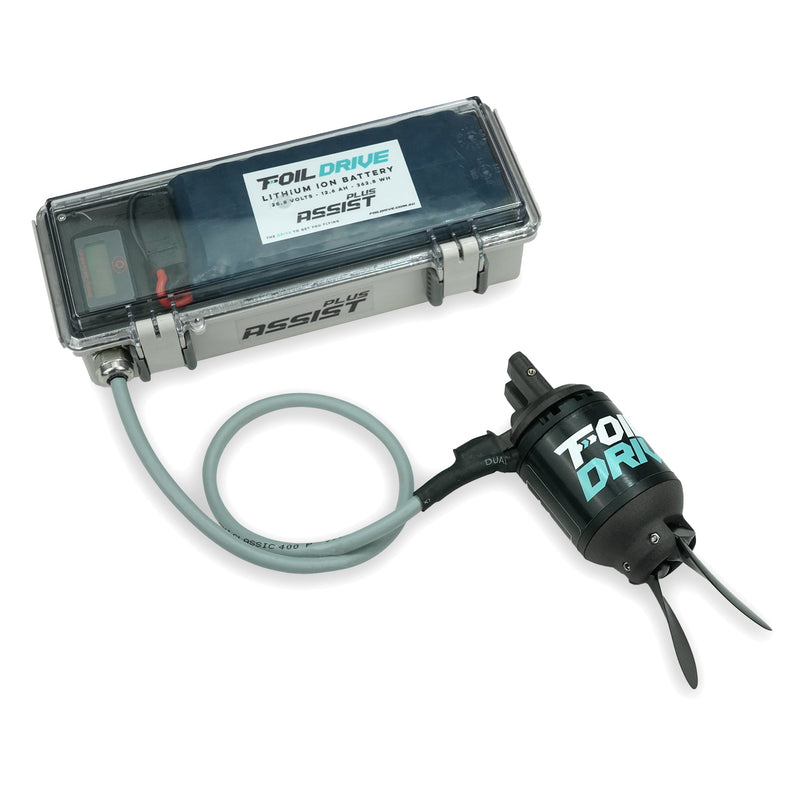

GEN1 - FOIL DRIVE assist & assist plus

The Gen 1 Range is no longer available for purchase of new systems. We do however continue to support spare parts, accessories and batteries for Gen1 Customers. You can shop Gen1 products only from Foil Drive in Australia linked below.

Shop Gen1 Here

Your board, our kit: endless fun

See how it works

Step 1

Choose your kit


Step 2

Choose your battery


Step 3

Choose your motor

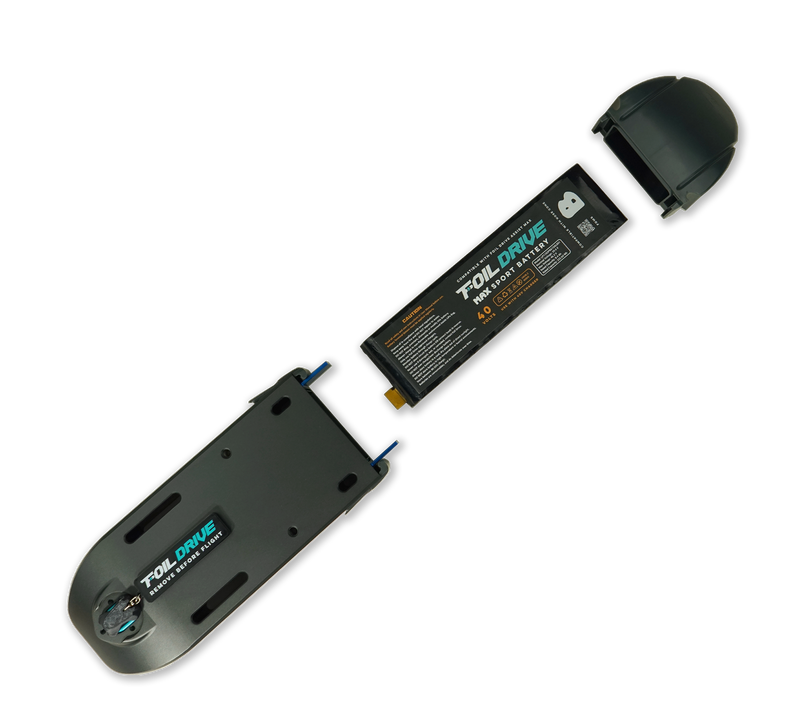

Gen2 Batteries

The Foil Drive Gen2 Batteries with increased energy density and durability.
Shop Now
Foil-Drive-Assist-PLUS-S22-1

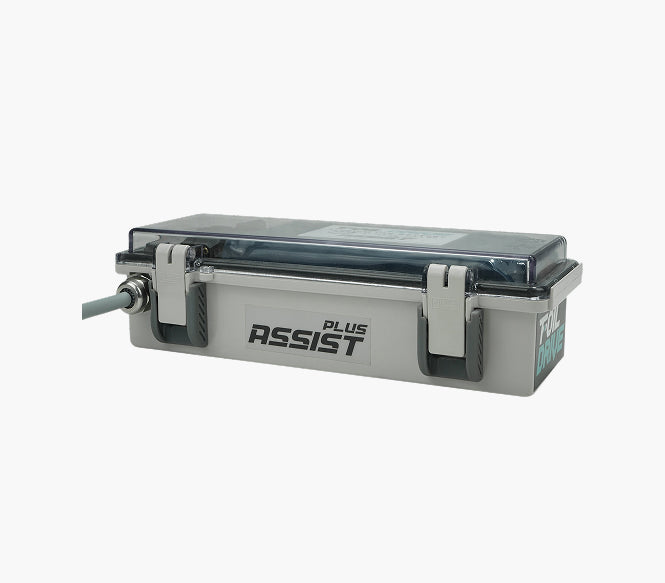

Gen1 Batteries

Batteries for the original Foil Drive Assist and Assist PLUS.
Shop Now

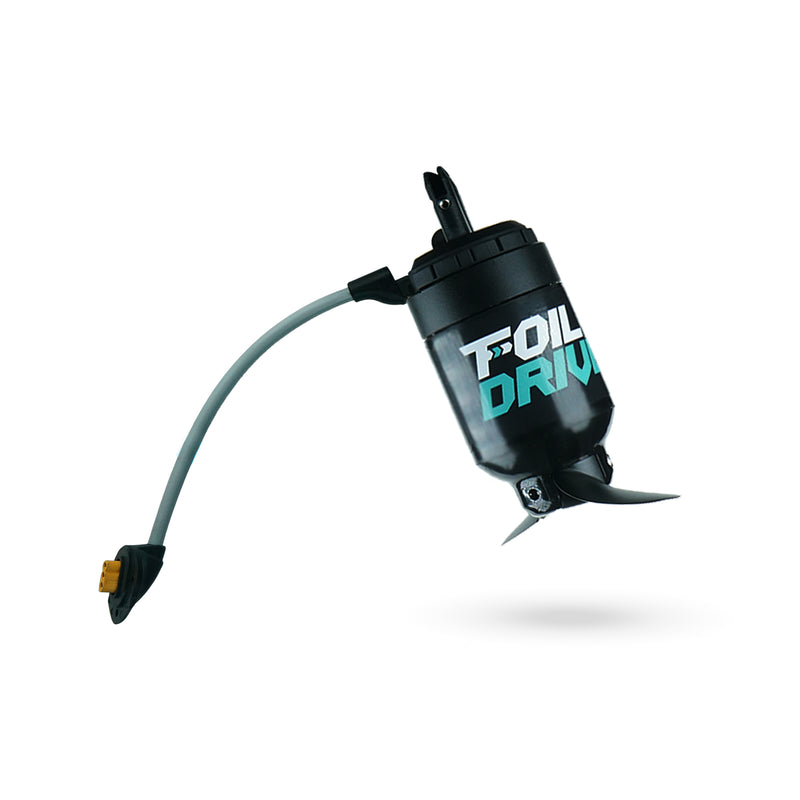

Universal Motor Systems

Shop Now

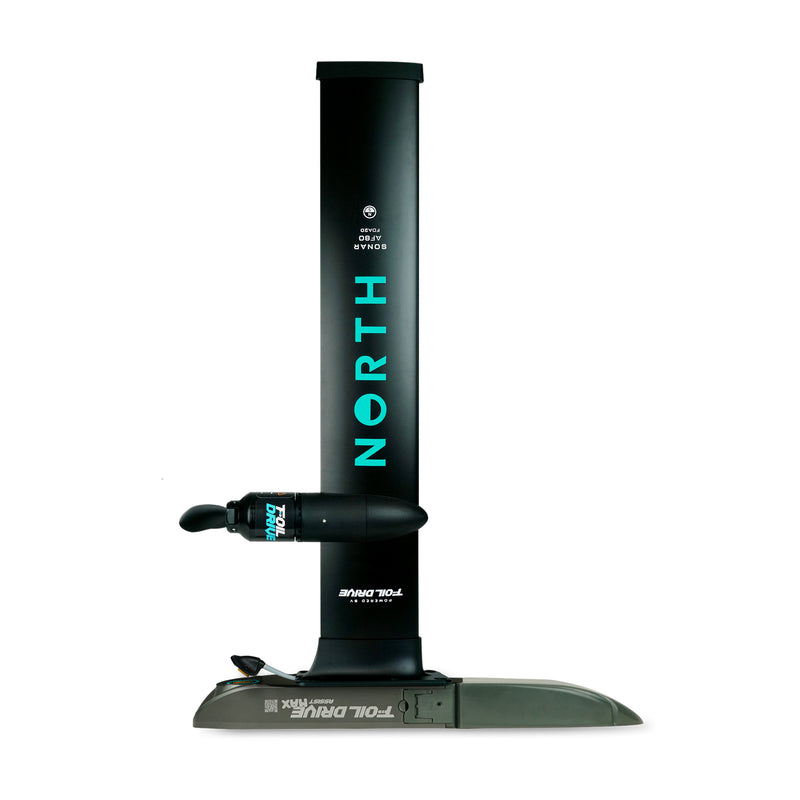

Integrated Masts
