Compare Foil Drive Systems

Find all the essential information you need to discover our Foil Assist systems. Compare features, performance metrics, and options to determine the best solution tailored to your foiling needs.

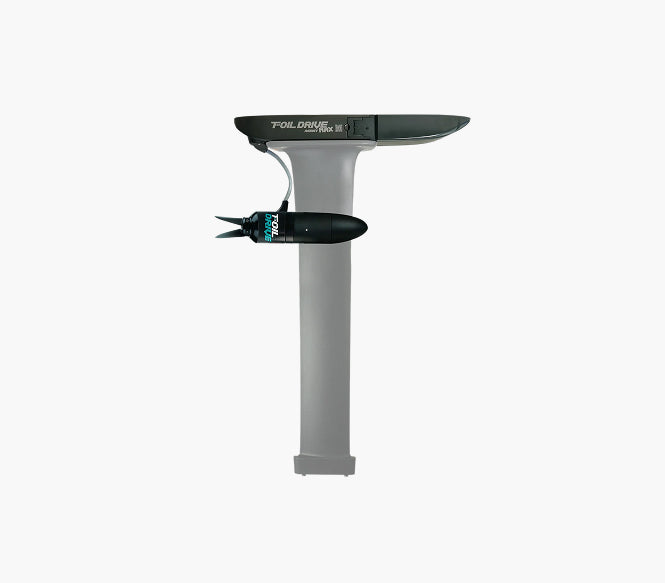

Assist MAX

The all rounder, flagship system with maximum power, runtime, thrust and versatility.
Learn More Shop Now

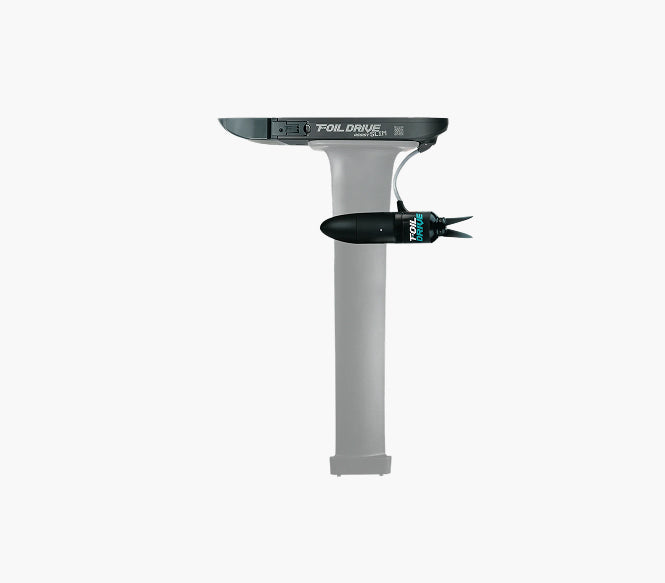

Assist Slim

Smaller and lighter with a shorter run time, for assisted foiling pop ups and more experienced riders.
Learn More Shop Now

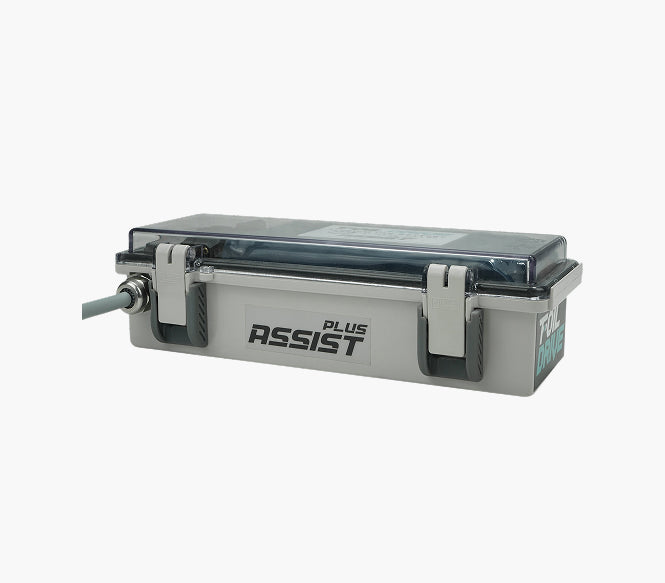

assist plus (no longer sold)

The original Foil Drive, mounted to the top side of the board, this is a great entry level system.
Learn More Shop Spare Parts
Scroll across to see more stats! →
Assist MAX
+Motor & Pod 		Assist Slim
+Motor & Pod
Batteries MAX Power MAX Sport MAX Travel Battery Slim Endurance Slim Performance Slim Travel Battery
Total Install Weight 5.8kg 4.8kg 5.6kg 4.25kg 3.75kg 3.95kg
Dimensions
(Box & Nose Cone) 		L525 x W125 x H50mm L415 x W125 x H50mm L400 x W75 x H40mm L510 x W125 x H35mm L415 x W125 x H35mm L410 x W75 x H21mm
Maximum Thrust 27.5kg 27.5kg 27.5kg 25.5kg 25.5kg 25.5kg
Thrust to Weight Ratio* 4.7 5.7 4.91 6 6.8 6.46
Max Boost 24% 24% 24% 24% 24% 24%

Scroll across to see more stats! →
Batteries
Batteries MAX Power MAX Sport MAX Travel Battery
 		Slim Endurance Slim Performance Slim Travel Battery
Battery Voltage 40v 40v 40v 28v 40v 40v
Battery Capacity 498.69Wh 332.64Wh 356.40Wh 241.92Wh 166.32Wh 178.20Wh
Battery Dimensions L420 x W75 x H40mm L290 x W75 x H40mm L400 x W75 x H40mm L410 x W75 x H21mm L320 x W75 x H21mm L410 x W75 x H21mm
Battery Weight 2.7kg 1.8kg 2.40kg 1.45kg 1.05kg 1.25kg
Energy Density⌃ 184 Wh/kg 179 Wh/kg 149 Wh/kg 166 Wh/kg 158 Wh/kg 143 Wh/kg
Airline Compliant ✖︎ ✖︎ ✔︎ ✖︎ ✖︎ ✔︎
Fast Charger Option ✔︎ ✔︎ ✔︎ ✖︎ Not Recommended Not Recommended
Water & Dust Resistance Rating IP68 IP68 IP68 IP68 IP68 IP68

* Thrust To Weight Ratio
This is calculated based on Installation Weight ÷ Thrust

⌃Energy Density
This is the amount of energy per kilogram of each battery. It is calculated based on Watt Hour ÷ Battery Weight

Both of these calculations can be used to provide a comparison of Foil Assist Batteries. The calculation has been done for you in the table above.

* Thrust To Weight Ratio
This is calculated based on Installation Weight ÷ Thrust

⌃Energy Density
This is the amount of energy per kilogram of each battery. It is calculated based on Watt Hour ÷ Battery Weight

Both of these calculations can be used to provide a comparison of Foil Assist Batteries. The calculation has been done for you in the table above.

Foil Drive Batteries

Foil Drive takes customisation to the next level by offering a selection of batteries that allow riders to prioritise either weight and performance or extended runtime.

Our lightweight batteries ensure optimal performance on the water, while our range of airline-friendly options makes it easy to take your Foil Drive system on your next vacation. Choose the perfect battery to suit your foiling style.

Gen2 Batteries

The Foil Drive Gen2 Batteries with increased energy density and durability.
Shop Now
Foil-Drive-Assist-PLUS-S22-1

Gen1 Batteries

Batteries for the original Foil Drive Assist and Assist PLUS.
Shop Now

Motor Systems

Foil Drive offers a range of Motor Systems. The main two to compare are the Universal Motor System and the Integrated Mast range.

Universal Motor Systems mount externally to any mast and feature a removable cable. This allows you to change between 6 different cable lengths, altering the height of the motor on your mast. Motor heights vary allowing the rider to select an option specific to their foiling discipline or skill level. Cable lengths range from 12cm (4.7") to 70cm (27.5").

Integrated Masts feature collaborative integration with leading foiling brands. Foil Drive has worked together with multiple brands to integrate the motor cable inside the mast. This results in performance increase, drag reduction and overall improved rider feeling. for those wanting a pure foiling ride, you can't go past the Integrated Masts. Note: Motors positions are fixed and cannot be removed.
