Foil Drive Assist MAX+

Foil Drive Assist MAX+

The Foil Drive Assist MAX+ takes everything that the world loved about our most popular foil assist and evolves it into the latest Gen 2.5 class, turning up thrust, runtime, and safety features to unlock autonomy across all foiling disciplines.

Built around the same proven 43V power, tech, and charging architecture of the Fusion, the MAX+ offers our most durable one piece battery design, all while retaining the compact, lightweight and balanced package that made the original MAX so versatile.

Unlock smaller foils, boards, performance, faster take-off, and more time on the water with tilt-safety cut off features that makes this same retrofit kit so family friendly.

The lightweight balance that made MAX the all rounder remains, while everything around it has evolved.

Riders can enjoy a sportier feel without compromising on thrust and boost thanks to the NEW FM+650 Battery (650Wh) and early in 2027 the even smaller, FM+430 Battery.

Simply choose your desired motor option and AC lead below.

Configure Your Kit

Battery SystemView Battery Guide

Choose Your Battery

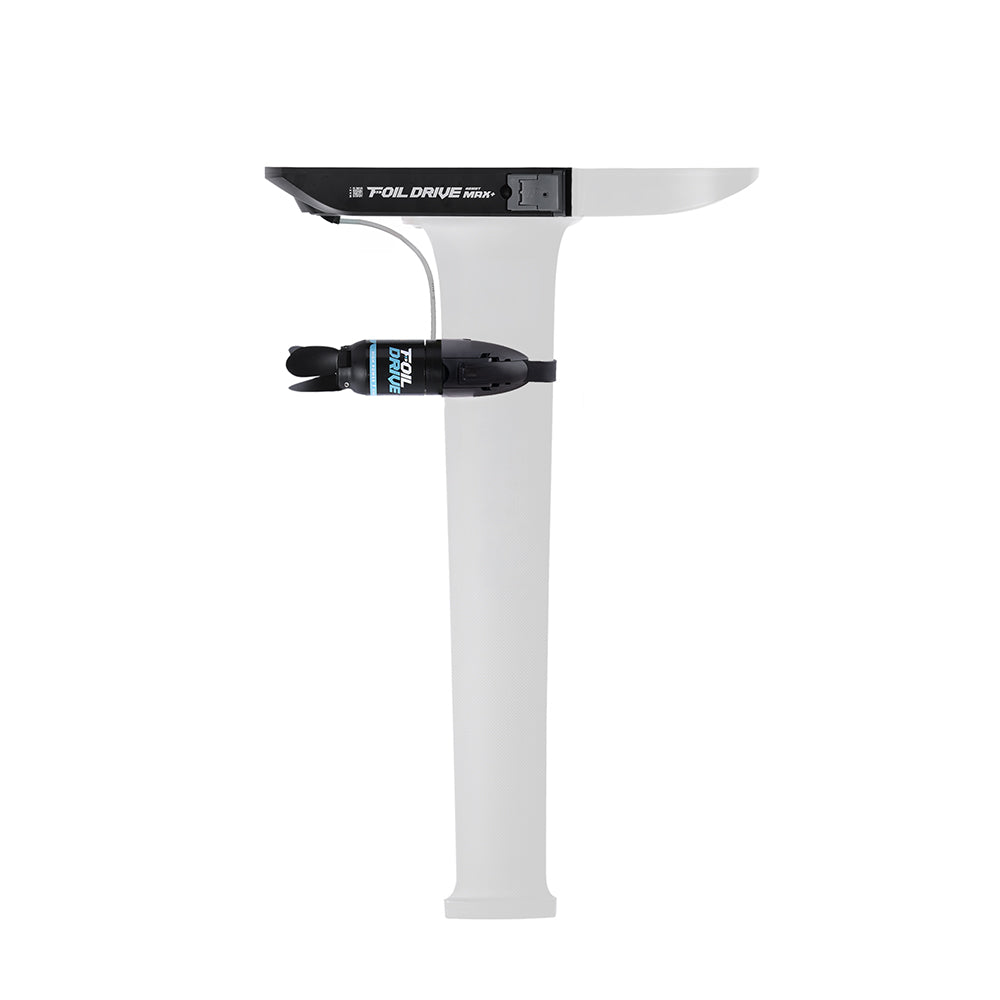

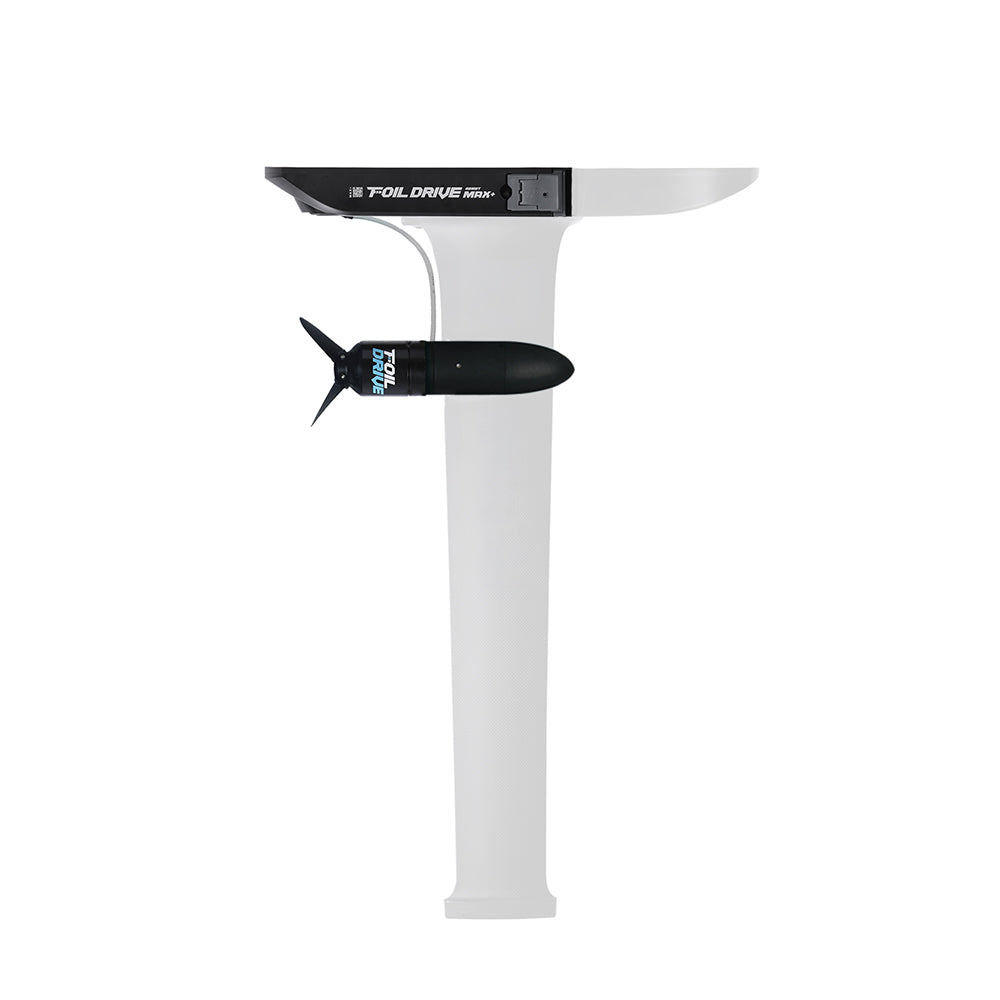

Motor System

Choose Your Motor

Choose Your AC Power Lead
$8,544.00 AUD
$8,544.00 AUD

(includes local duties & taxes)

Details
icon

The Assist MAX+ is built for riders who want the best all-around system that can open up every side of foiling

  • Spend over an hour flying through surf and riding waves.
  • Motor upwind to unlock downwind runs without a shuttle
  • Practice pumping without wasting energy on repeated tow or surf starts
  • Chase wakes from passing boats
  • Extra thrust to get onto smaller foils and boards with more confidence and runtime.

From tiny bumps to the biggest waves of your life, MAX+ gives you the freedom to keep flying regardless of the conditions. Surf, lightwind wing, downwind, wake, flatwater or eFoiling, it adds more power, runtime and range to practically any existing foil setup you have already or want to ride, making every session easier to access, more productive and more fun.

Tech Specs
icon
  • System Voltage: 43.2V
  • Battery Capacity Range: 648Wh
  • Max Thrust: 35.5kg
  • Minimum Install Weight*: 6.71 kg
  • Dimensions with Battery: 540x125x55mm
  • Peak Power (Boost): 2150W
  • Sustained Power: 1750W
  • Peak Horsepower: 2.88hp
  • Sustained Horsepower: 2.35hp
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance
  • Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

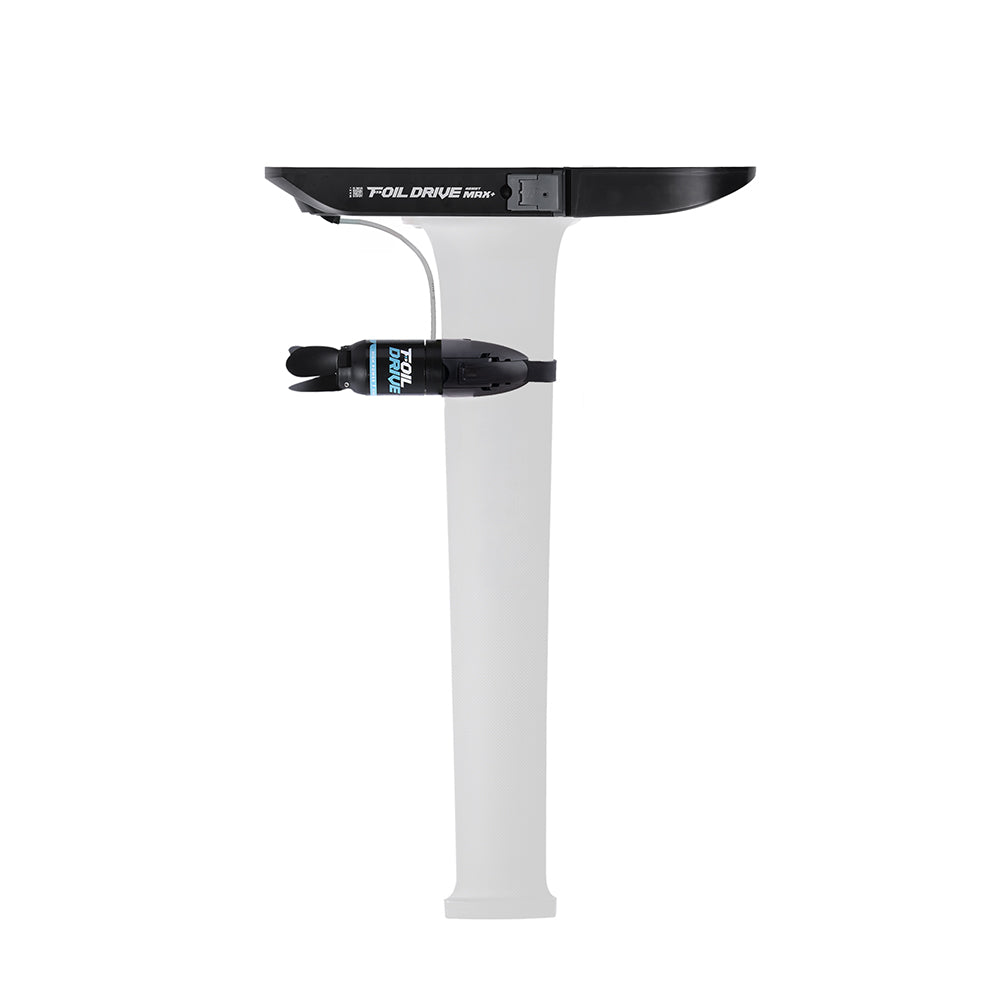

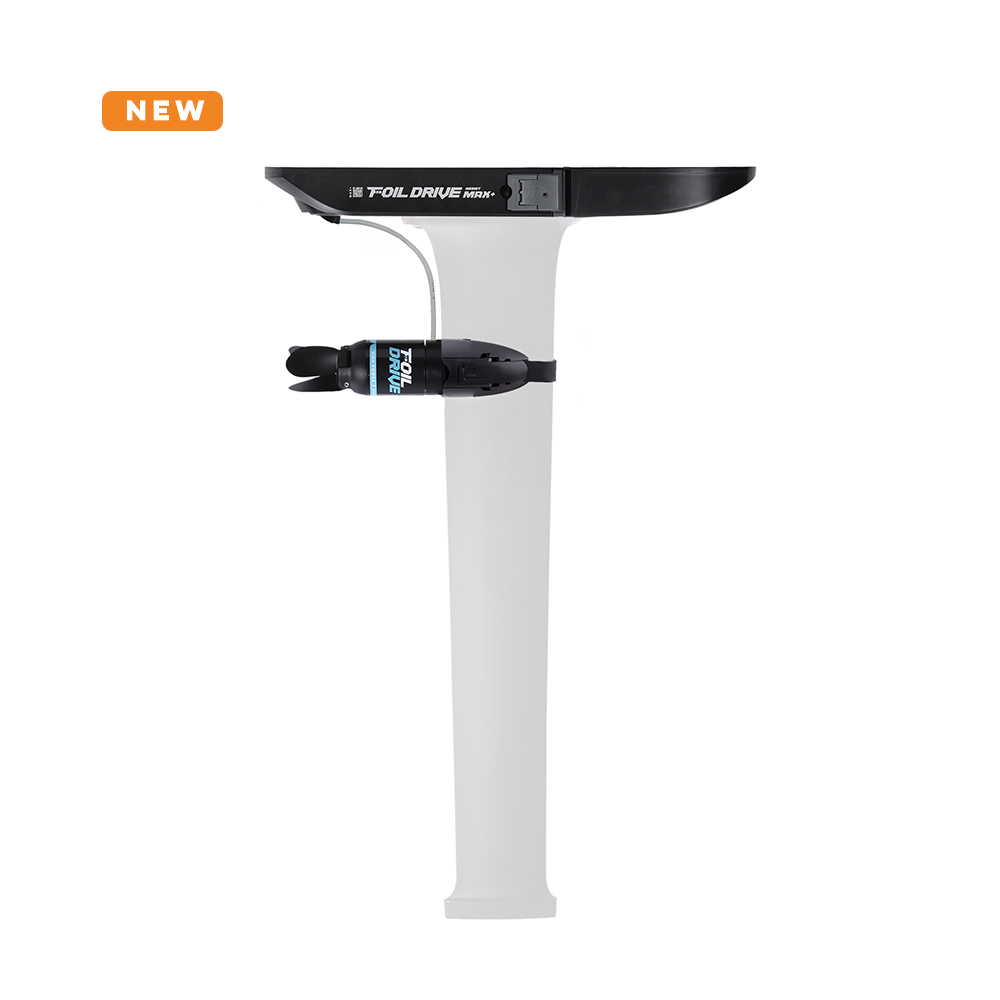

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

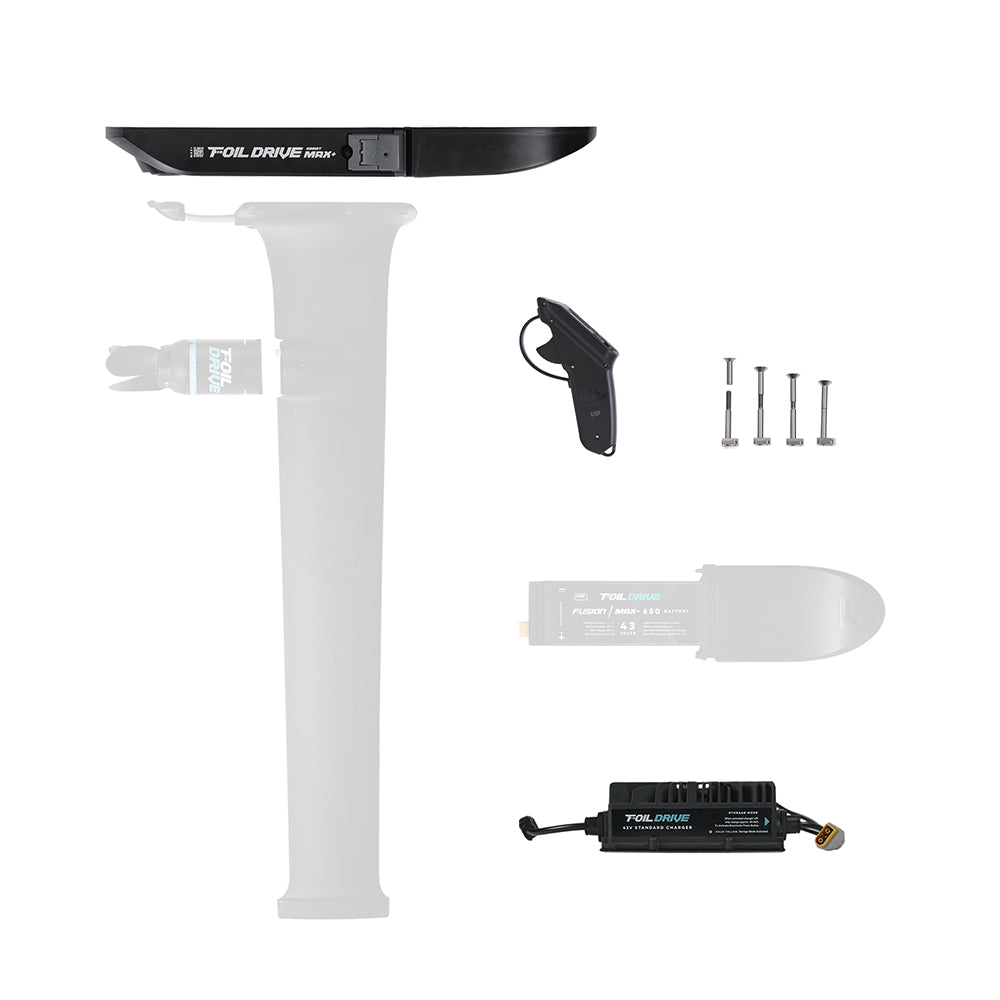

What’s Included
icon

Chosen Battery Option
Chosen Motor Option
Chosen AC Lead
___

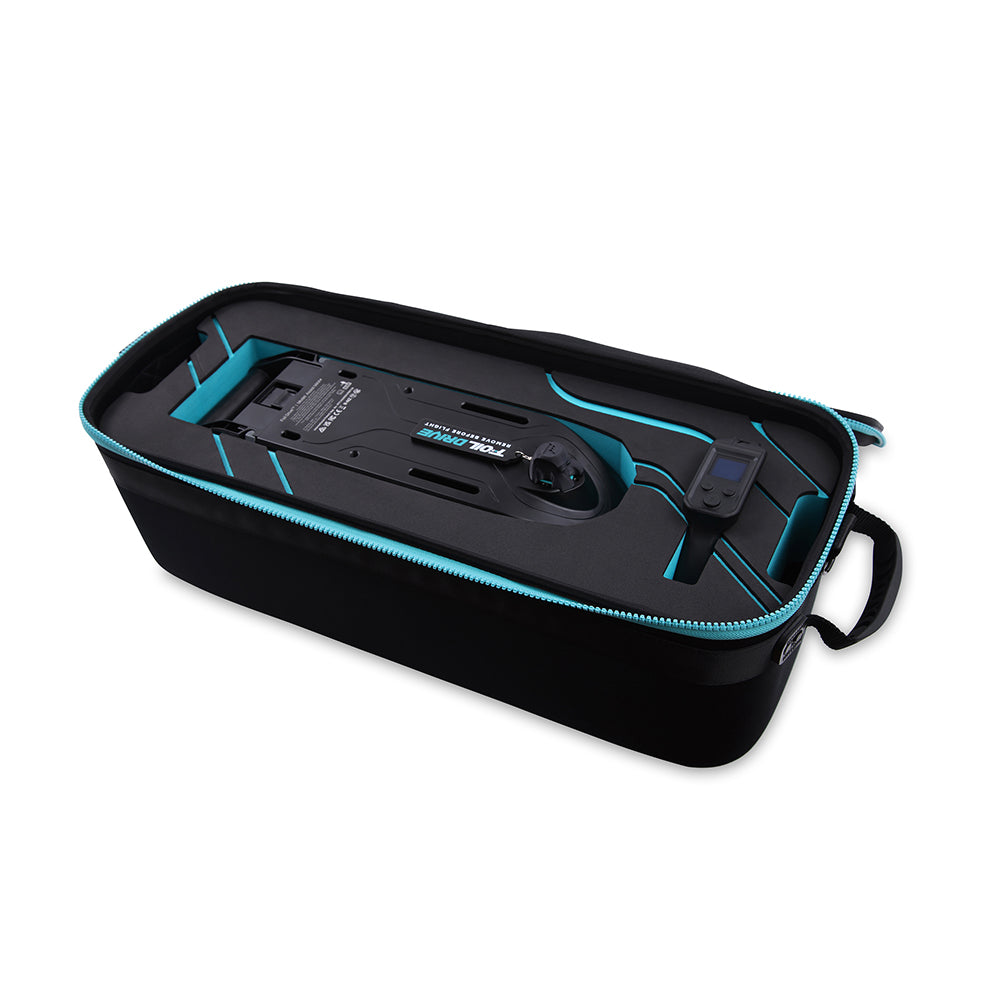

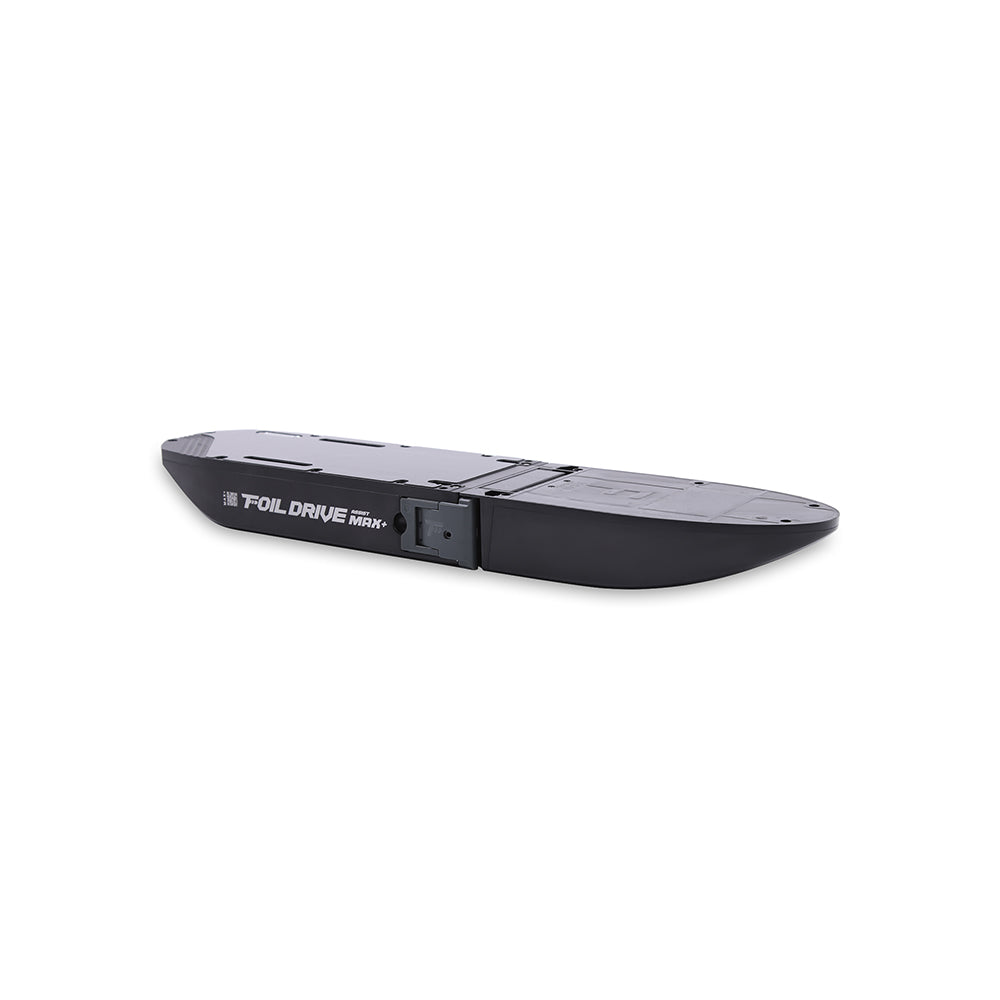

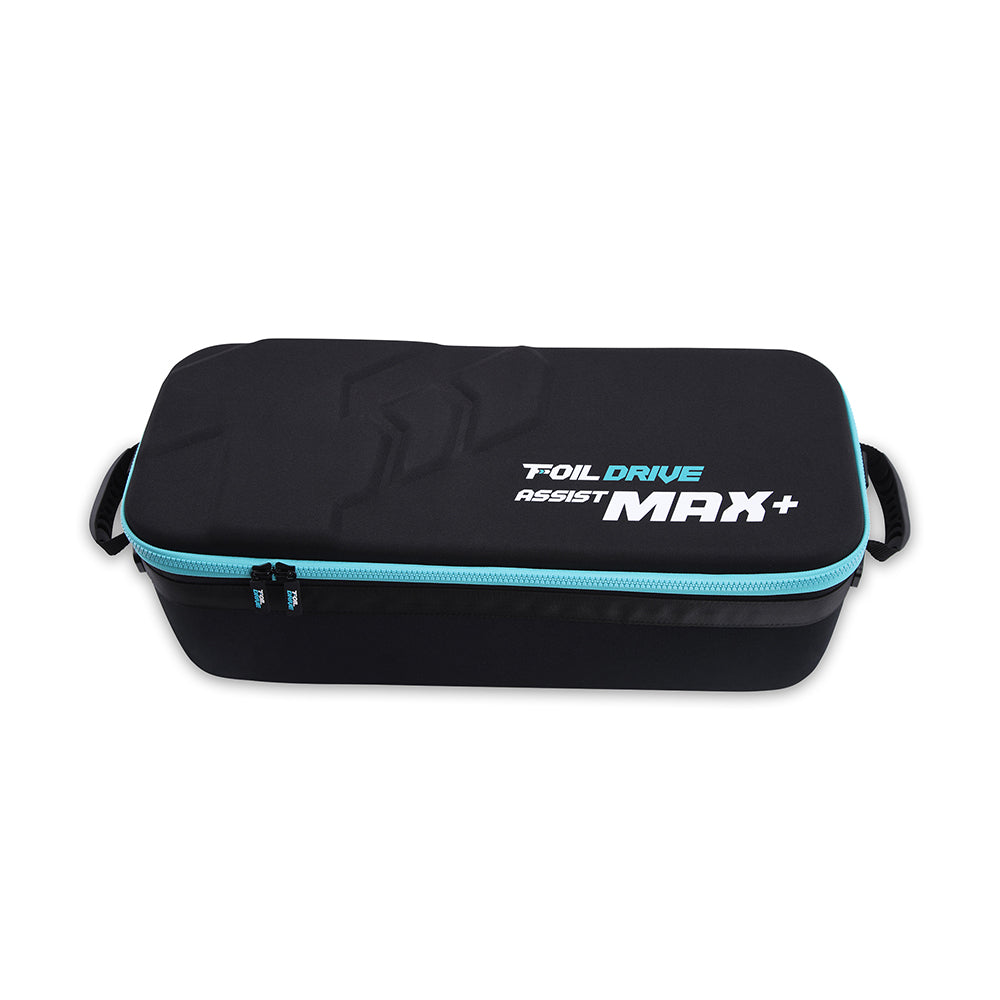

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case
- USB-C Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack

User Manuals

Compatible With
icon

Important: Existing Assist MAX batteries are not compatible with this system.

FM+ 650 Battery

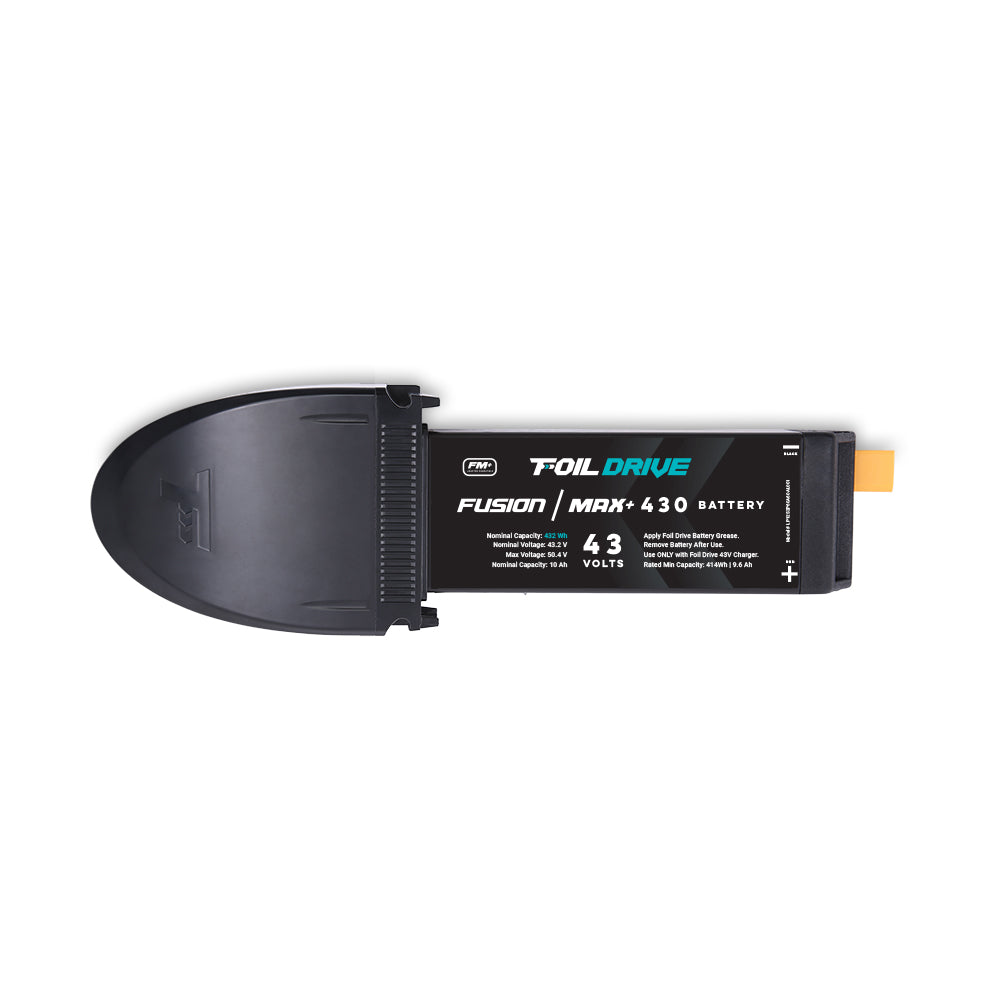

FM+ 430 Battery (Coming Soon)
43V Foil Drive Charger

FM+ Batteries are also compatible with Foil Drive Fusion (requires FM+ Battery Adapter)

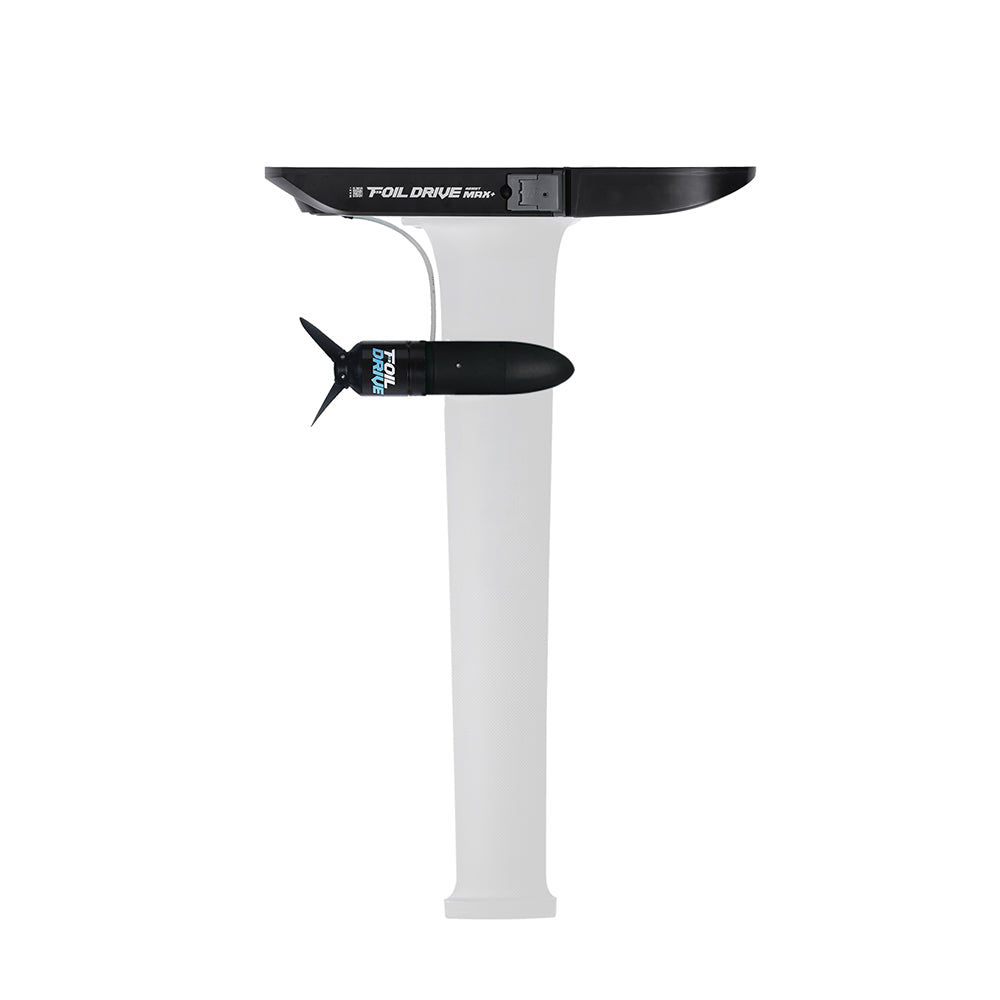

V2 High Power Motor
V2 Standard Motor

V2 Controller
V3 Controller

Foil Drive Assist MAX+

Add to cart
$8,544.00 AUD
$8,544.00 AUD

Who rides the Assist MAX+?

If you're looking for one system that does everything well, Assist MAX+ is built for you. It combines the proven Fusion platform with the ideal balance of power, runtime and weight for every session.

COMPARE SYSTEMS

Surf foil

Higher Wave Count
Less Paddling

DOWNWIND FOIL

More Conditions
Safety and Reliability

Wing foil

More conditions smaller wings

Flat water

Explore and glide lightweight and adaptable

Wake Foil

Wake thieving No boat no problem

The all-rounder, redefined.

FAQS

Frequently asked questions

What is the Assist MAX+?

The Assist MAX+ is our most versatile Foil Drive system, delivering the ideal balance of power, weight, and runtime. Built on our latest Fusion 43V platform, it's designed for riders who want one system that performs across a wide range of foiling disciplines.

How does the Assist MAX+ compare to the original Assist MAX?

The Foil Drive Assist MAX+ steps into the generation that Fusion has already proven on the water. It directly replaces Assist MAX, bringing increased power, a tilt sensor and improved Bluetooth technology, with unlocked runtime from the new FM+ battery range

While the technology has advanced, the philosophy remains the same. The Assist MAX+ is still designed for riders who want the perfect balance of power, weight, and runtime across a wide range of foiling disciplines. The new FM+ battery family also gives you the flexibility to choose between longer runtime or a lighter setup as new battery options become available.

How does the Assist MAX+ compare to Fusion?

The Assist MAX+ is optimised for balance, offering an excellent mix of power, weight, and runtime.

Fusion is built for riders who want maximum thrust and the longest possible sessions. It delivers our highest performance but comes with additional size and weight.

Are my current 40V Assist MAX batteries compatible?

No. The Assist MAX+ uses our new 43V battery platform and is only compatible with the latest FM+ battery range.

Can I share batteries between Assist MAX+ and Fusion?

Yes. The new FM+ battery range is compatible across both Assist MAX+ and Fusion. Fusion requires the FM+ Battery Adaptor, while the Assist MAX+ accepts the batteries directly.

Can I try the Assist MAX+ before I buy?

Absolutely. Visit one of our authorised Foil Drive dealers or attend a demo event to experience the Assist MAX+ on the water before making your decision.

Your board, our kit: endless fun

See how it works

Step 1

Choose your kit


Step 2

Choose your battery


Step 3

Choose your motor
