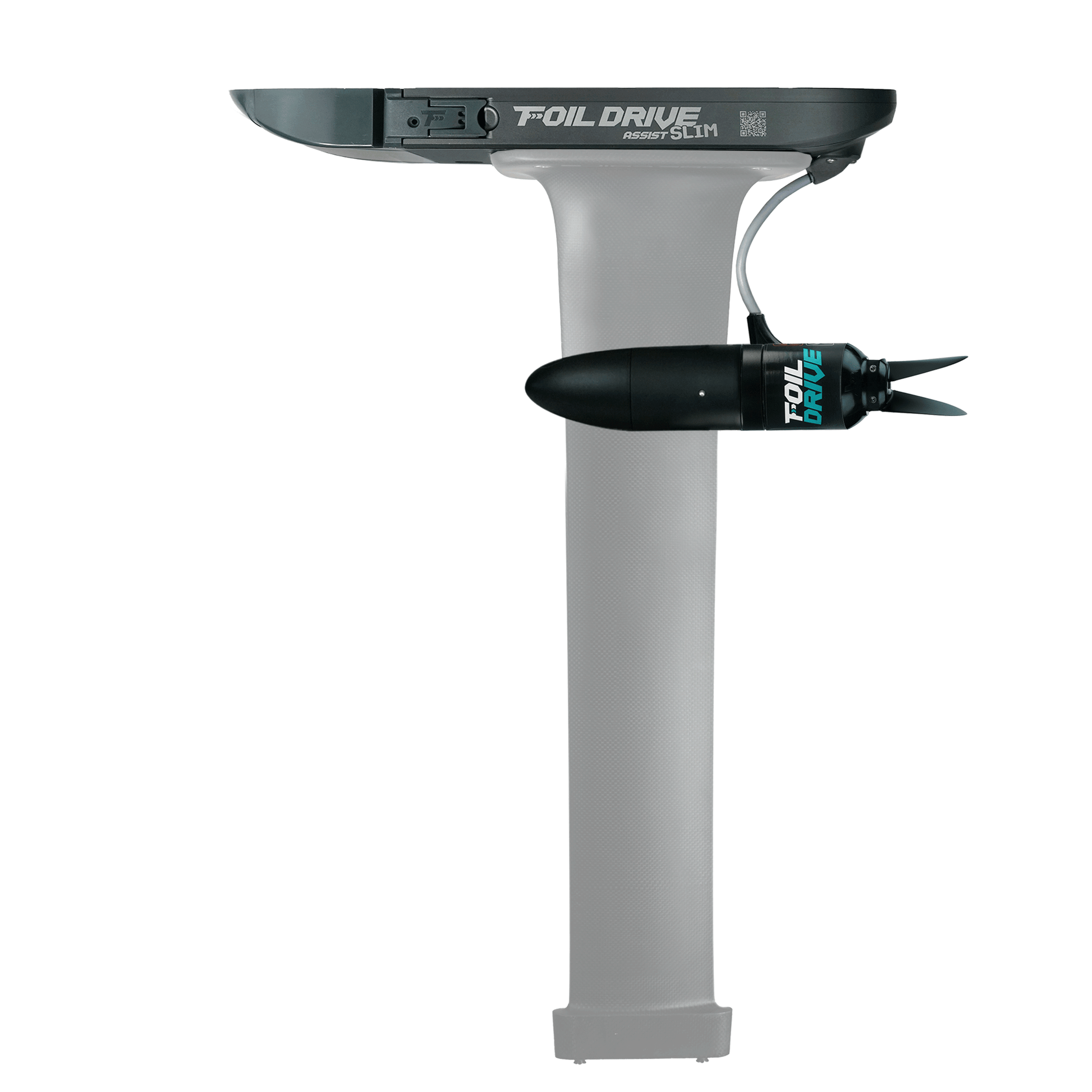

Foil Drive Assist Slim

FD103/105/105/235/128-1

The Assist Slim is the lightest, performance-focused model designed to preserve the weightless and natural feel of foiling while still providing plenty of thrust and runtime when used efficiently.

Built for riders who prioritize responsiveness, agility, pumping, and minimal drag, the Slim excels in short, powerful bursts to get on foil before transitioning to pure glide. It offers the same peak power as the Assist MAX in a thinner, more compact system. Ideal for experienced riders who value balance, light weight, and reactive carving in surf, wake, windswell, and flatwater.

Choose Your Battery View Battery guide

Slim Performance X 2

Slim Endurance (28v charger not included)

Slim Travel

Choose Your Motor View Motor guide

High Power v2

Standard v2

Choose Your AC Power Lead

AU

US

EU

UK

$6,600.00

(includes local duties & taxes)

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 166-241Wh
Max Thrust: 26.5kg / 58.4lbs
Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
Dimensions with Battery: L510x W125 x H35mm
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

What’s Included

icon

*Choice of Motor System*

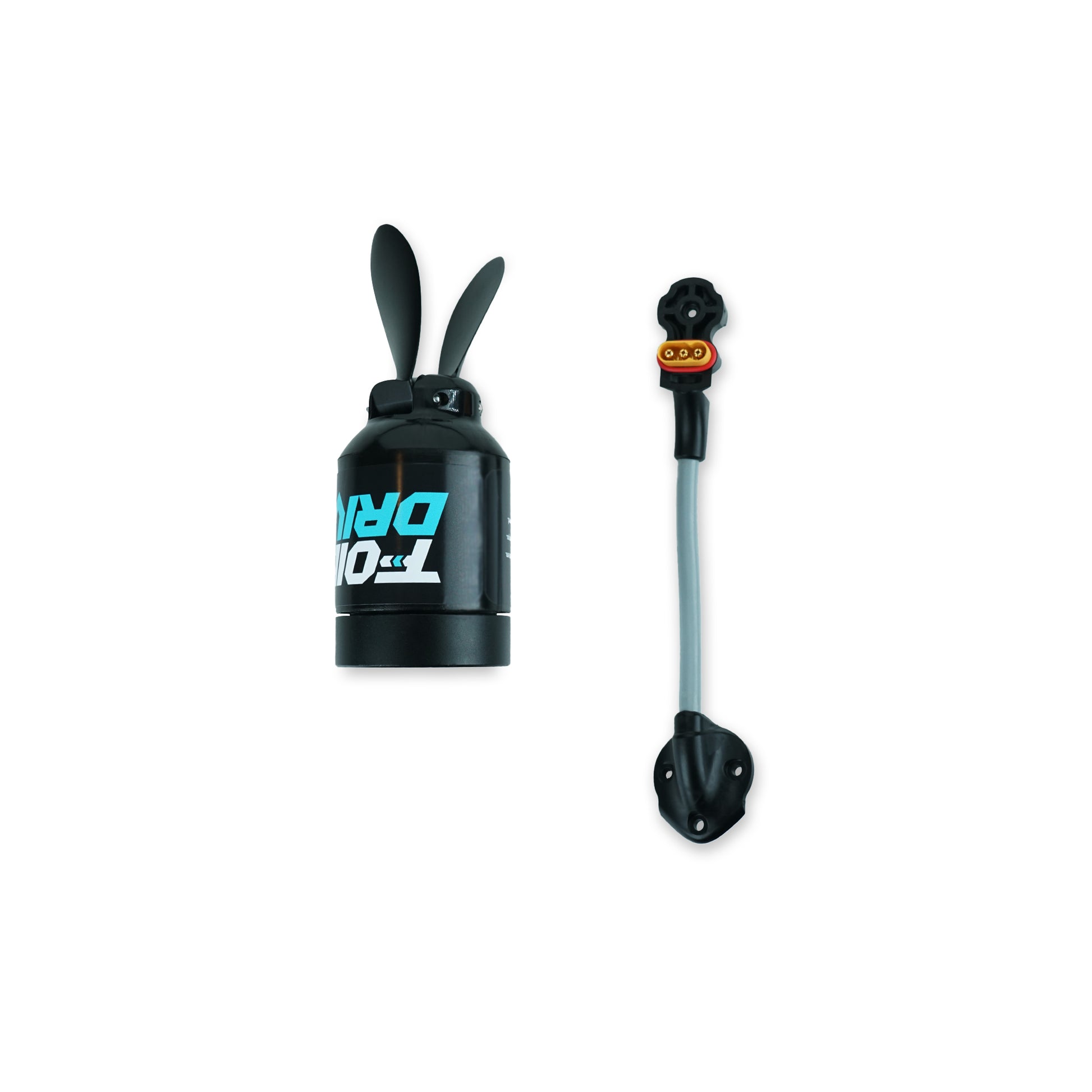

- Complete High Power Motor w/ 20cm Cable
- Complete Standard Motor w/ 20cm Cable

*Choice of Charger AC Lead*
- US Plug Type
- AU Plug Type
- EU Plug Type
- UK Plug Type

*Choice of Battery*

___

Foil Drive Assist Slim

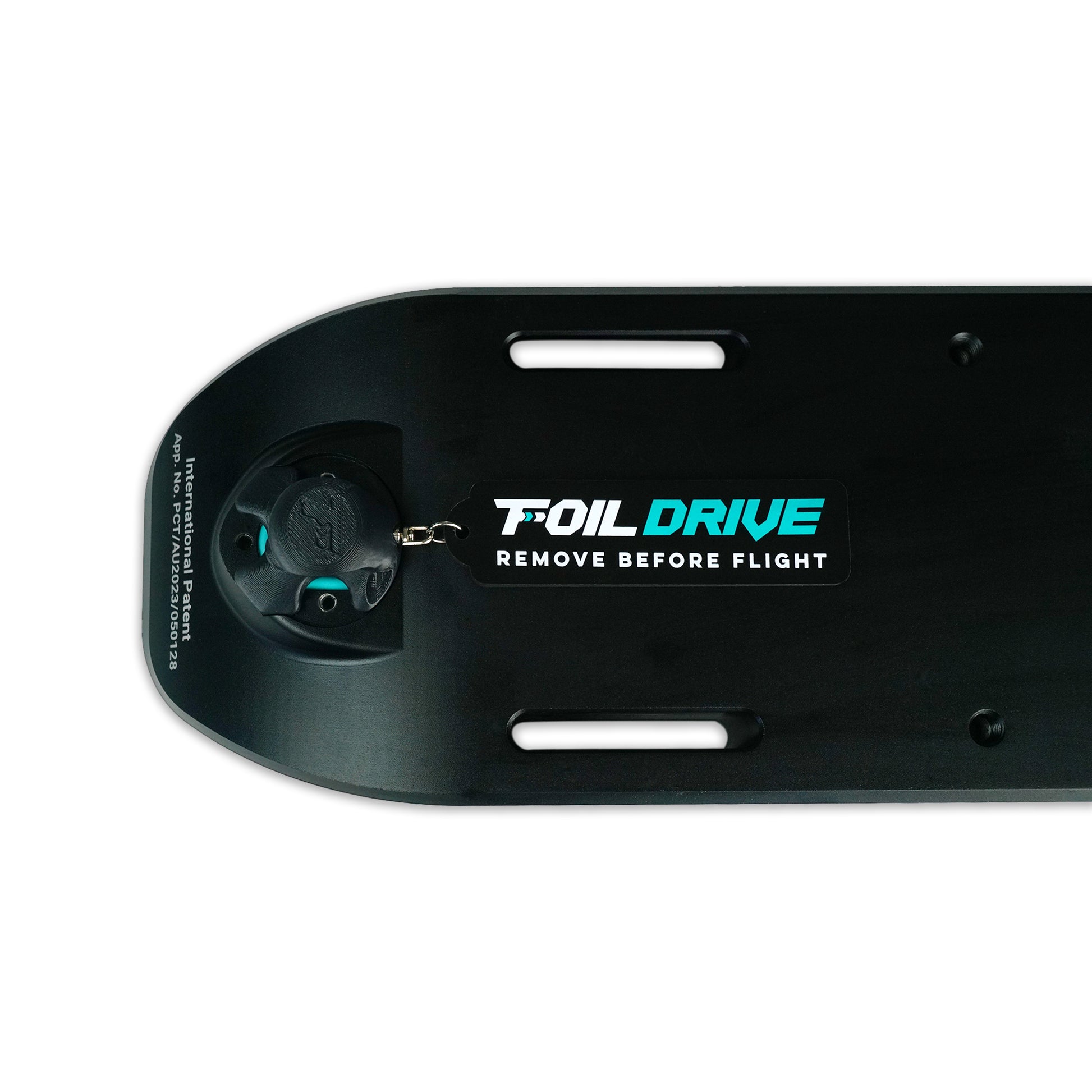

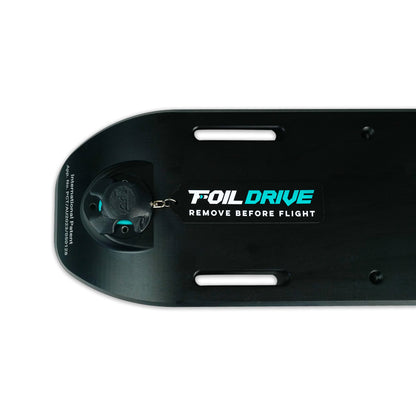

Motor Plug Protector with Keychain
40v Standard Foil Drive Charger 4amp
Nose Cone C
Nose Cone D
Universal Motor Pod - Rear
Universal Motor Pod - Short Nose
Universal Motor Pod - Long Nose
Universal Motor Pod Keys

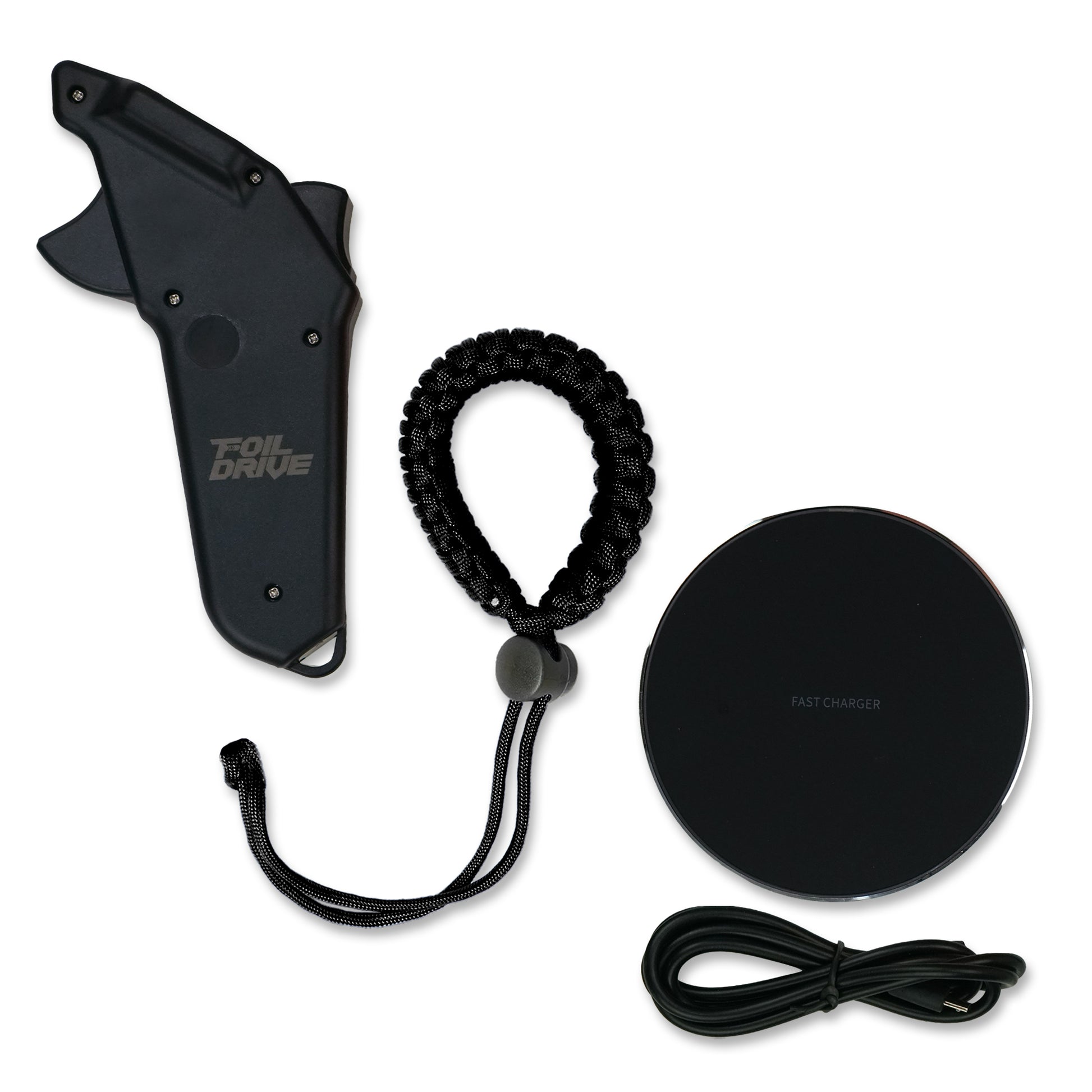

V3 Wireless Throttle Controller
Controller Wireless Charge Pad and Micro USB Cable
Controller Wrist Strap

2x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
4x M8 Assist Slim Mast Plate Bolts 60mm
4x M6 Assist Slim Mast Plate Bolts 60mm

Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

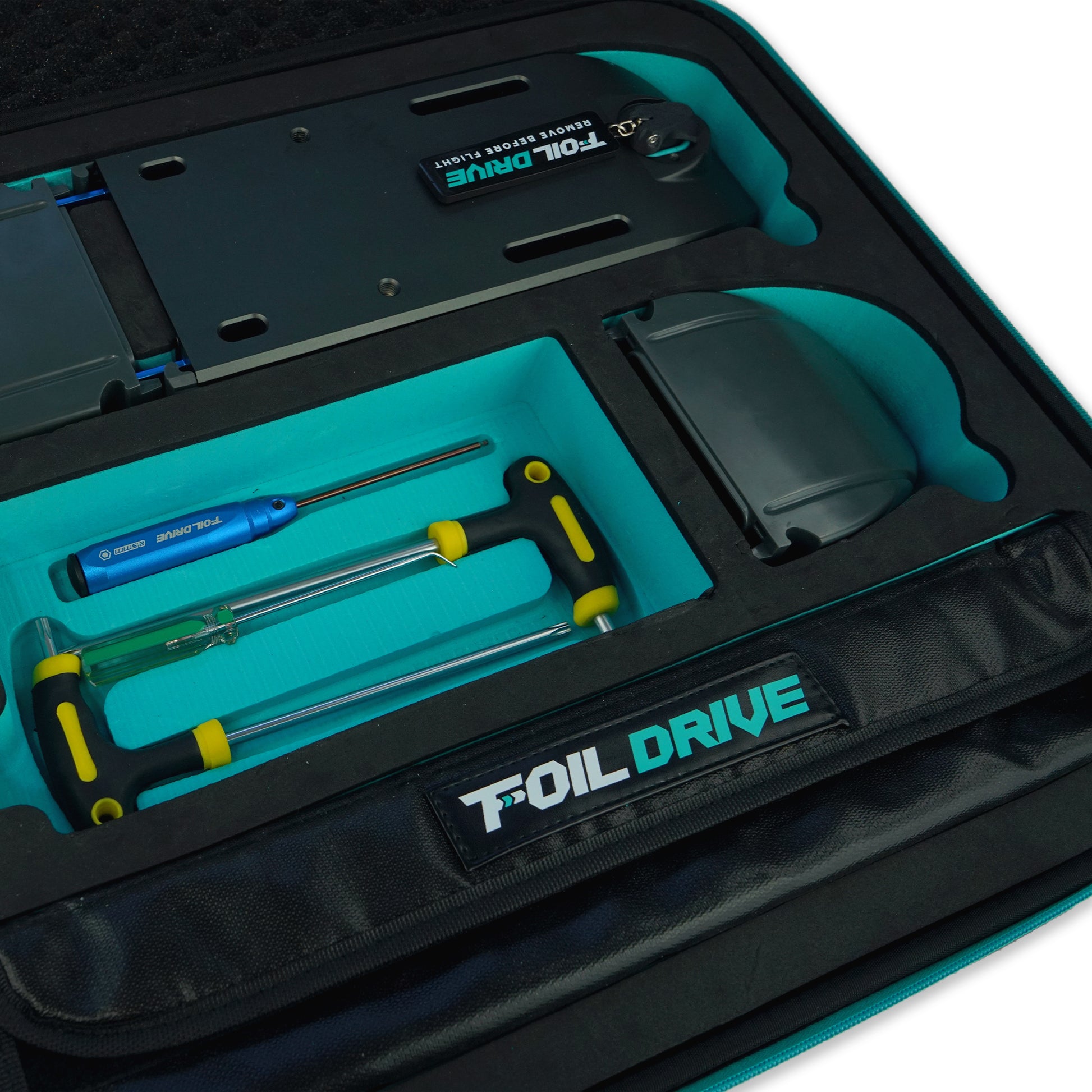

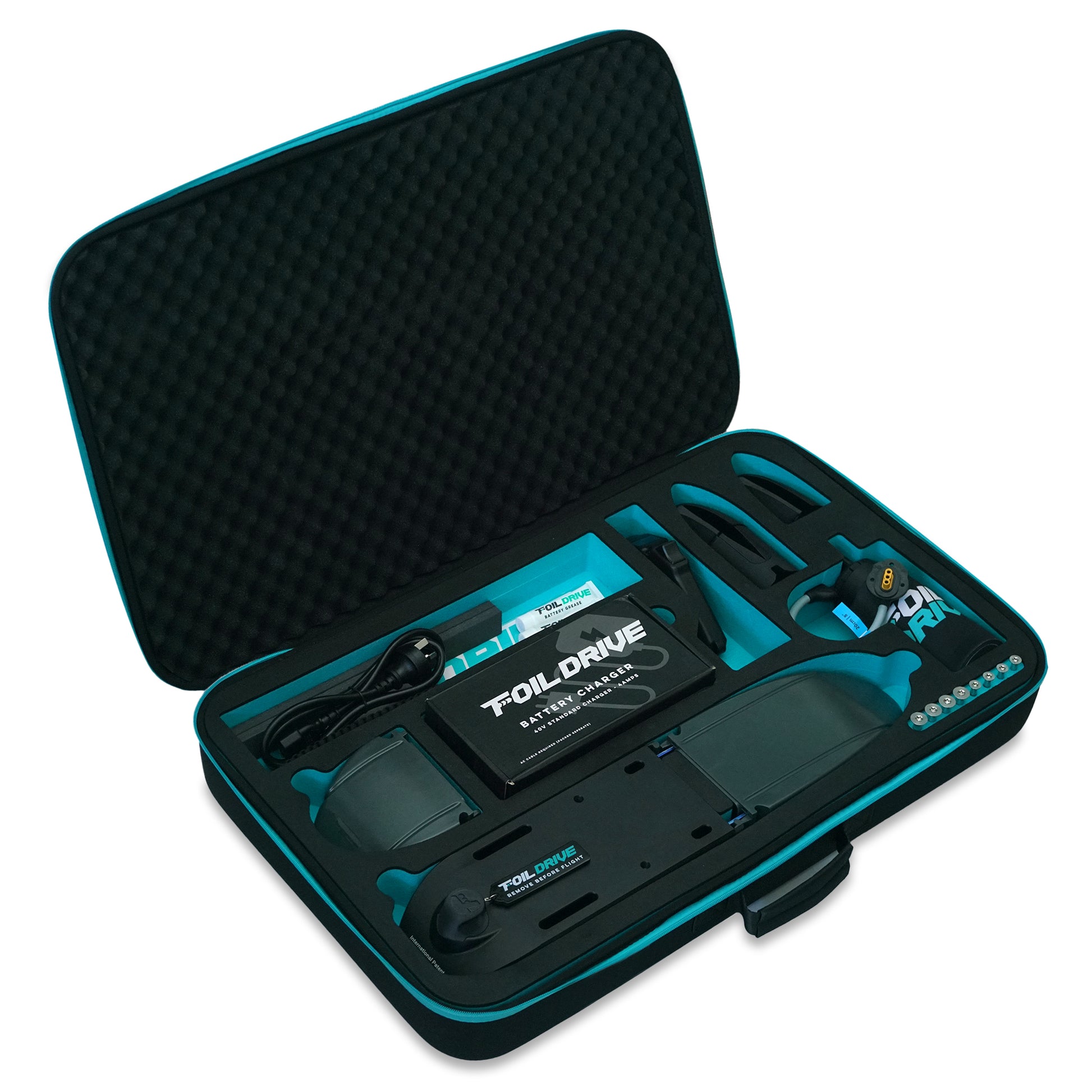

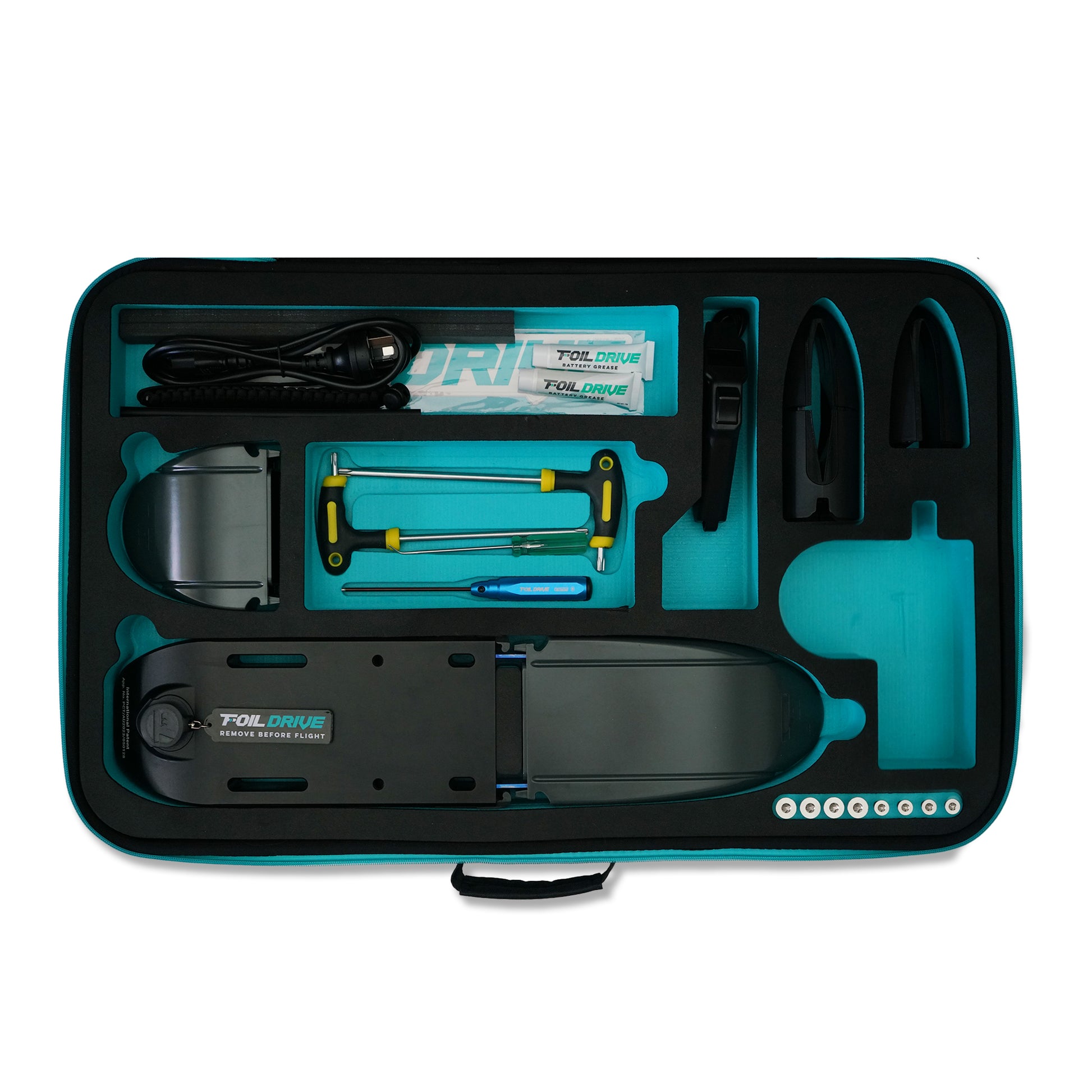

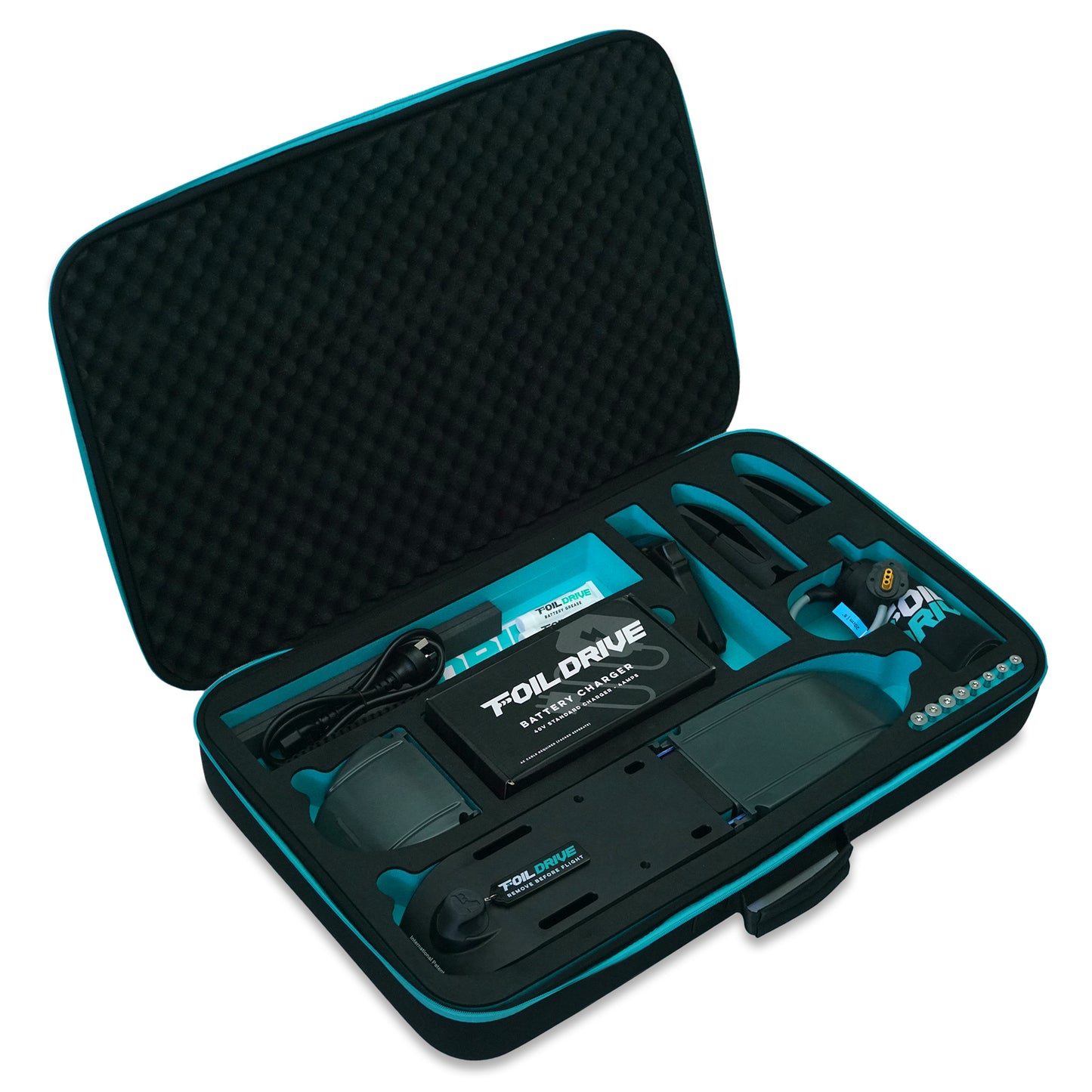

Foil Drive Gen2 Carry Case

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

Compatible With

icon

Assist Slim
Slim Performance Battery
Slim Endurance Battery
Slim Travel Battery
28 OR 40 Volt Charger (Depending on Battery)
