Shop Assist Max

Max Thrust: 27.5kg (60.6lbs)

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

Total Install Weight: 4.8-5.8kg (10.5-12.7lbs)

Dimensions with Long A Nose Cone: L525 x W125 x H50mm

Shop Assist Max

Foil Drive Assist MAX on DC Foil Boards and Project Cedrus Mast - Photographer Shannon Stent Larry Foiler

Who rides the Assist MAX?

It doesn't matter if your surfing, downwind foiling, winging or in flat water, the Assist MAX is for everyone! The MAX system offers longer runtime and is recommended for those wanting a diverse foiling experience.- Learn to Foil- Flatwater Foiling- Surf, Downwind, Wing or Pump with longer runtime- Adaptable into all disciplines- Also recommended for heavier riders

Comparison Podcast

Tech Specs

Gen2 Foil Drive Systems mount between your mast plate and the board. As foil mast tracks are universal, this means it fit's any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface.

Note: Boards with Carbon Tracks may require an additional External Antenna

Overlay

Assist MAX Maximum Thrust:

27.5kg (60.6lbs) with Three Blade Alloy Props

Link

Overlay

Assist MAX Dimensions

Max. Dimensions: L525 x W125 x H50mm
Min. Dimensions: L415 x W125 x H50mm

Link

Overlay

Assist MAX Total Install Weight

4.8-5.8kg (10.5-12.7lbs) depending on battery

Link

Overlay

Assist MAX Voltage & Runtime

Operating Voltage: 40V
Runtime (Generalised): 40min-4hrs depending on use case, battery and other variables.

Link

Overlay

Assist MAX Battery

Recharge Time: Appx. 2-3.5hrs (Power Battery)
Batteries: IP68 rated dust and water resistant.

Link

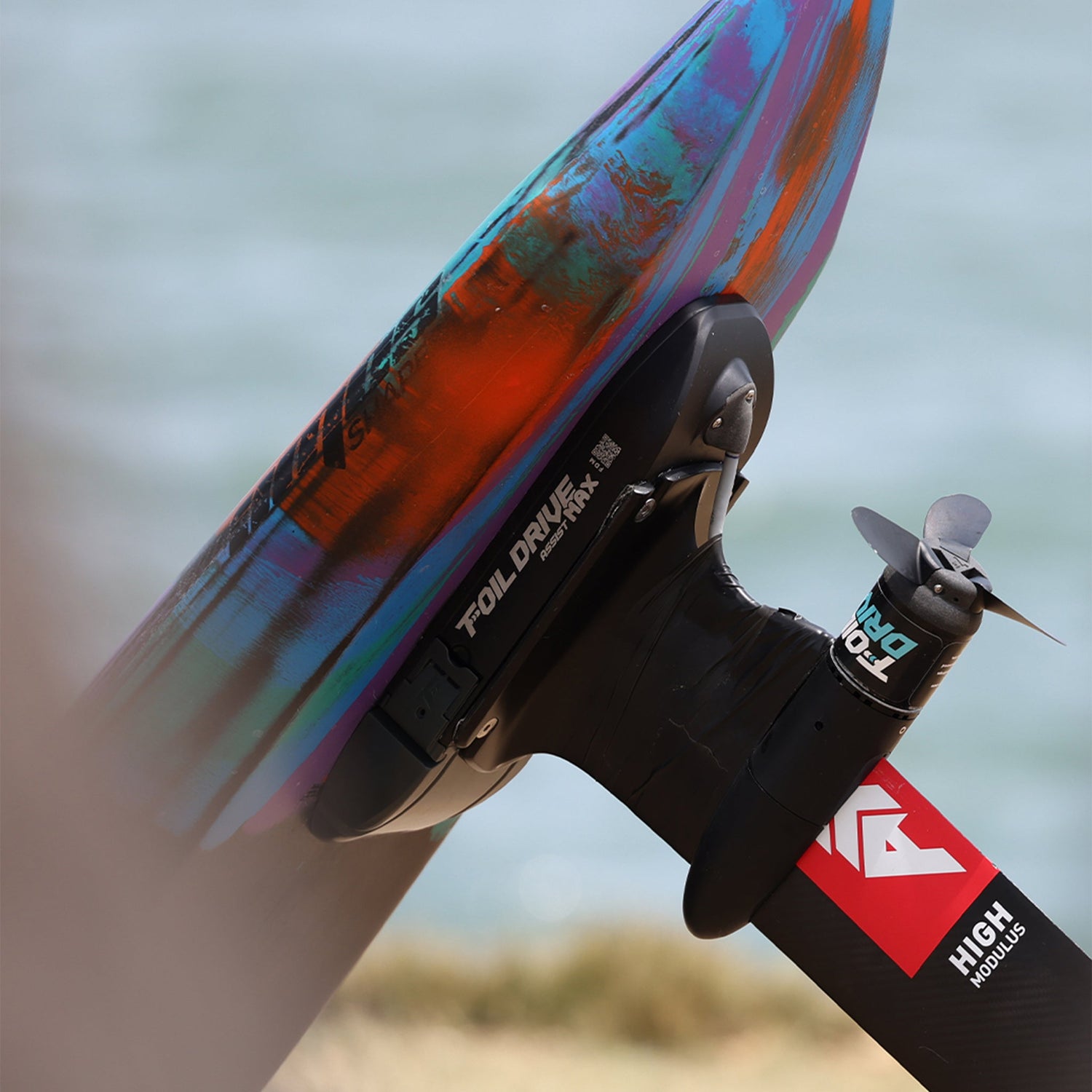

Install on any Foil Board & Mast

Gen2 Foil Drive Systems mount between your mast plate and the board. As foil mast tracks are universal, this means it fit's any board! Simply use the provided locking T nuts and longer mast bolts. Sandwich your Gen2 Foil Drive between your gear for optimal weight distribution and a clean top board surface. Note: Boards with Carbon Tracks may require an additional External Antenna

With three simple screws, the motor plug can be removed, allowing the rider to change their motor height through swapping between different cable lengths.

With options to use your own foil mast or a fully integrated option, there are more ways to tune your setup than ever!

BUNDLE

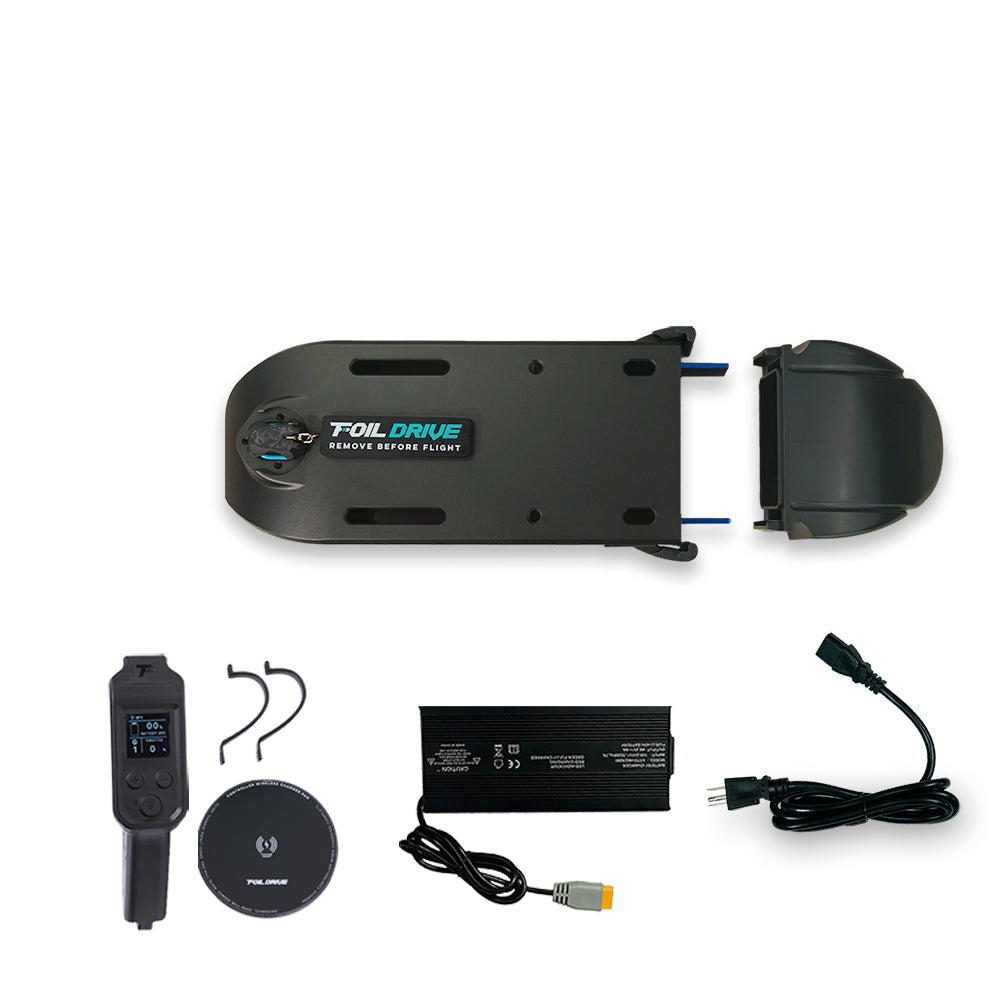

BASE KIT

Foil Drive Assist MAX x AXIS Integrated Mast

BUNDLE

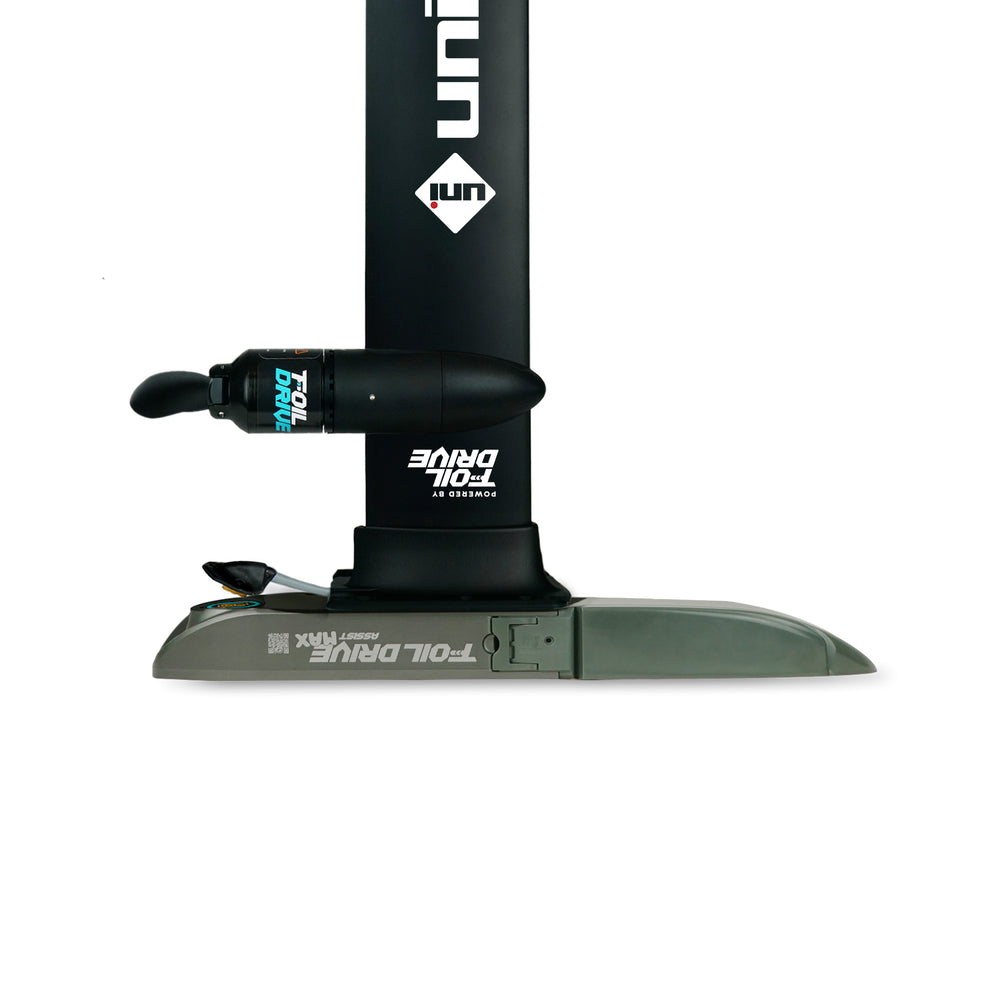

Foil Drive Assist MAX x Unifoil Integrated Mast

BUNDLE

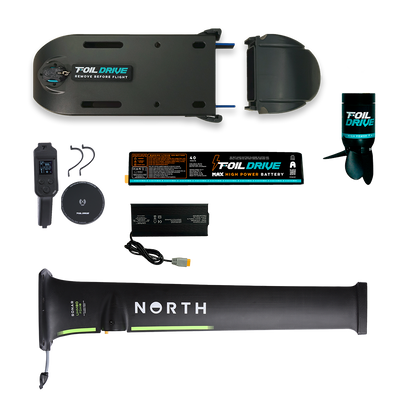

Foil Drive Assist MAX x NORTH Integrated Mast
