Foil Drive Assist MAX+ x F-ONE Integrated Aluminium Mast Bundle

SKU:

The Foil Drive Assist MAX+ × F-ONE Aluminium Integrated Mast delivers a high-performance, versatile setup for kite, surf, wing, SUP and wind foiling, combining the next generation of the Foil Drive Assist MAX+ with a High Power Motor integrated directly into the F-ONE mast.

With the motor fully internal, the setup simplifies installation, reduces drag, and delivers more low-end torque and longer sessions on the water. The sleek, pre-installed integration ensures uninterrupted foiling, whether powered or unpowered, and keeps the lines of your mast clean and professional.

Note: The motor is fixed into position and cannot be removed or changed.

Integrated Mast DOES NOT INCLUDE a F-ONE Titan Foot adaptor, sold separately.

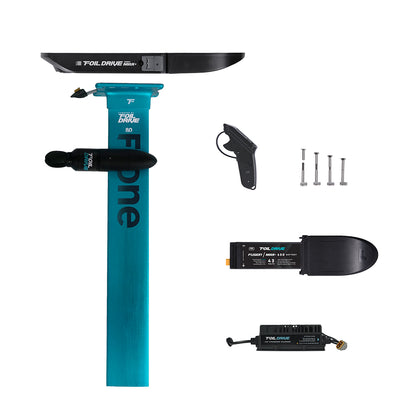

This bundle includes:

Foil Drive Assist MAX+
FM+ 650 Battery
F-ONE x Foil Drive Integrated Mast w/ High Power Motor Installed
Correct M6 Mounting Hardware (FD173-2 + FD142) (included automatically for F-ONE compatibility)

Included Battery View Battery guide

FM+ 650

Choose Your Motor Height View Motor guide

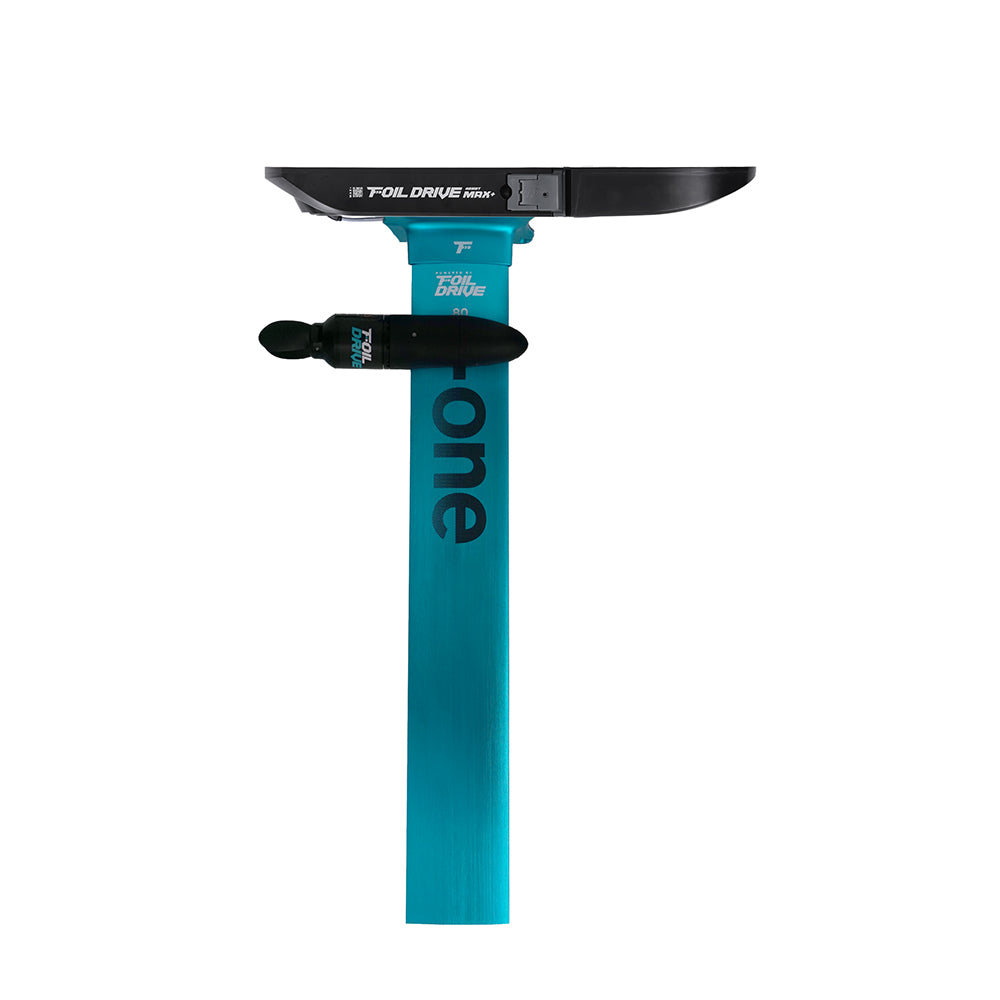

15cm / 6"

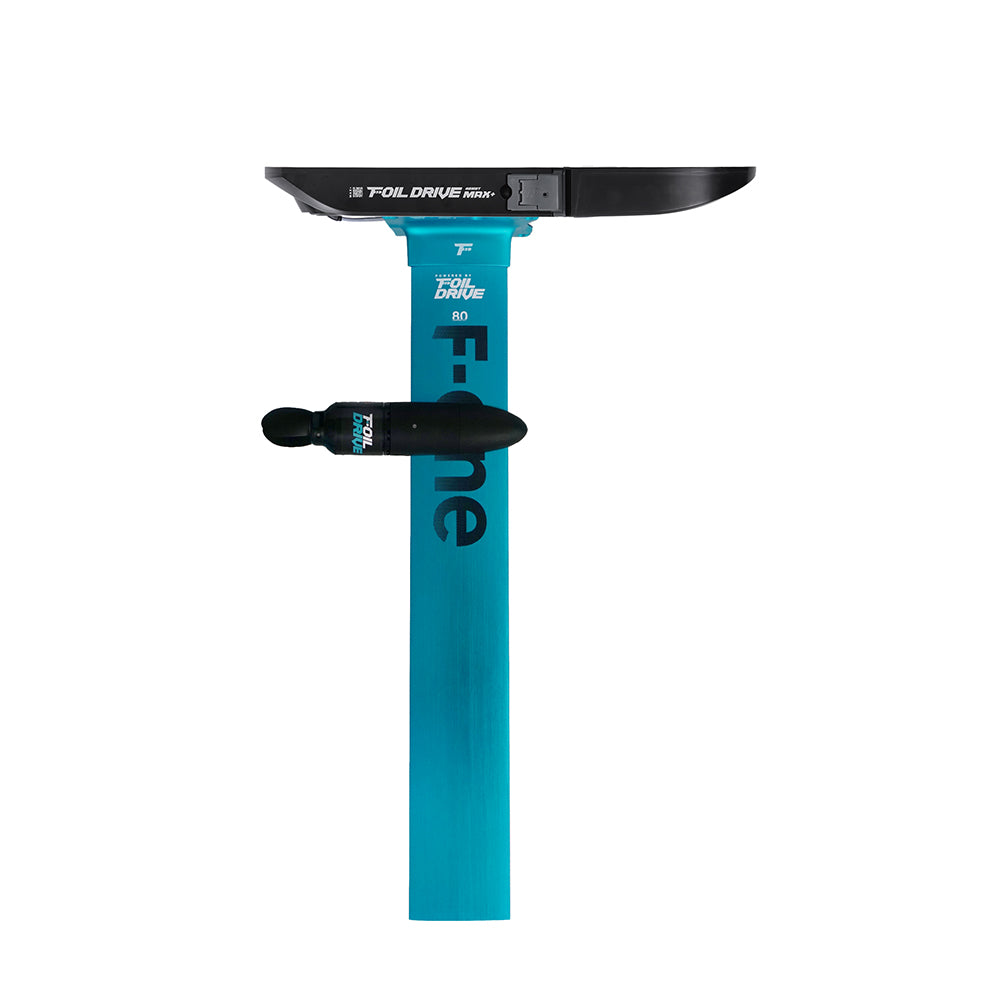

25cm / 10"

Choose Your AC Power Lead

AU

US

EU

UK

$9,698.00 AUD

(includes local duties & taxes)

Tech Specs

icon

System Voltage: 43.2V
Battery Capacity Range: 648Wh
Max Thrust: 35.5kg
Minimum Install Weight*: 6.71 kg
Dimensions with Battery: 540x125x55mm
Peak Power (Boost): 2150W
Sustained Power: 1750W
Peak Horsepower: 2.88hp
Sustained Horsepower: 2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance
Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

What’s Included

icon

FM+ 650 Battery
F-ONE x Foil Drive Integrated Mast w/ High Power Motor Installed at chosen height
Correct M6 Mounting Hardware (FD173-2 + FD142) (included automatically for F-ONE compatibility)

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case
- USB-C Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack

User Manuals

Compatible With

icon

Assist MAX+
F-ONE Foils
