Assist MAX (Base Kit)

Assist MAX (Base Kit)

100/128-1

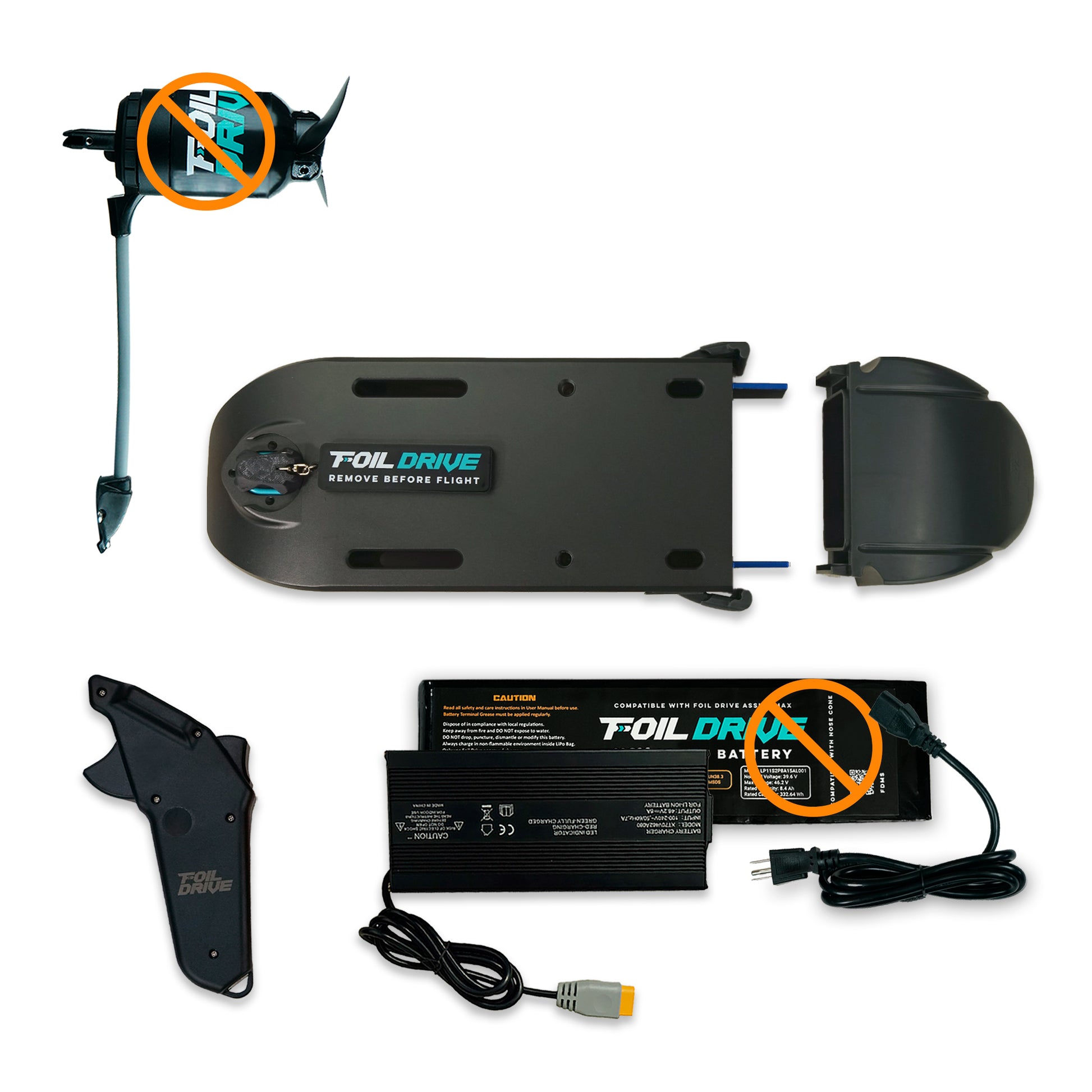

This is a Base Kit of a Assist MAX only, with no motor or battery included.

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

If you are looking for an integrated mast with your Assist MAX see these listings

The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!

NB: Boards with Carbon Tracks may experience connectivity issues. See our External Antenna

DOES NOT INCLUDE BATTERY

DOES NOT INCLUDE A MOTOR





Choose Your AC Lead
$5,200.00
$5,200.00

(includes local duties & taxes)
Tech Specs
icon

Max Thrust: 27.5kg (60.6lbs)

Weight Range: 3.4-4.5kg (7.4-9.9lbs)

Dimensions with Long A Nose Cone: L525 x W125 x H50mm

Dimensions with Short B Nose Cone: L415 x W250xH50mm

App compatibility: Foil Drive app, Android and IOS

What’s Included
icon

BASE KIT ONLY!!!
DOES NOT INCLUDE
*Choice of Battery with Lipo Bag*
*Choice of Gen2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler*
UNIVERSAL MAST ADAPTOR NOW INCLUDED!

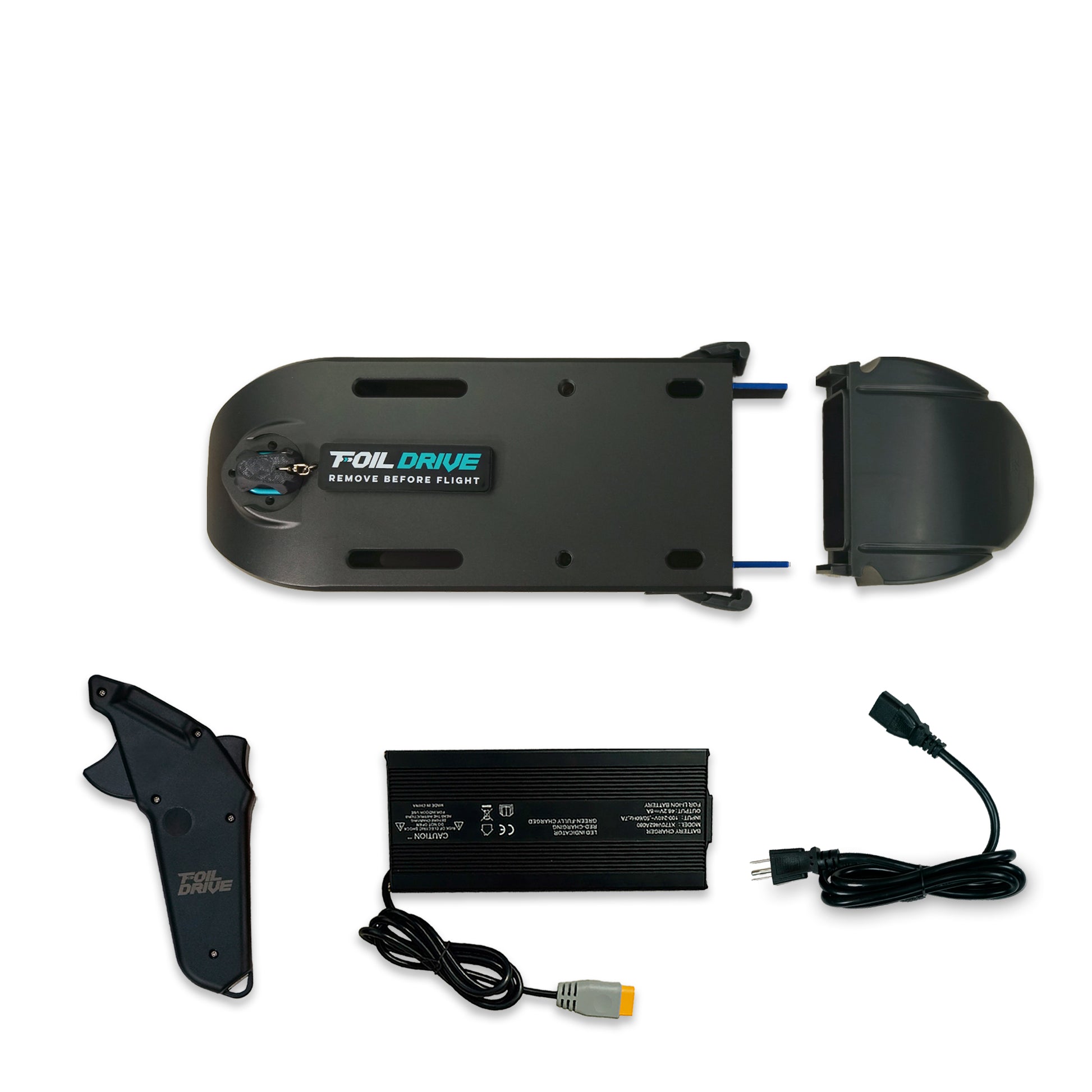

INCLUDED IN BASE KIT IS:

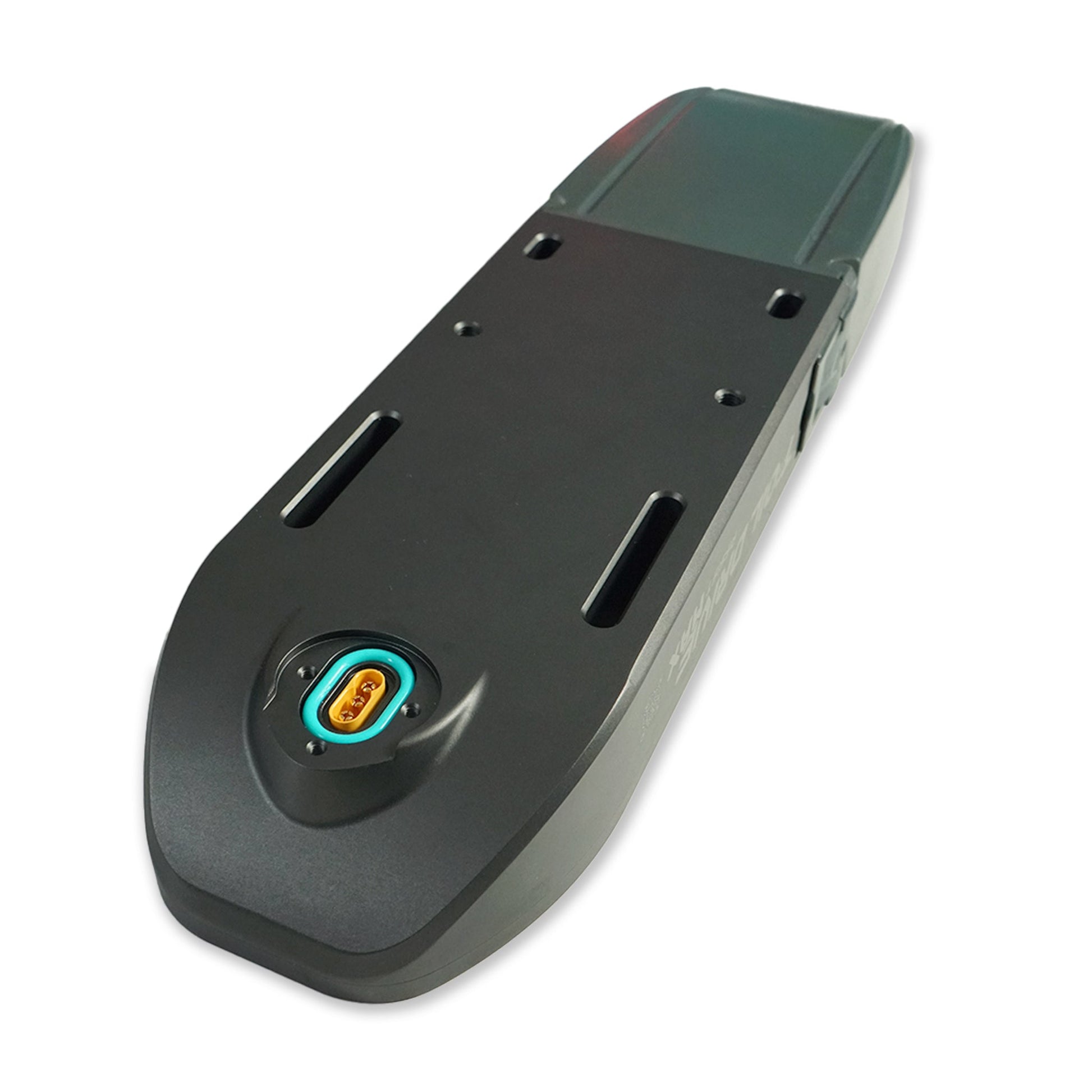

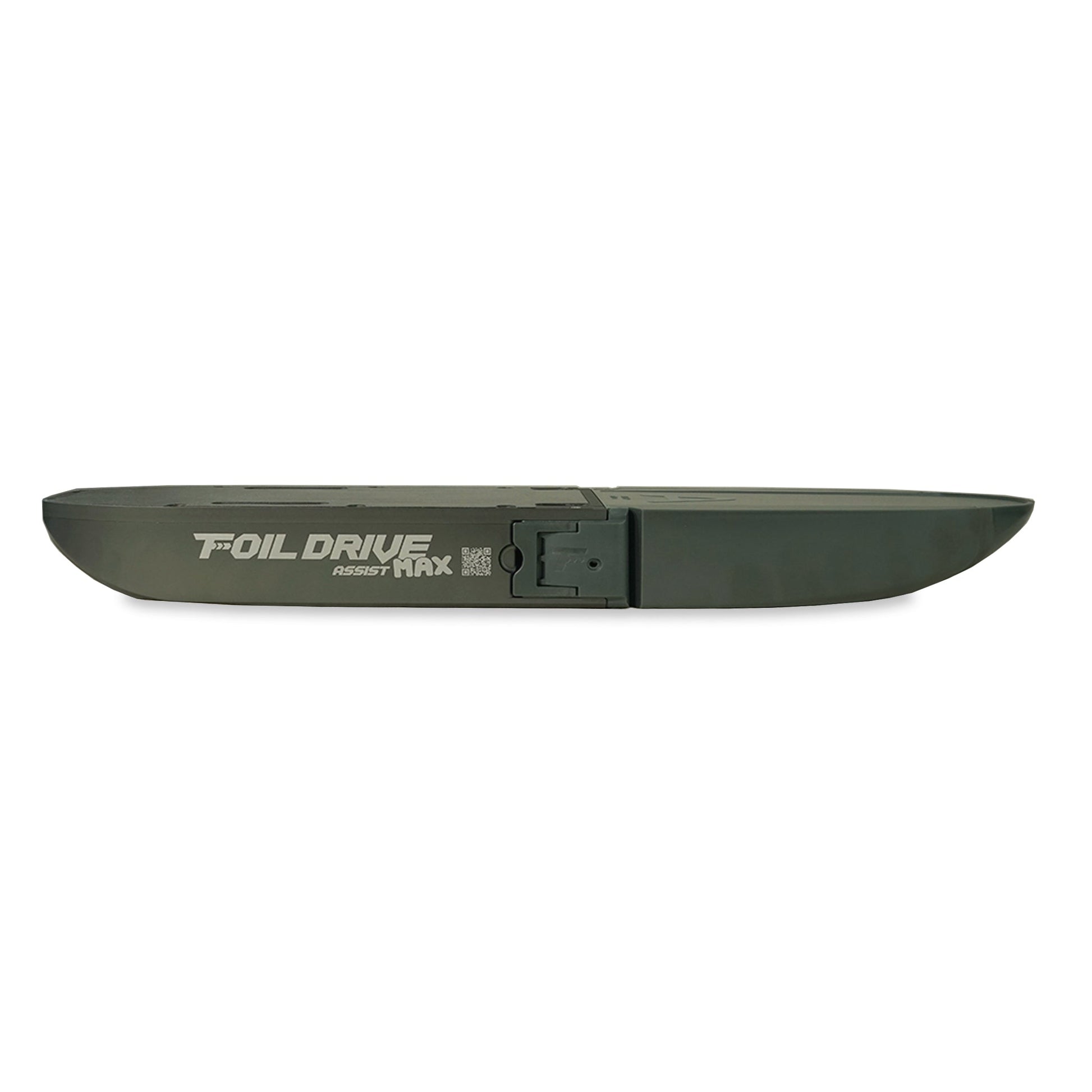

Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain

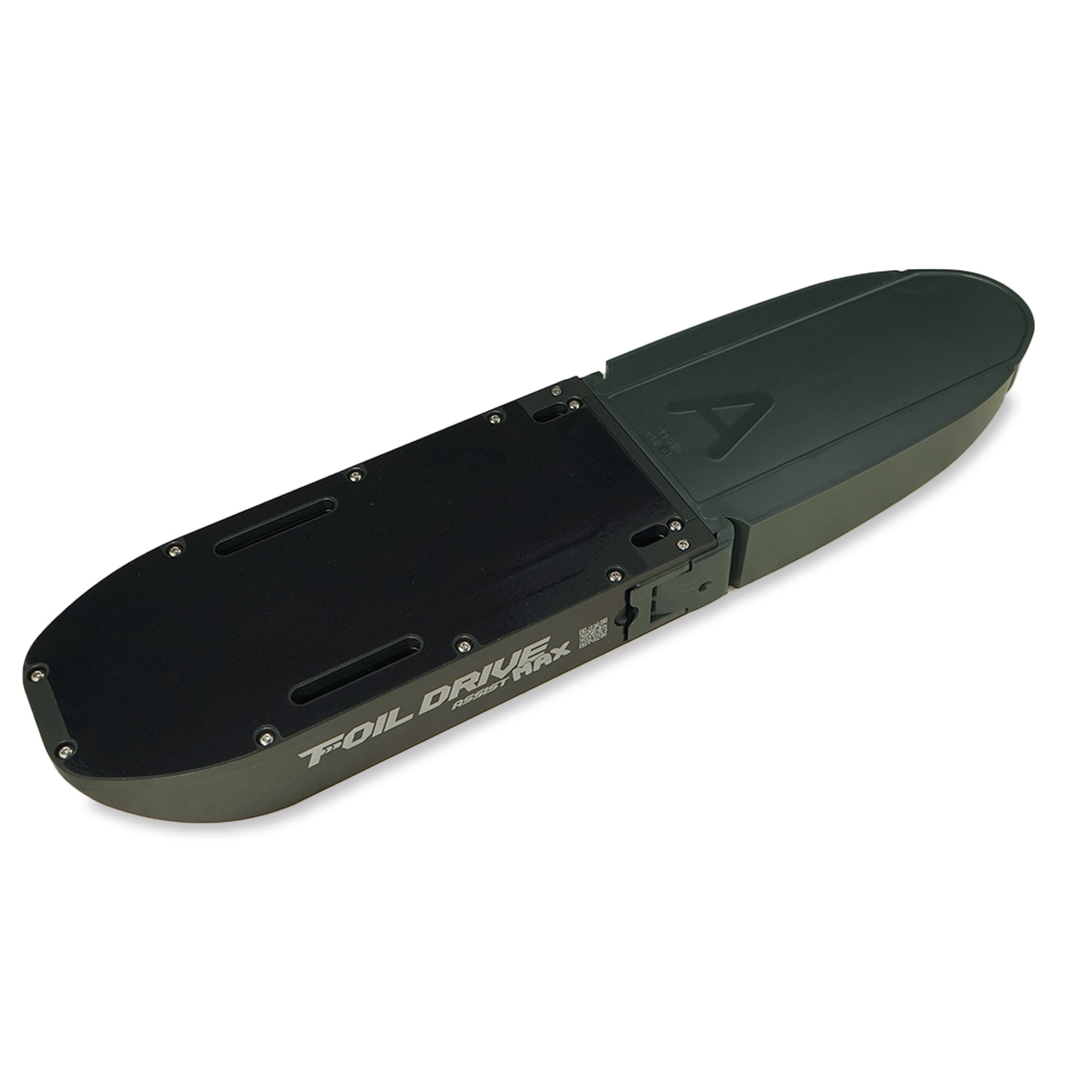

Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

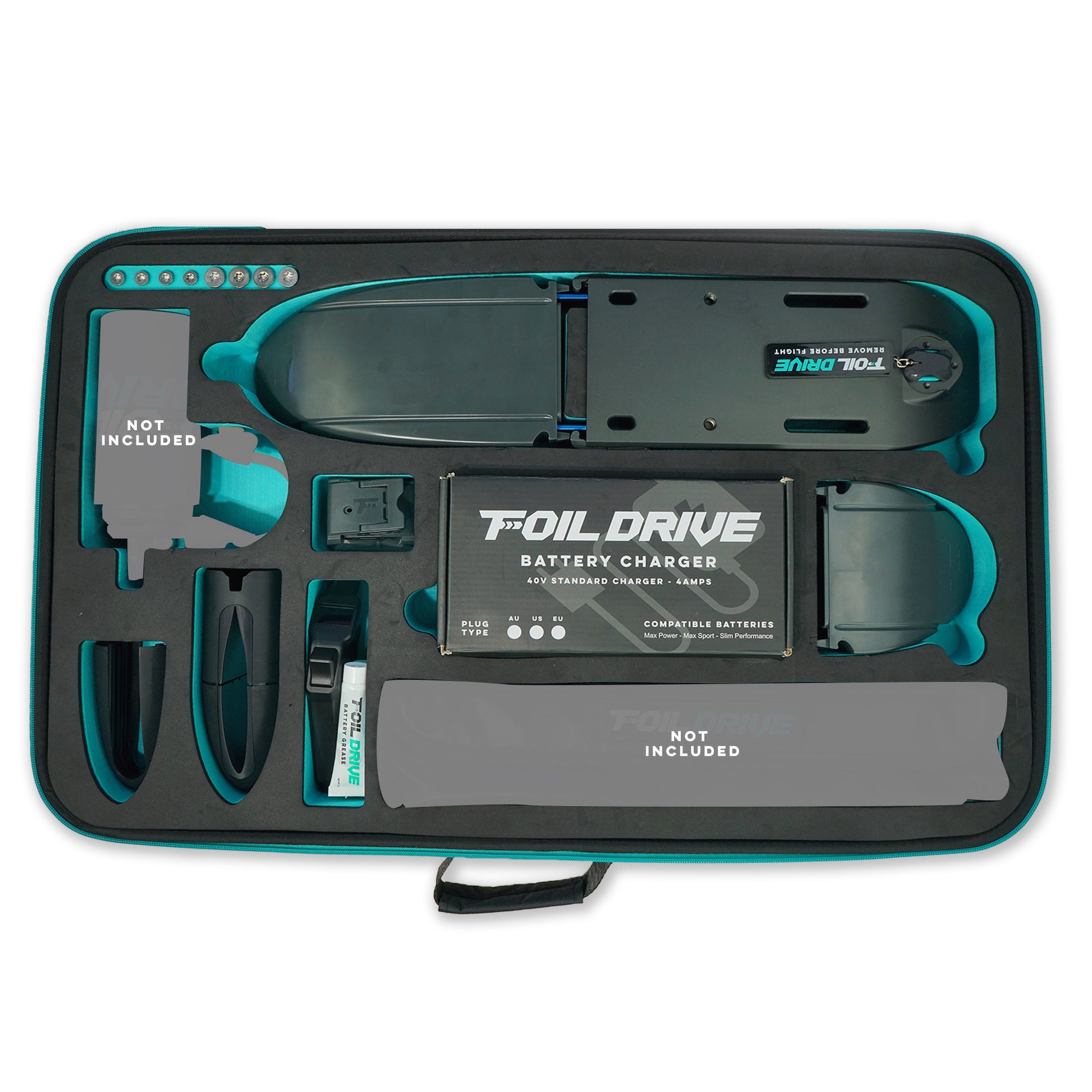

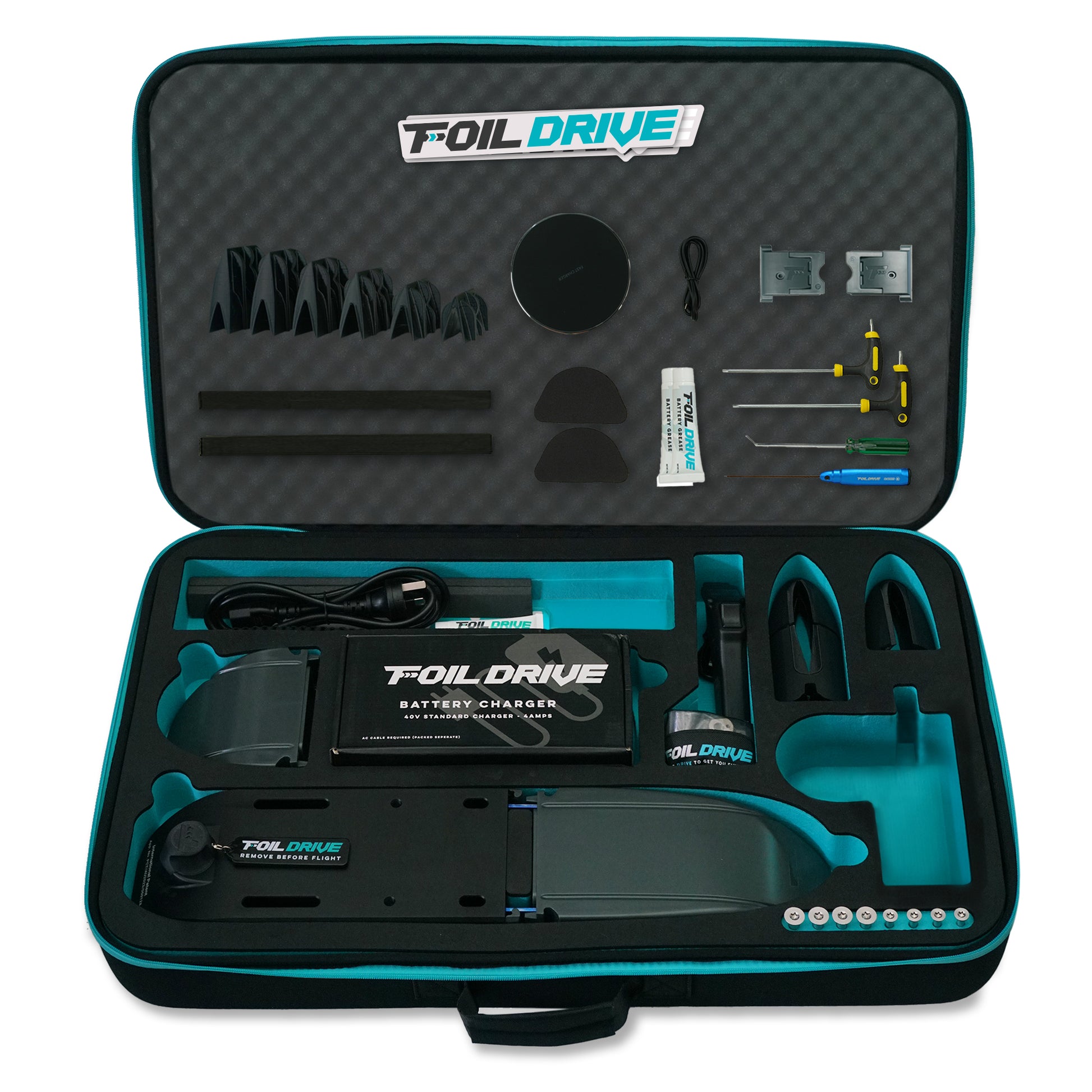

Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
- 2x M3 x 16mm Latch Locking Bolts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 2x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

Compatible With
icon

MAX Power Battery
MAX Sport Battery
Universal Motor Systems for Gen2
Project Cedrus Integrated Mast for Gen2
AXIS Integrated Mast for Gen2

Assist MAX (Base Kit)

Add to cart
$5,200.00
$5,200.00

Customer Reviews

Based on 4 reviews
50%
(2)
50%
(2)
0%
(0)
0%
(0)
0%
(0)
S
Steven Anderson

Amazing power, great service

A
Anonymous

It's need battery cheker

K
Ken Samson

I really like it compare to the Assist +. Room for improvements:i would like a remote that leaves my palm open to better hold onto my board and/or paddle. You could even have a remote specifically for paddles.
With the immersion of trench boards, a rear battery access would be nice.
Better RF for carbon boards without the need for additional accessories.
Would be cool if you had a watch app that could link with the base and collect ride session data. Or even act as a back up secondary remote for emergency.
Add an accelerometer to also add data to sessions. Maybe can be used to help improve pump technique.
Try building battery packs that are already in a hard sealed case in the shape of the nose cone. That way you’re not dealing with different nose cones and it’s a simpler battery R&I.
