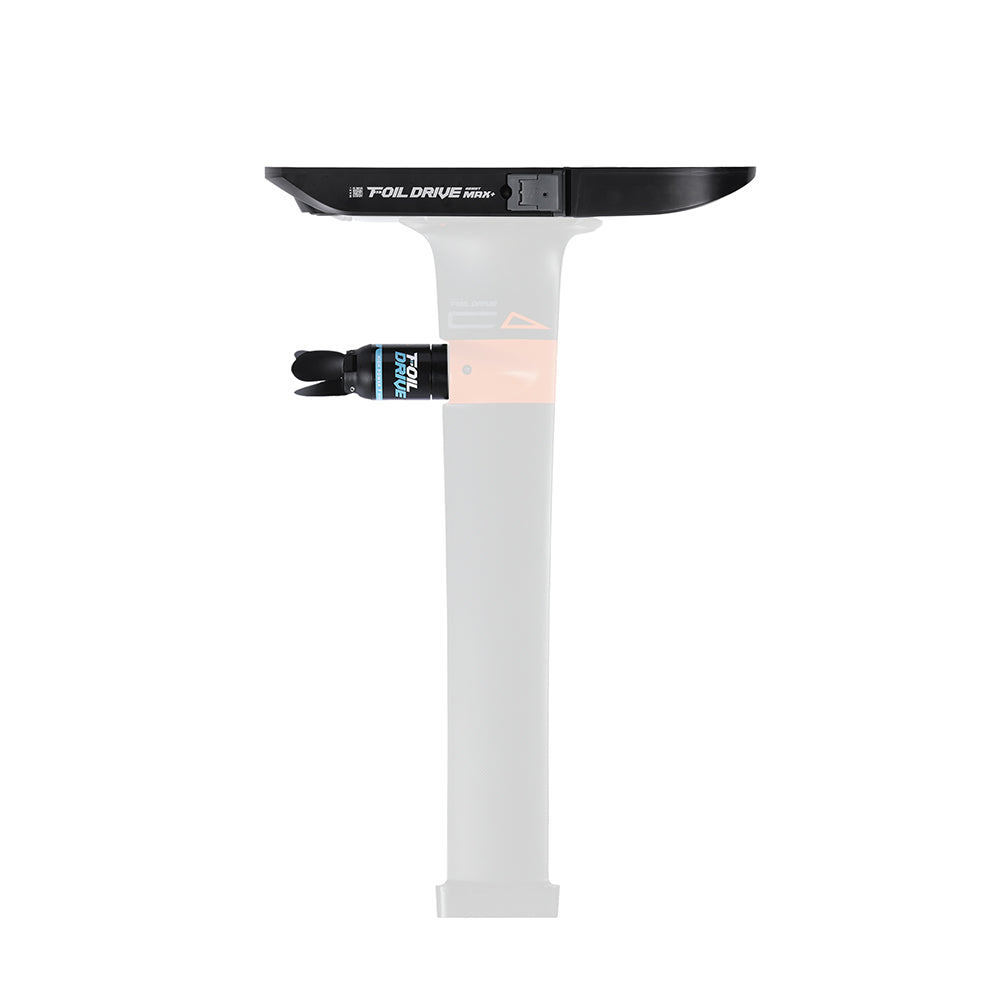

Foil Drive Assist MAX+ x CODE Ultra High Modulus Bundle

SKU:

The Foil Drive Assist MAX+ x CODE Ultra High Modulus Integrated Mast bundle combines the all-round performance of the Assist MAX+ with CODE’s Ultra High Modulus Integrated Mast for a powerful, refined hybrid setup. Delivering an ideal balance of thrust, runtime, and efficiency, this system unlocks longer sessions, reliable flatwater takeoffs, confident upwind and downwind riding, and effortless progression across conditions.

Note: This DOES NOT include a CODE Foils Ultra High Modulus Integrated Mast itself, please see your local CODE dealer or visit their website to purchase the Mast.

Note: Motor Position is fixed and cannot be adjusted

All the required Foil Drive components to go with a CODE Ultra High Modulus Integrated Mast. Please see the full product listings for product details, linked in the copy below.

This is the perfect bundle to suit your Code Integrated Mast and it includes:

AC Lead

AU

US

EU

UK

$8,181.00 AUD

(includes local duties & taxes)

Tech Specs

icon

System Voltage: 43.2V
Battery Capacity Range: 648Wh
Max Thrust: 35.5kg
Minimum Install Weight*: 6.71 kg
Dimensions with Battery: 540x125x55mm
Peak Power (Boost): 2150W
Sustained Power: 1750W
Peak Horsepower: 2.88hp
Sustained Horsepower: 2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance
Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

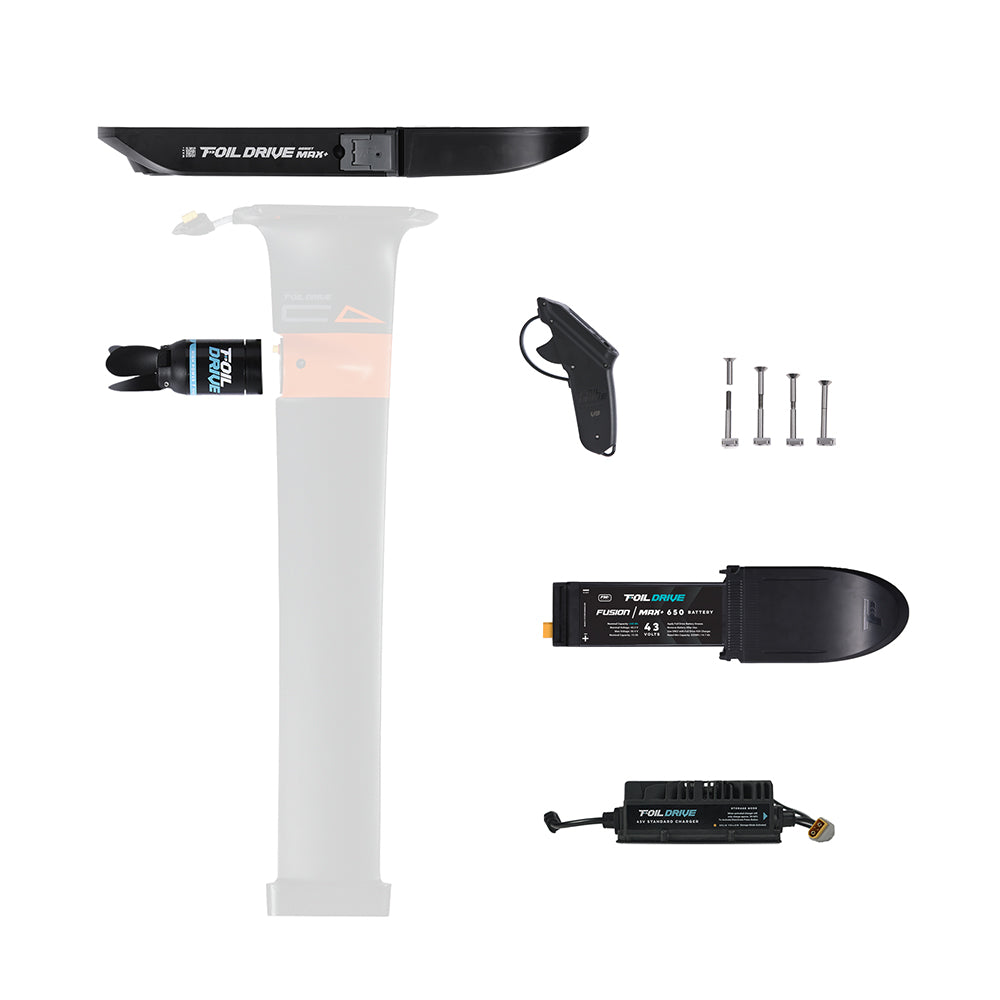

What’s Included

icon

FM+ 650 Battery
Integrated Mast Motor

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case
- USB-C Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack

User Manuals
