Foil Drive Assist MAX+ | NORTH Sonar AF80 Integrated Mast Bundle

SKU:

The Foil Drive Assist MAX+ with NORTH Integration combines the next generation of our most versatile foil assist system with the North Sonar AF80 Integrated Mast and pre-installed High Power Motor.

Built on our proven Gen2.5 platform, the Assist MAX+ delivers more power, improved efficiency and smarter technology while maintaining the balanced ride that made the original Assist MAX a go-to choice for riders across every discipline.

The North Integrated Mast now including the High Power Motor!

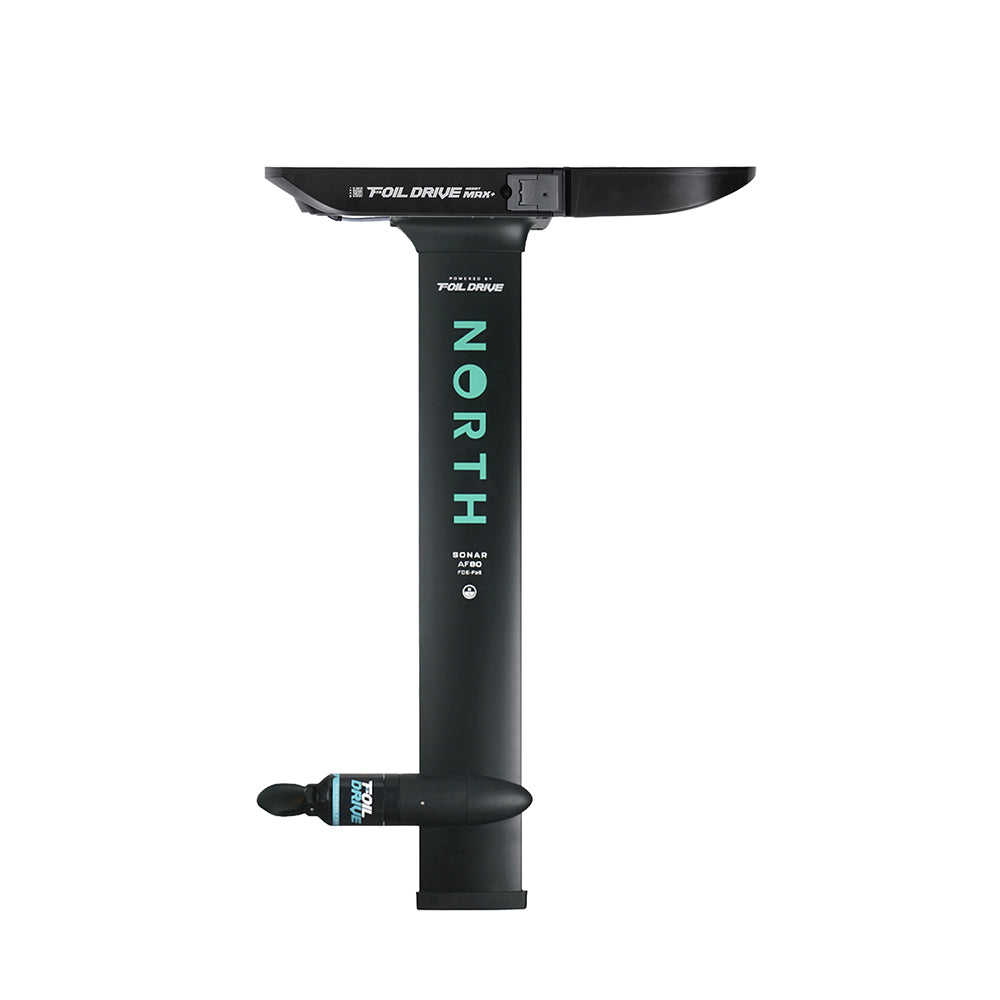

The Efoil Motor Position offers a complete E-Foil experience with the motor positioned near the fuselage, while a 20cm and 15cm motor are positioned as a Foil Assist with the motor closer to the board.

The Integrated Mast simplifies installation and significantly improve ride feeling and efficiency. With the motor wiring fully internal, the motor is less noticeable, both when riding powered and non powered, so you can enjoy uninterrupted foiling plus the benefit of electric assistance.

The North Sonar Mast is a refined aluminium foil (AF) section gives the best balance between light weight and increased strength for higher loads. The Sonar Mast features a unique GeoLock tapered geometry locking system. Engineered for strength and stiffness, GeoLock provides a more effective load-bearing connection between the Mast and Fuselage, locking them together, so they feel like one piece. Screws engage the GeoLock, enabling the load transfer to take place over the full cross-section of the mast profile, allowing for a more efficient load distribution and secure connection that is made to last.

Note: The motor is fixed into position on each mast and cannot be removed or changed.

Included Battery View Battery guide

FM+ 650

Choose Your Motor Height View Motor guide

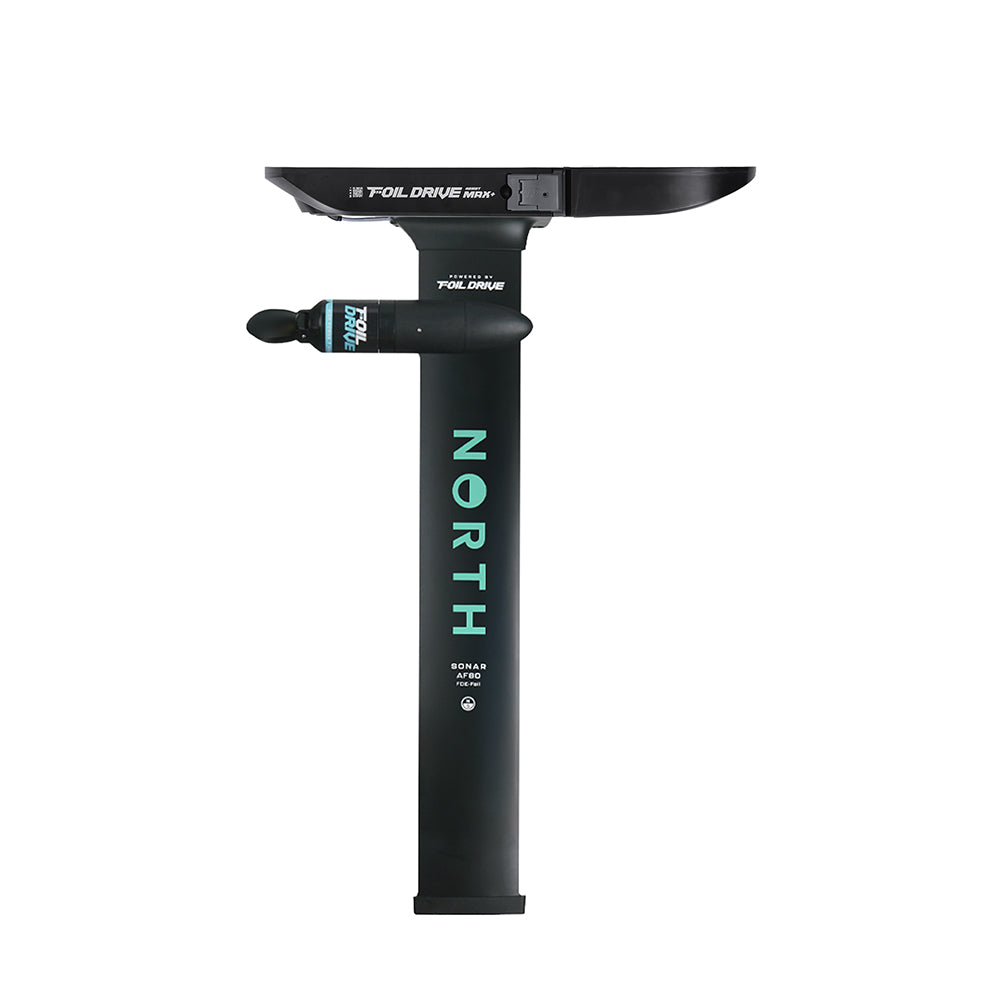

15cm / 6"

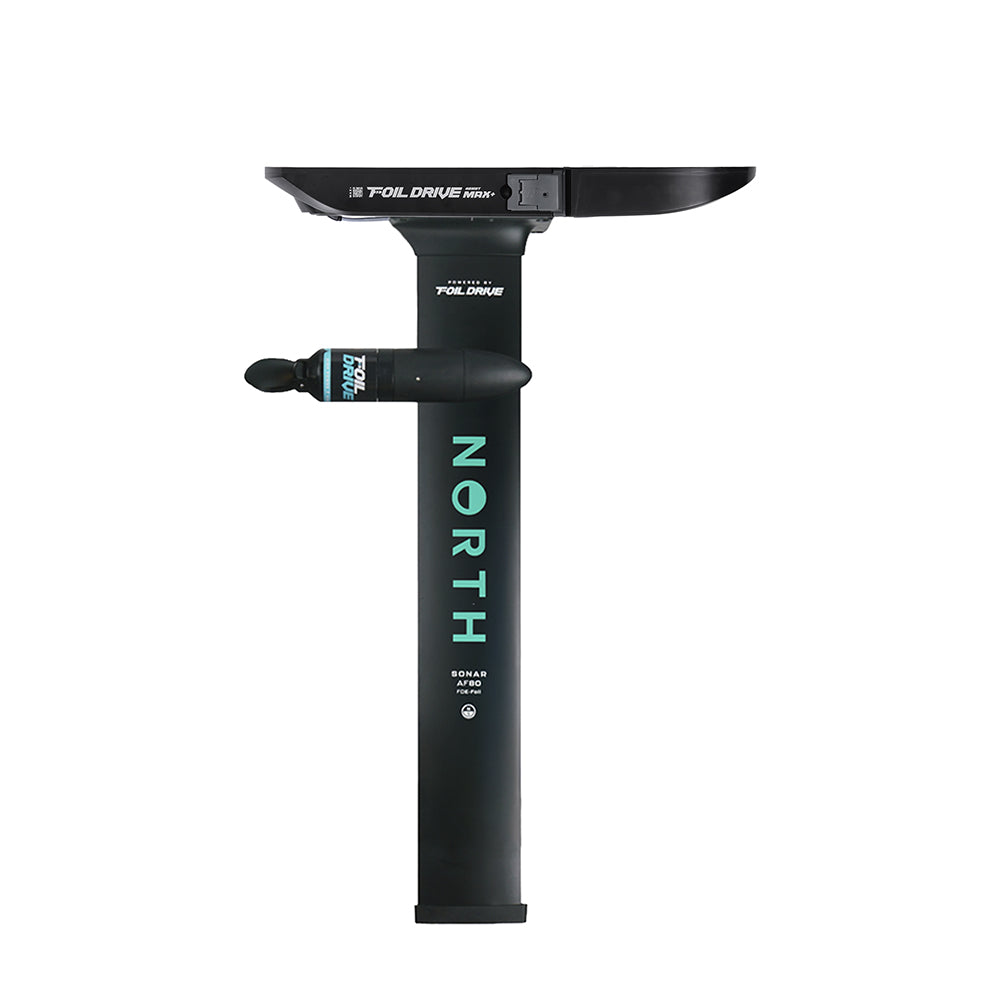

20cm / 8"

Choose Your AC Power Lead

AU

US

EU

UK

$9,468.00 AUD

(includes local duties & taxes)

Tech Specs

icon

System Voltage: 43.2V
Battery Capacity Range: 648Wh
Max Thrust: 35.5kg
Minimum Install Weight*: 6.71 kg
Dimensions with Battery: 540x125x55mm
Peak Power (Boost): 2150W
Sustained Power: 1750W
Peak Horsepower: 2.88hp
Sustained Horsepower: 2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance
Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

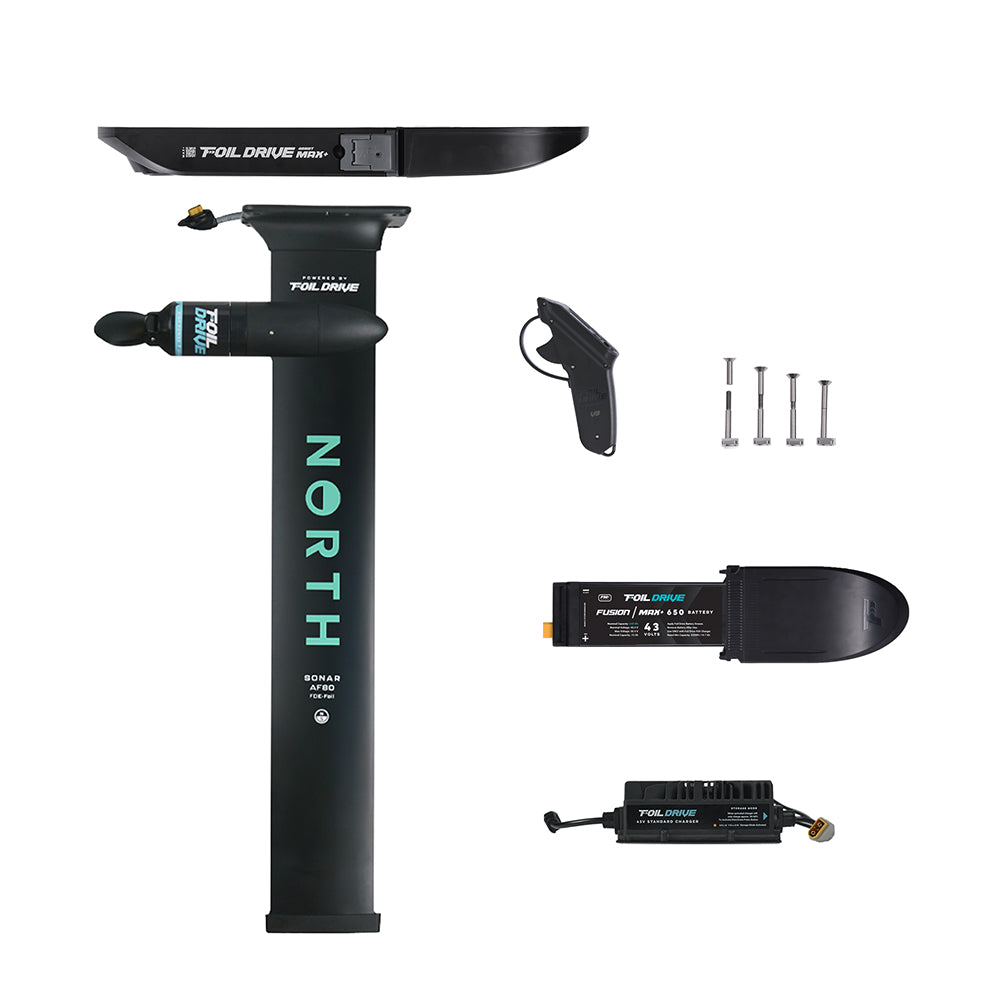

What’s Included

icon

FM+ 650 Battery
Integrated Mast Motor
North Integrated Mast at chosen height

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case
- USB-C Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack

User Manuals

Compatible With

icon

Assist MAX+
NORTH Foils
