Foil Drive Assist MAX x AK Durable Bundle

SKU:

All the required Foil Drive components to go with a AK Carbon Plus Mast.

This DOES NOT include the AK Durable Integrated Mast itself, please see your local AK Durable Dealer or visit their website to purchase the Mast.

The perfect bundle to suit your AK Durable Carbon Integrated Mast is:

AC Lead

AU

US

EU

UK

$8,200.00 AUD

(includes local duties & taxes)

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 332-594Wh
Max Thrust: 29kg / 63.9lbs
Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
Dimensions with Battery: L525x W125 x H50mm
Horsepower: 2.36HP
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

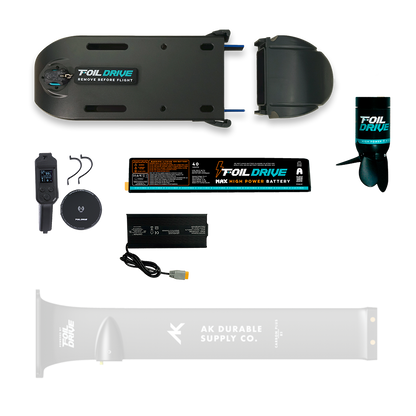

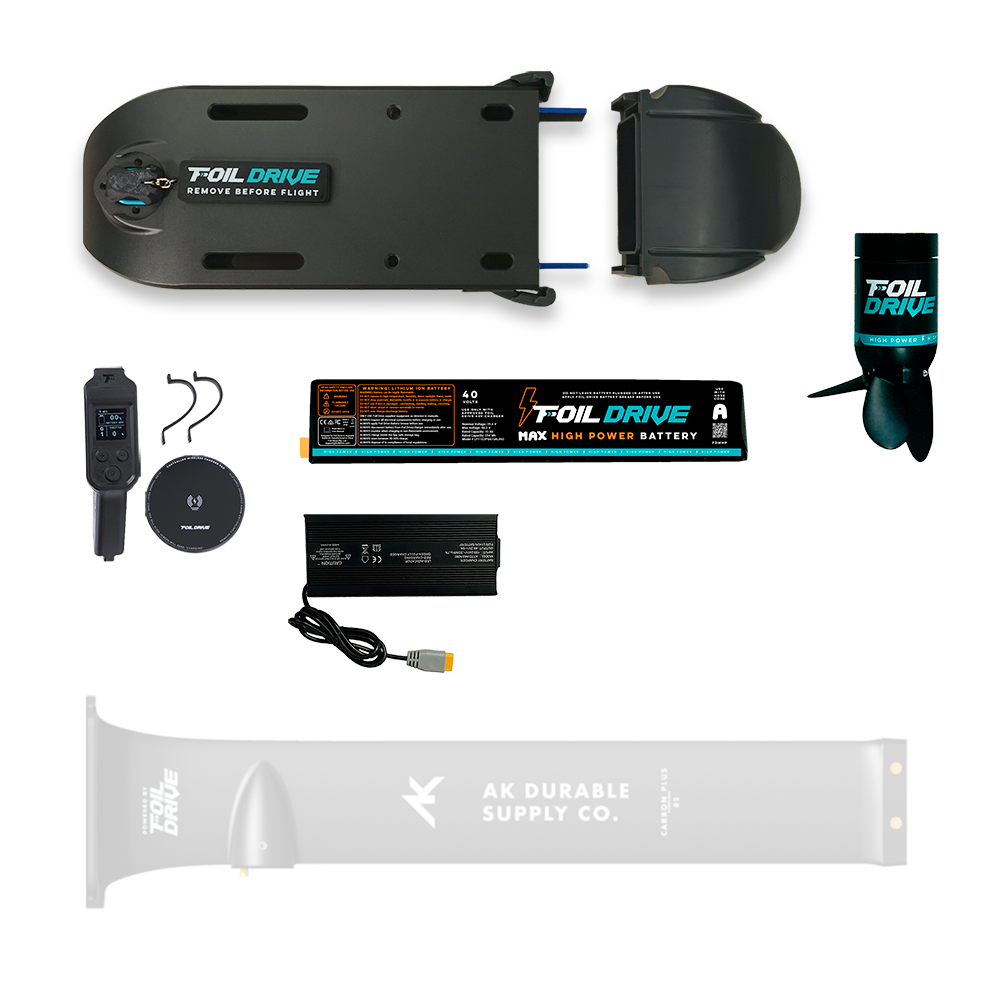

What’s Included

icon

Foil Drive Assist MAX
High Power Battery
Integrated Mast High Power Motor

Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive V3 Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
