Foil Drive Assist MAX x Slingshot One-Lock V2 Integrated Mast Bundle

SKU:

The Foil Drive Assist Max x Slingshot One-Lock V2 Integrated Mast combines the high-power, long-runtime Assist Max system with the precision-engineered Slingshot Integrated Mast for the ultimate powered foiling setup. This pairing delivers smooth, efficient power while maintaining the natural balance and performance of your foil.

With the motor fully internal, the setup simplifies installation, reduces drag, and delivers more low-end torque and longer sessions on the water. The sleek, pre-installed integration ensures uninterrupted foiling, whether powered or unpowered, and keeps the lines of your mast clean and professional.

Note: Motor Position is fixed and cannot be adjusted.

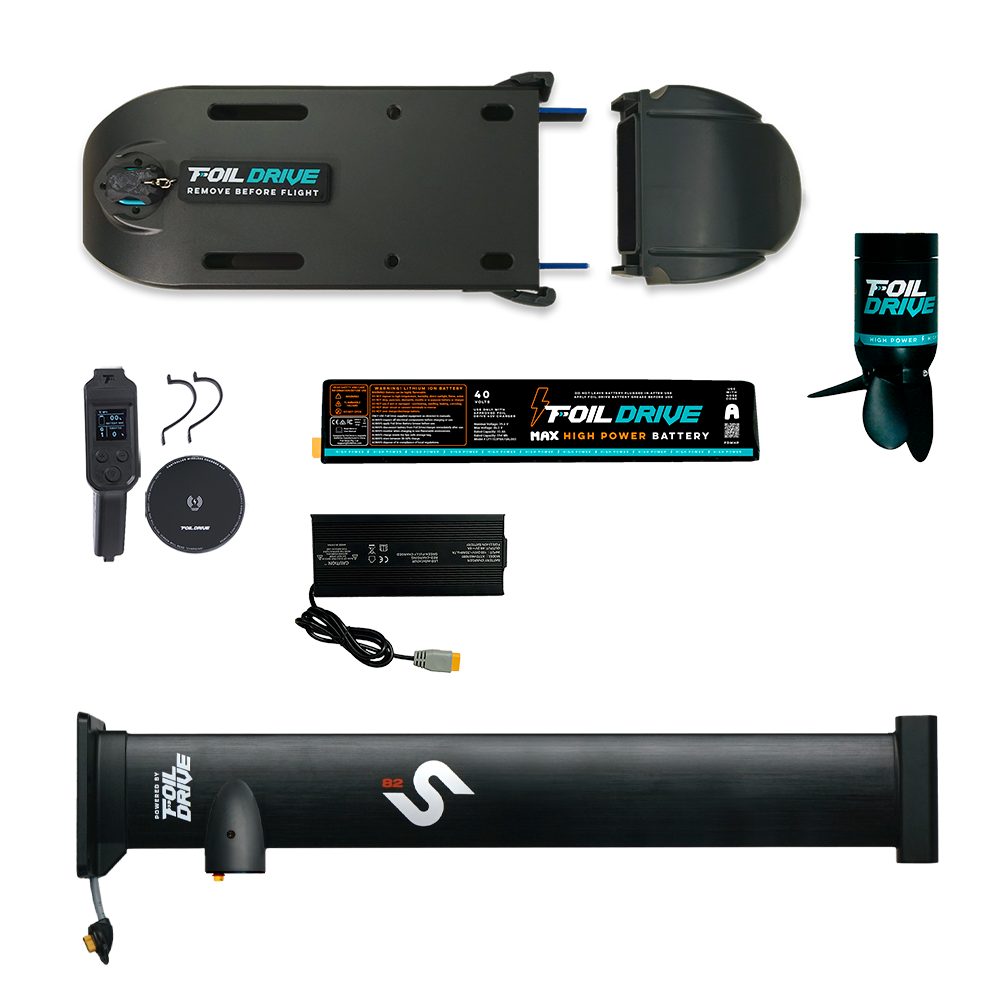

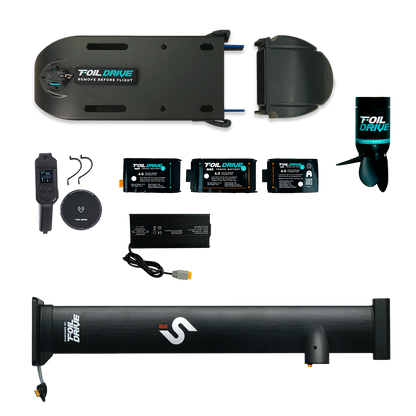

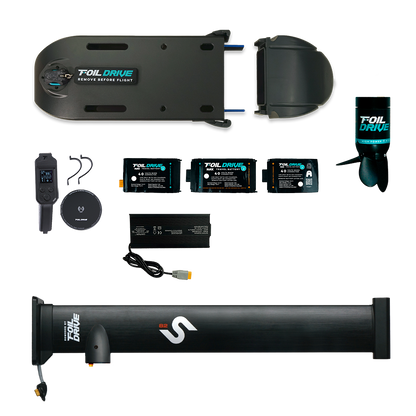

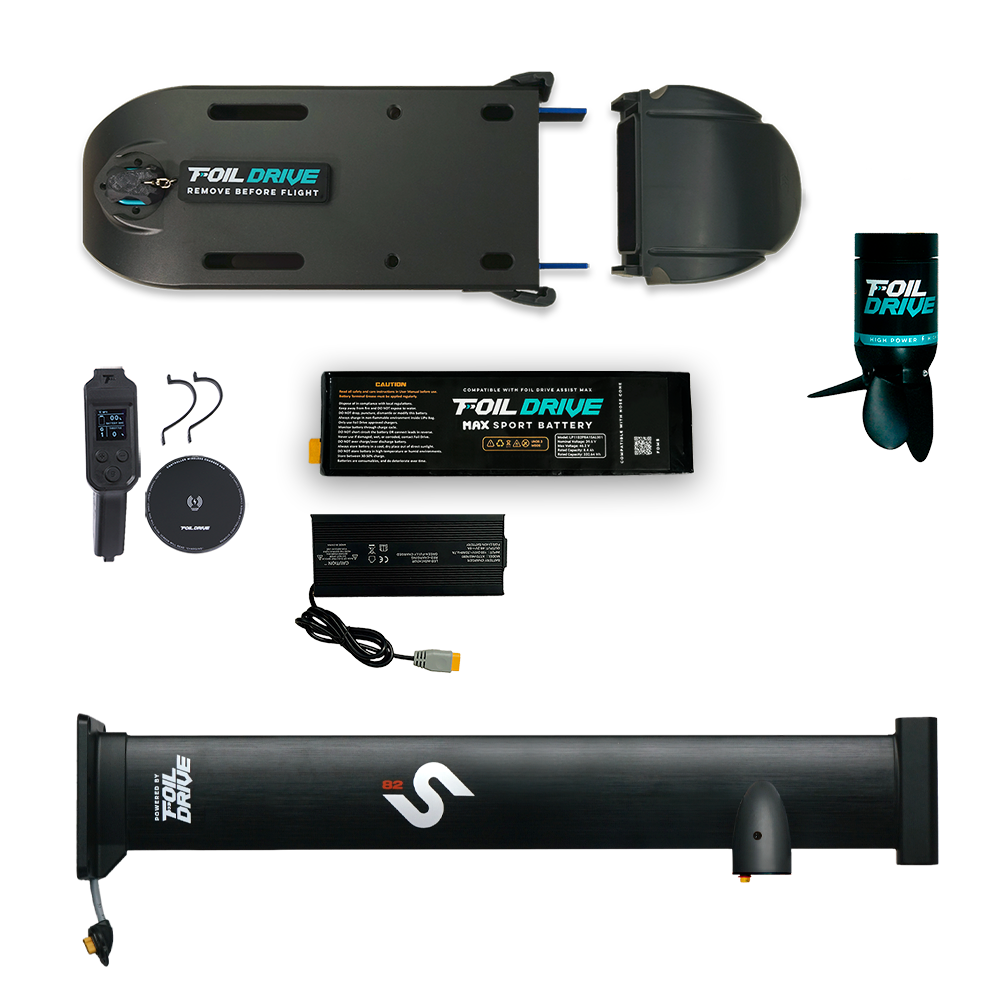

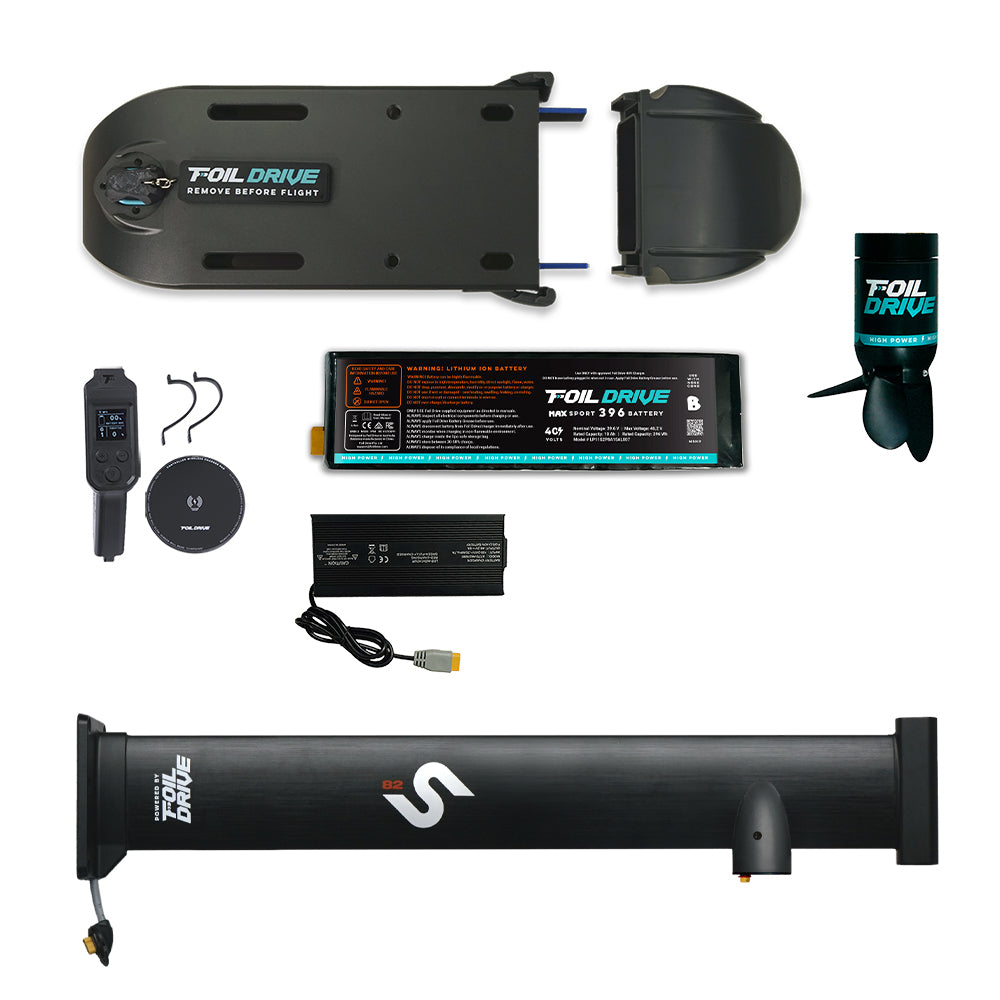

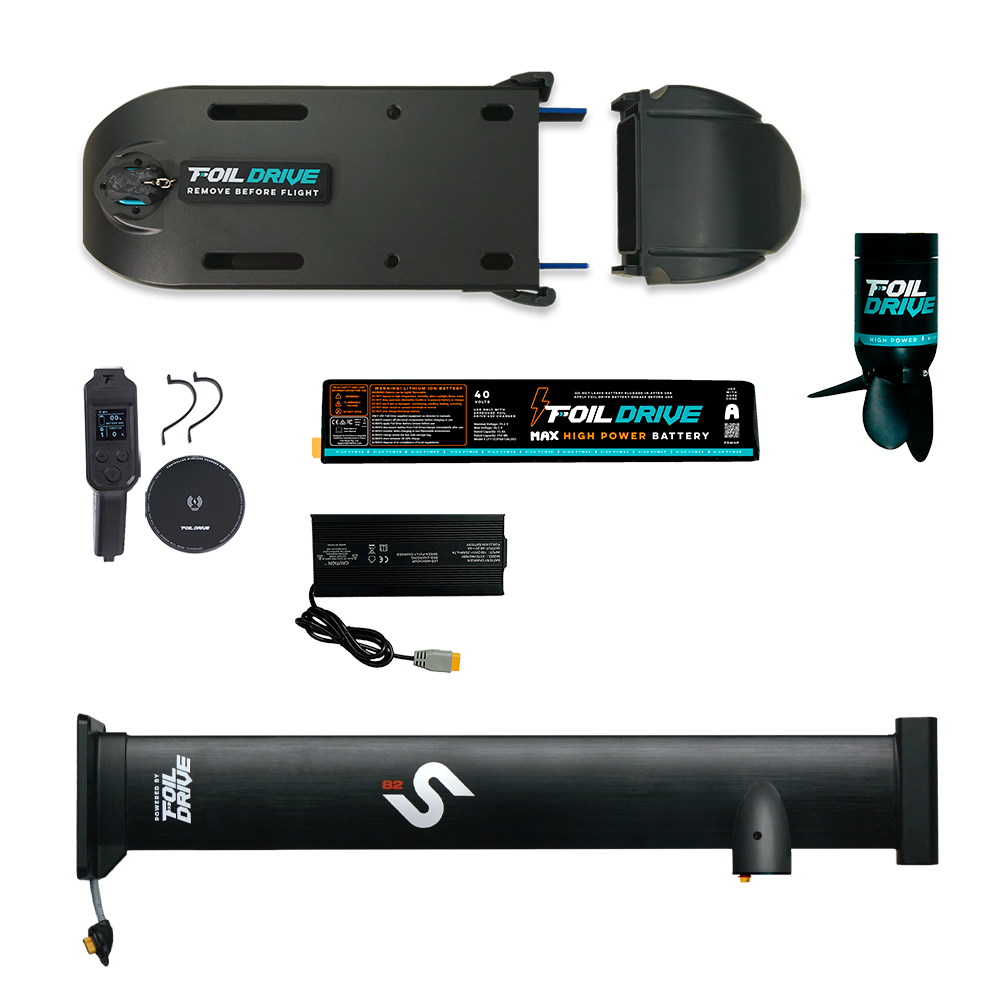

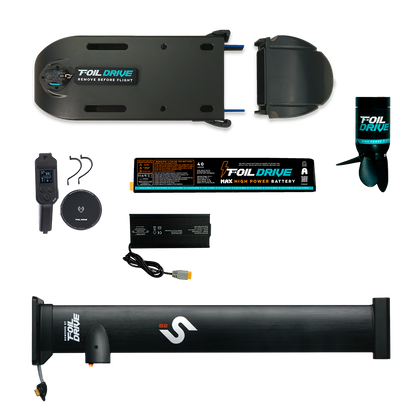

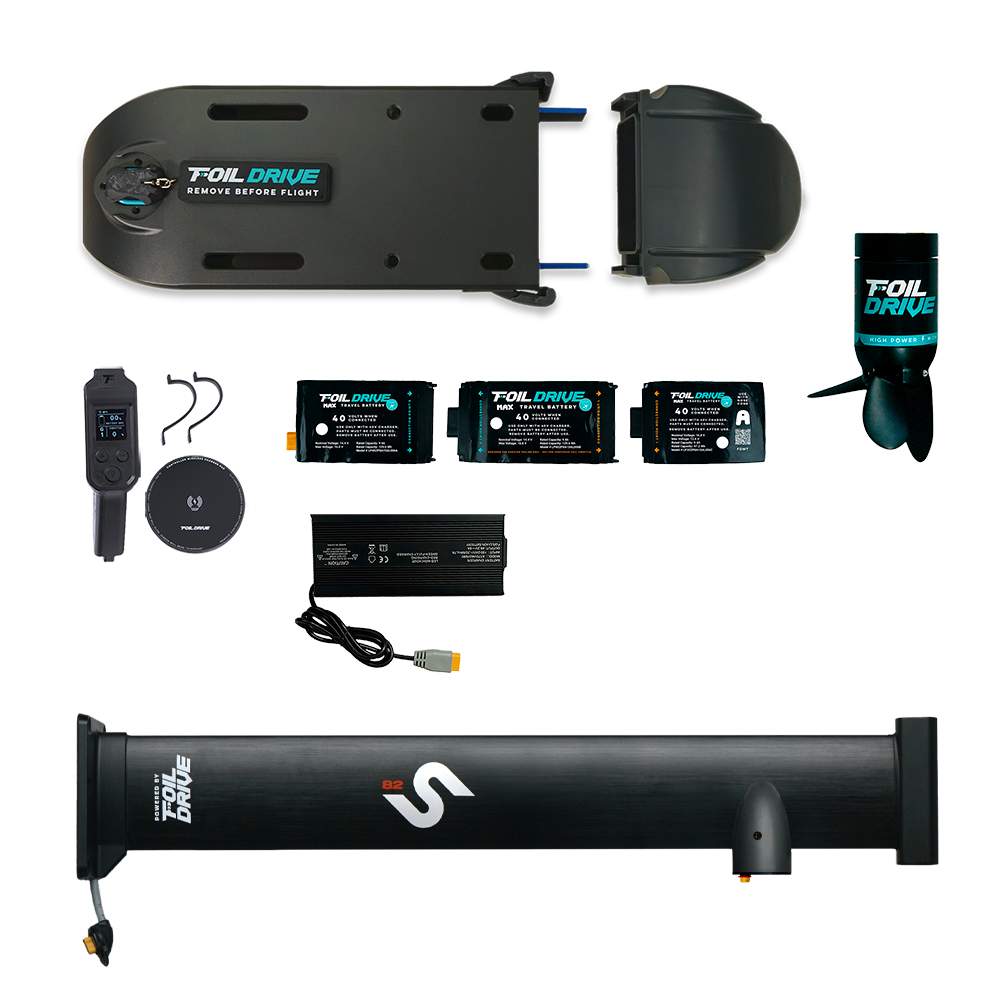

This bundle includes:

Foil Drive Assist MAX
Chosen MAX battery
Integrated Mast High Power Motor
Foil Drive x Slingshot One-Lock V2 Integrated Mast

Choose Your Battery View Battery guide

MAX High Power

MAX Sport High Power 396

MAX Sport

MAX Travel

Choose Your Motor Height View Motor guide

17cm / 7"

E-foil / 70cm / 27.5"

Choose Your AC Power Lead

$9,381.00 AUD

(includes local duties & taxes)

Details

icon

Assist – 17 cm: A unique motor position designed for beginner, intermediate, and advanced assisted foilers alike. The Assist motor position is ideal for hybrid foiling, where riders use short bursts of power to get up on foil before harnessing natural energy from swell or wind to sustain flight once the motor exits the water.

The motor height lets you "surface motor" out to the lineup or travel upwind while keeping the motor tucked close to the board, where it stays out of the way once you're riding. Designed to extend every session, it helps riders get on foil faster, ride longer, and unlock more conditions with confidence and control.

eFoil: Designed for leisure foiling, flatwater cruising, and experimenting with your foils in new ways. Cruise at sunset or push the limits of your setup in a controlled environment. With the motor positioned deeper in the water for consistent propulsion, the eFoil configuration is a versatile way to extend what's possible with your Slingshot foils.

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 332-594Wh
Max Thrust: 29kg / 63.9lbs
Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
Dimensions with Battery: L525x W125 x H50mm
Peak Horsepower: 1854W/2.5hp
Sustained Horsepower: 1455W/1.9hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

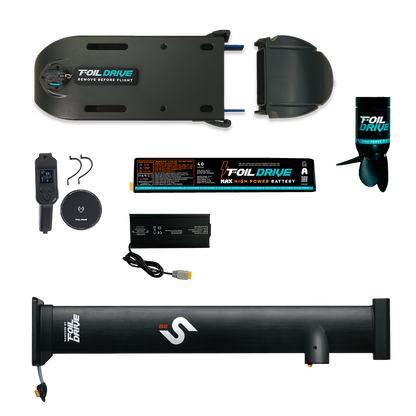

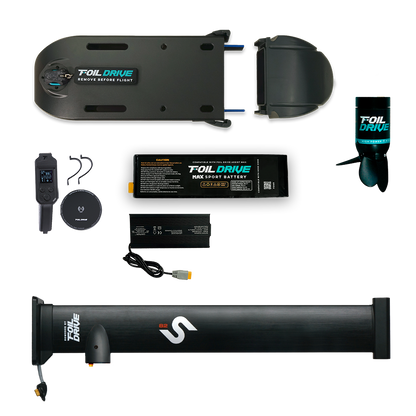

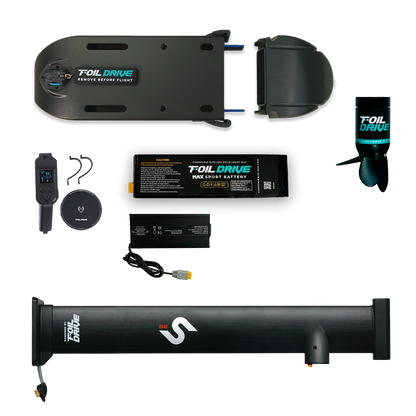

What’s Included

icon

Foil Drive Assist MAX
Chosen MAX Battery
Slingshot One-Lock V2 Integrated Mast

Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive V3 Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

Compatible With

icon

Assist MAX
Slingshot Foils
