Foil Drive Assist Slim x AXIS Carbon Integrated 800 Mast Bundle

SKU:

The Foil Drive Assist Slim x AXIS Carbon Integrated 800 Mast Bundle pairs the ultra-light, low-drag Assist Slim system with AXIS' high-modulus and ultra high-modulus integrated masts for a refined hybrid setup. Get just enough electric lift to extend your sessions and unlock more conditions, while preserving the feel and performance of a true surf foil. Ride fully assisted when needed, then switch to a clean, high-performance Assist setup with ease. One lightweight system, endless pairing possibilities.

Note: This DOES NOT include a AXIS Carbon Integrated 800 Mast itself, please see your local AXIS dealer or visit their website to purchase the Mast.

Note: Motor Position is fixed and cannot be adjusted

All the required Foil Drive components to go with one of the two AXIS Carbon Integrated 800 Masts. Please see the full product listings for product details, linked in the copy below.

The perfect bundle to suit your AXIS Carbon Integrated 800 Mast is:

AC Lead

AU

US

EU

UK

$6,750.00

(includes local duties & taxes)

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 166-241Wh
Max Thrust: 26.5kg / 58.4lbs
Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
Dimensions with Battery: L510x W125 x H35mm
Horsepower: 2.36HP
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

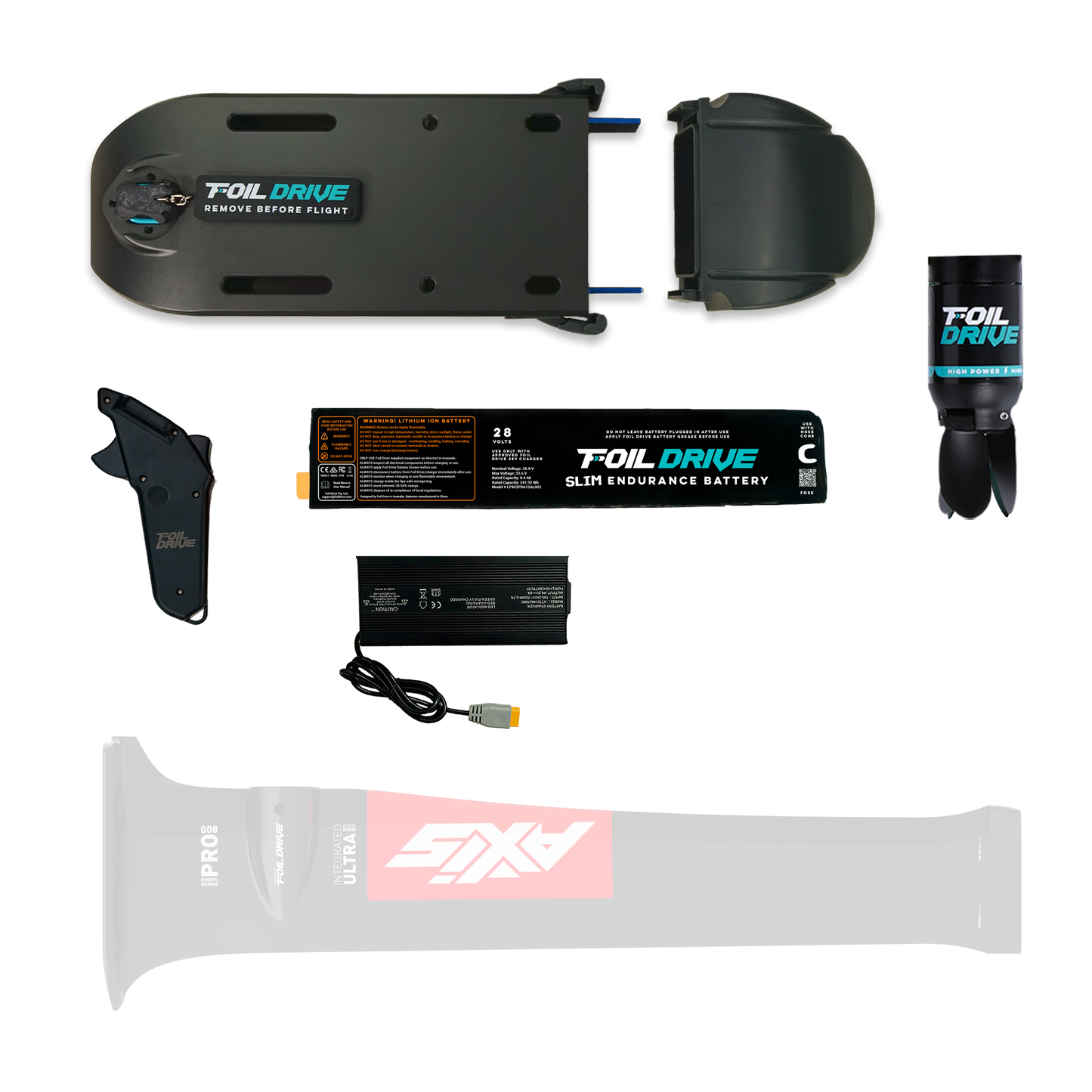

What’s Included

icon

Foil Drive Assist Slim
Endurance battery
Integrated Mast High Power Motor

Motor Plug Protector with Keychain
Foil Drive Nose Cone C
Foil Drive Nose Cone D
Foil Drive V3 Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist Slim Mast Plate Bolts 80mm
4x M6 Assist Slim Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist Slim
- 2x Latch Assembly - Foil Drive Assist Slim
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
