Foil Drive Fusion x AFS Infinity Carbon Integrated Mast Bundle

SKU:

The Foil Drive Fusion × AFS Bundle combines Foil Drive’s latest assist system with the AFS INFINITY 80 integrated carbon mast. Designed to work as one, it delivers clean integration, efficient take-offs and the responsive, low-drag feel needed to make the most of every swell.

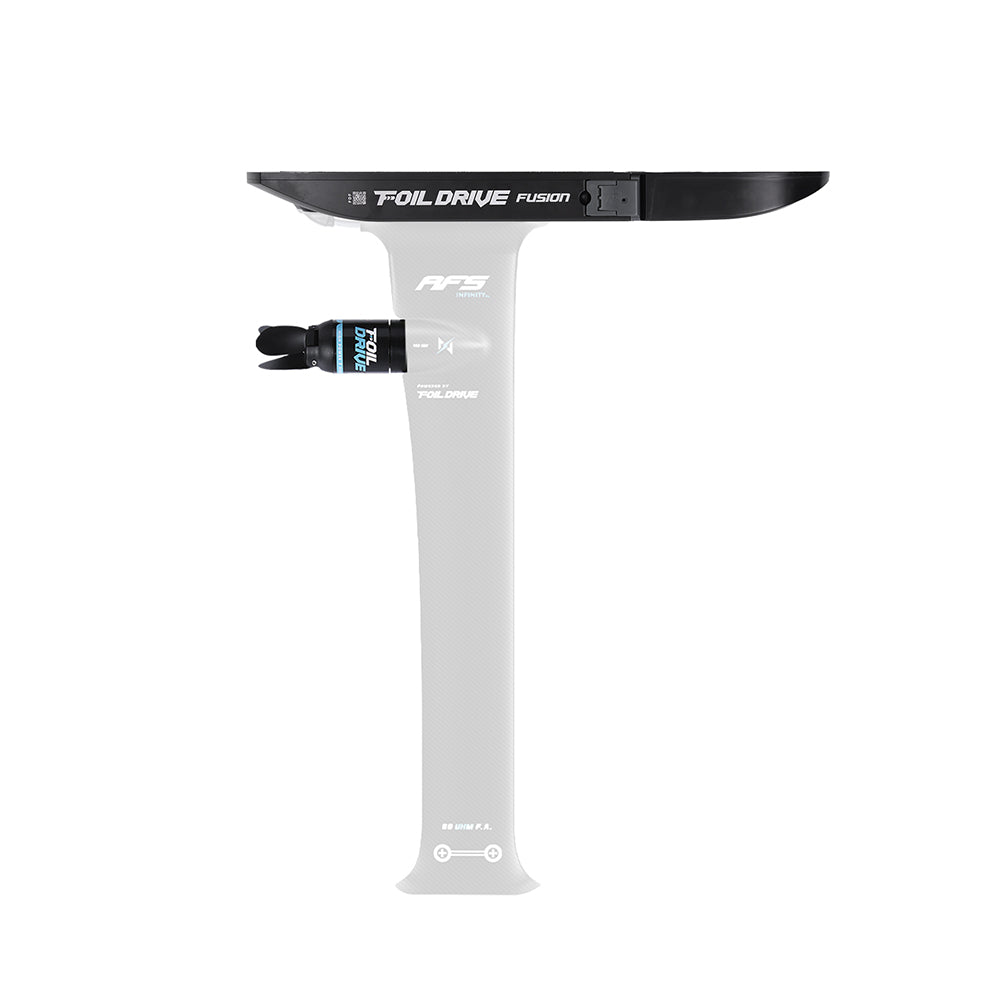

The AFS INFINITY 80 mast is purpose-built for Foil Drive, with internal cable routing and a streamlined motor pod mounted at 150 mm below the plate. The result is a tidy, durable setup that gets you flying with confidence, then disappears beneath you once you are on the wave.

Note: This DOES NOT include the AFS Carbon Integrated Mast itself, please see your local AFS Dealer or visit their website to purchase the Mast.

Note: Motor Position is fixed and cannot be adjusted

All the required Foil Drive components to go with an AFS Carbon Integrated Mast. Please see the full product listings for product details, linked in the copy below.

The perfect bundle to suit your AFS Carbon Integrated Mast is:

AC Lead

AU

US

EU

UK

$10,494.00 AUD

(includes local duties & taxes)

Tech Specs

icon

System Nominal Voltage: 43.2V
Battery Capacity Range: 864Wh
Max Thrust: 34kg / 74.9lbs
Power to Weight Ratio (Thrust/Weight): 4.3 N/KG
Minimum Install Weight*: 7.9kg / 17.4lbs w/ Fusion 860 Battery
Dimensions with Battery: L658 x W125 x H54mm
Peak Horsepower: 2155W/2.89hp
Sustained Horsepower: 1750W/2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

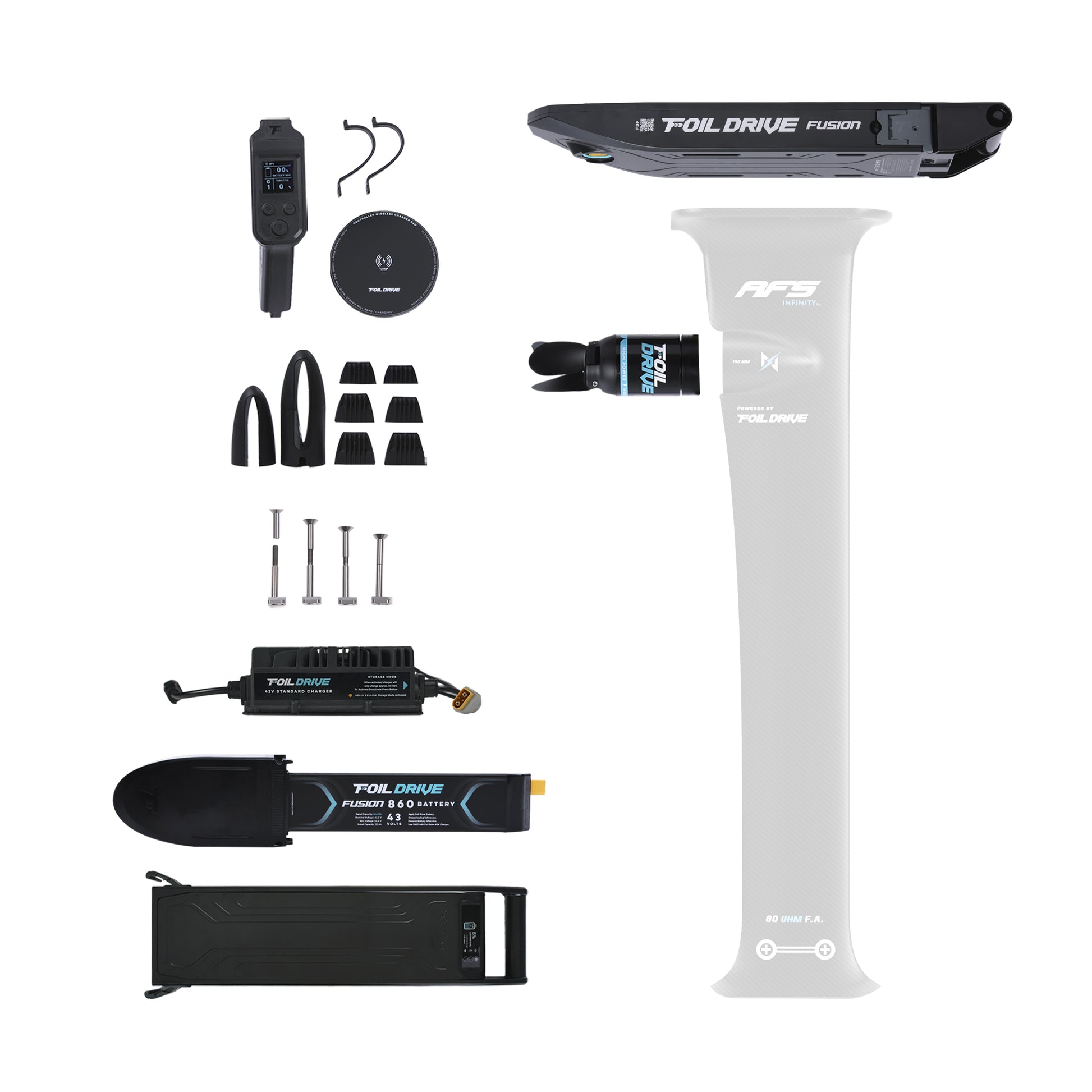

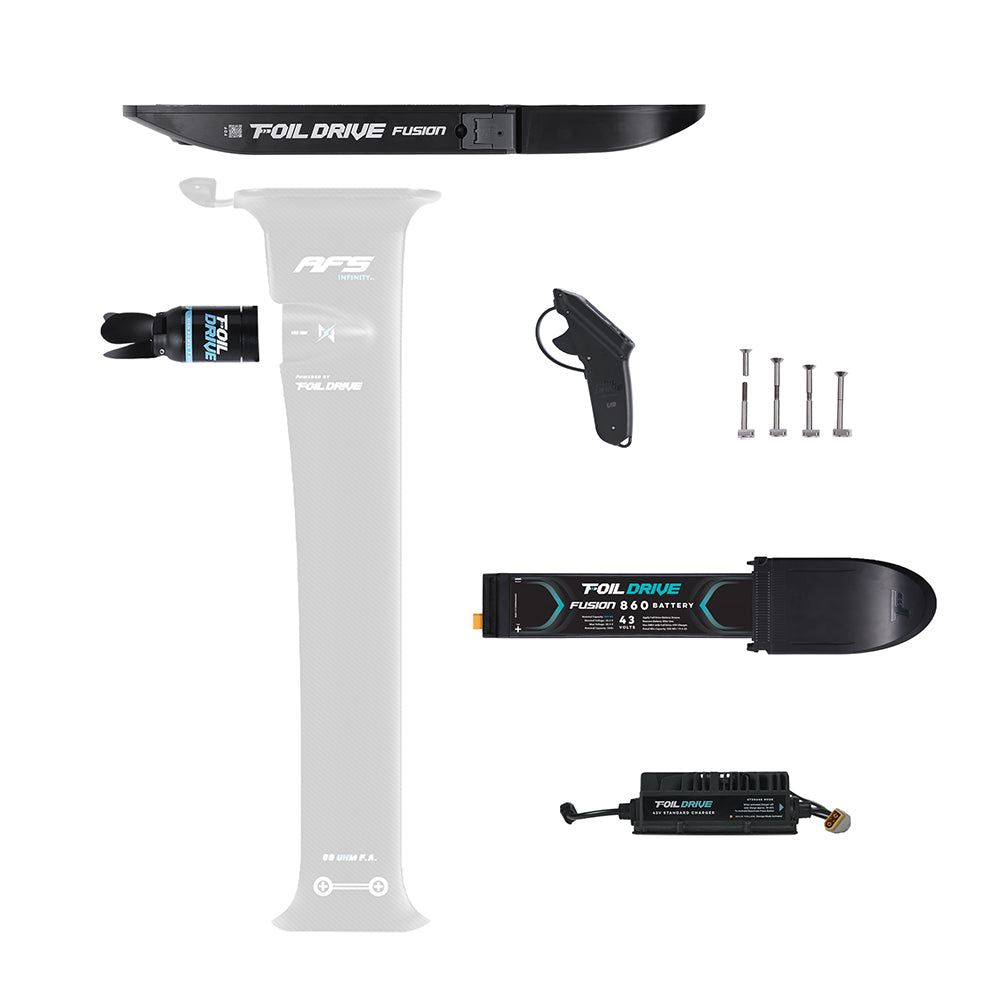

What’s Included

icon

Foil Drive Fusion
Fusion 860 Battery
Integrated Mast High Power Motor
Chosen AC Lead

V3 Controller with Bump Guard Installed
Universal Motor Pod
43V Standard Charger 12amp with selected AC Cable
1x Mast Cable Guide 23cm
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Medium Sticker Pack

Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfibre Towel
