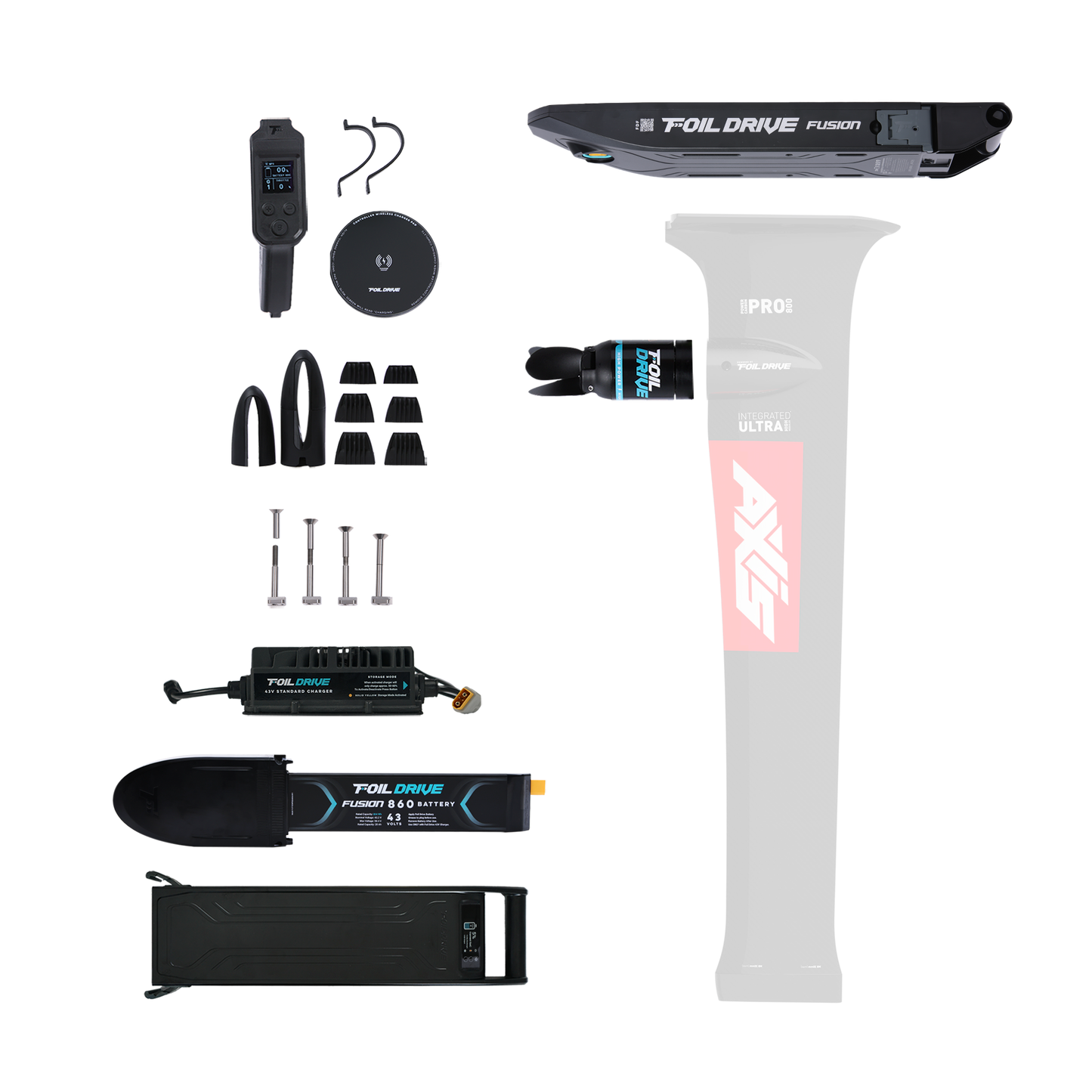

Foil Drive Fusion x AXIS Carbon Integrated 800 Mast Bundle

SKU:

The Foil Drive Fusion x AXIS Carbon Integrated 800 Mast Bundle combines the all-round performance of the Fusion with AXIS’s High Modulus and Ultra High Modulus Integrated Mast for a powerful, refined hybrid setup.

Note: This DOES NOT include a AXIS Carbon Integrated 800 Mast itself, please see your local AXIS dealer or visit their website to purchase the Mast.

Note: Motor Position is fixed and cannot be adjusted

All the required Foil Drive components to go with one of the two AXIS Carbon Integrated 800 Masts. Please see the full product listings for product details, linked in the copy below.

The perfect bundle to suit your AXIS Carbon Integrated 800 Mast is:

AC Lead

AU

US

EU

UK

$10,494.00 AUD

(includes local duties & taxes)

Tech Specs

icon

System Nominal Voltage: 43.2V
Battery Capacity Range: 864Wh
Max Thrust: 34kg / 74.9lbs
Power to Weight Ratio (Thrust/Weight): 4.3 N/KG
Minimum Install Weight*: 7.9kg / 17.4lbs w/ Fusion 860 Battery
Dimensions with Battery: L658 x W125 x H54mm
Peak Horsepower: 2155W/2.89hp
Sustained Horsepower: 1750W/2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

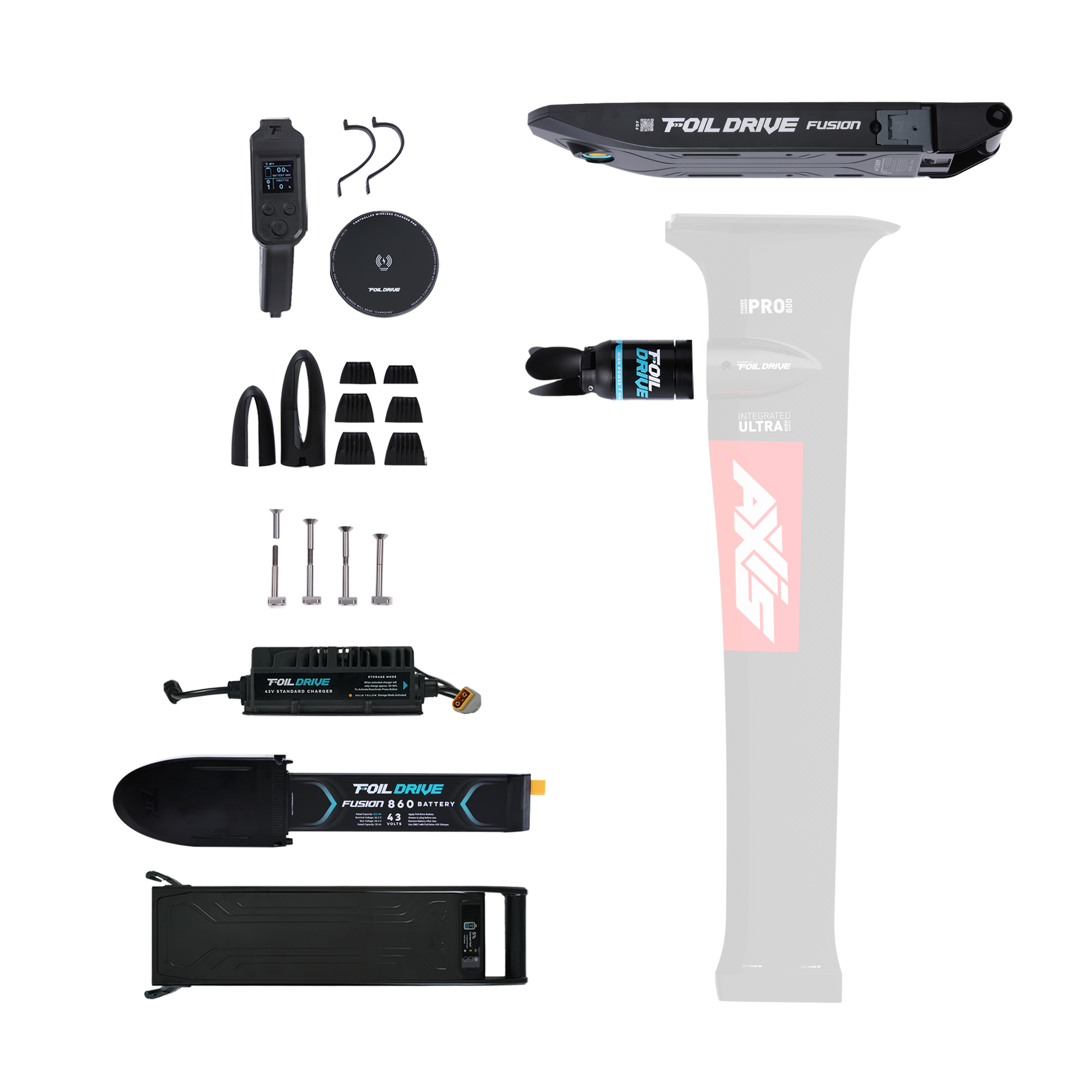

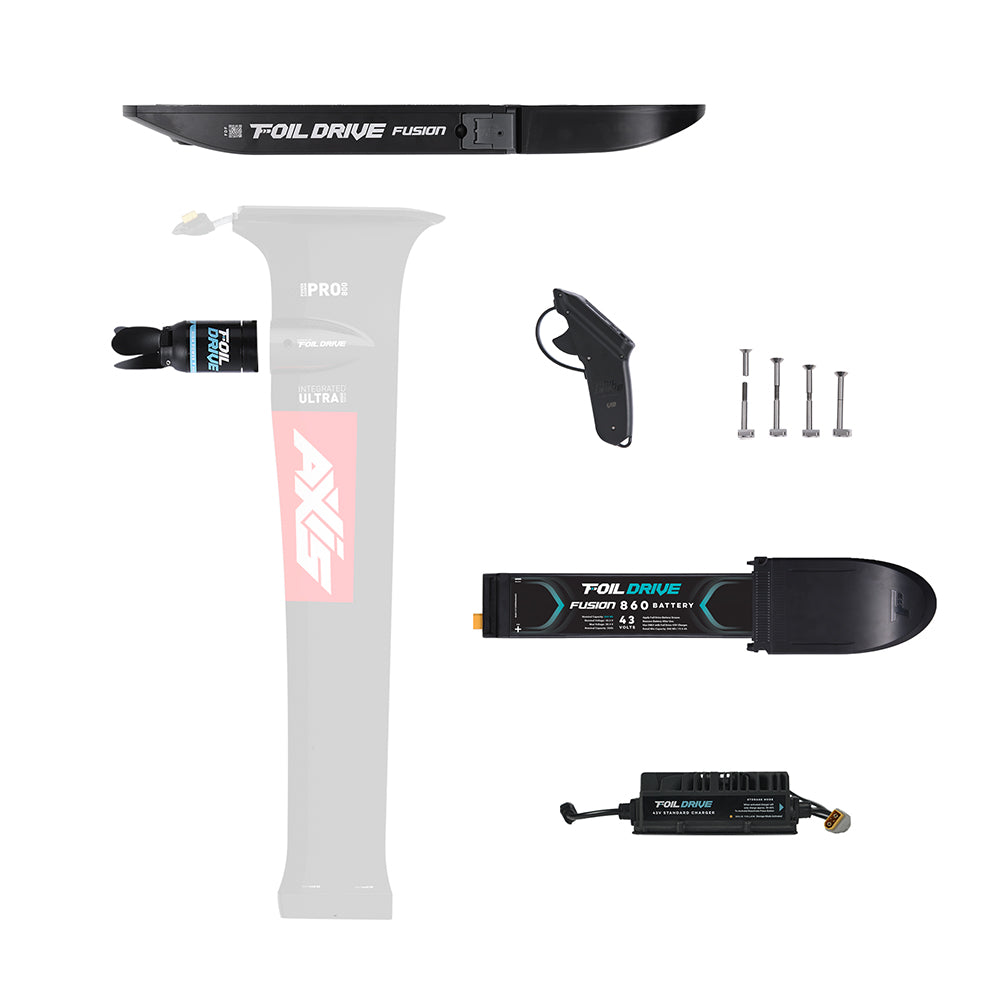

What’s Included

icon

Foil Drive Fusion
Fusion 860 Battery
Integrated Mast High Power Motor
Chosen AC Lead

V3 Controller with Bump Guard Installed
Universal Motor Pod
43V Standard Charger 12amp with selected AC Cable
1x Mast Cable Guide 23cm
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Medium Sticker Pack

Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfibre Towel
