Foil Drive Fusion x AXIS Integrated Mast

SKU:

The Foil Drive Fusion x AXIS Integrated Mast bundle, pairs the powerful, long-runtime Fusion system with AXIS mast for the ultimate hybrid setup. Enjoy the freedom to ride as an efoil alternative or switch to a high-performance Assist with ease. One system, endless pairing possibilities.

Note: Bundle does not include the doodad/fuselage adaptor
Note: Motor Position is fixed and cannot be adjusted

All the required Foil Drive components to go with an AXIS Aluminium Integrated Mast. Please see the full product listings for product details, linked in the copy below.

The perfect bundle to suit your AXIS Aluminium Integrated Mast is:

Foil Drive Fusion
Fusion Battery
AXIS x Foil Drive Integrated Mast w/ High Power Motor Installed
Foil Drive Barnacle Cable Extender (Required to connect mast to motor plug)

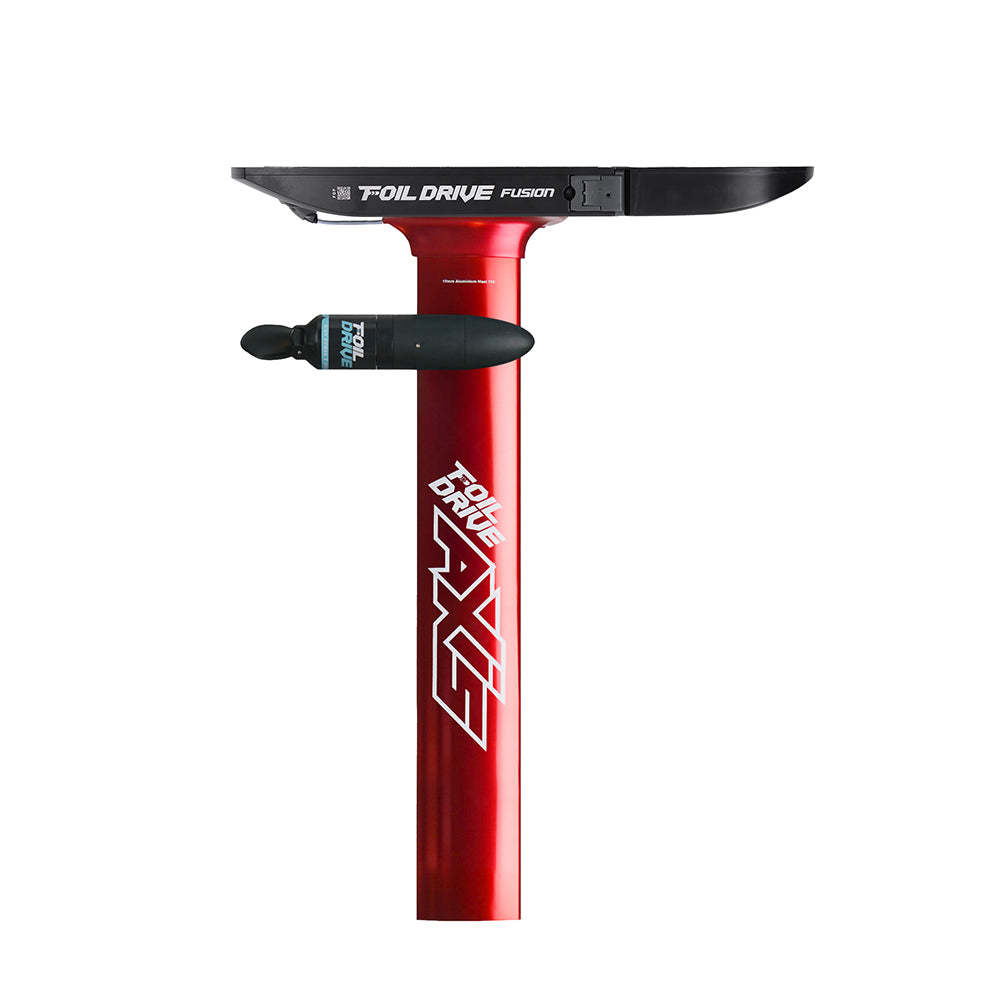

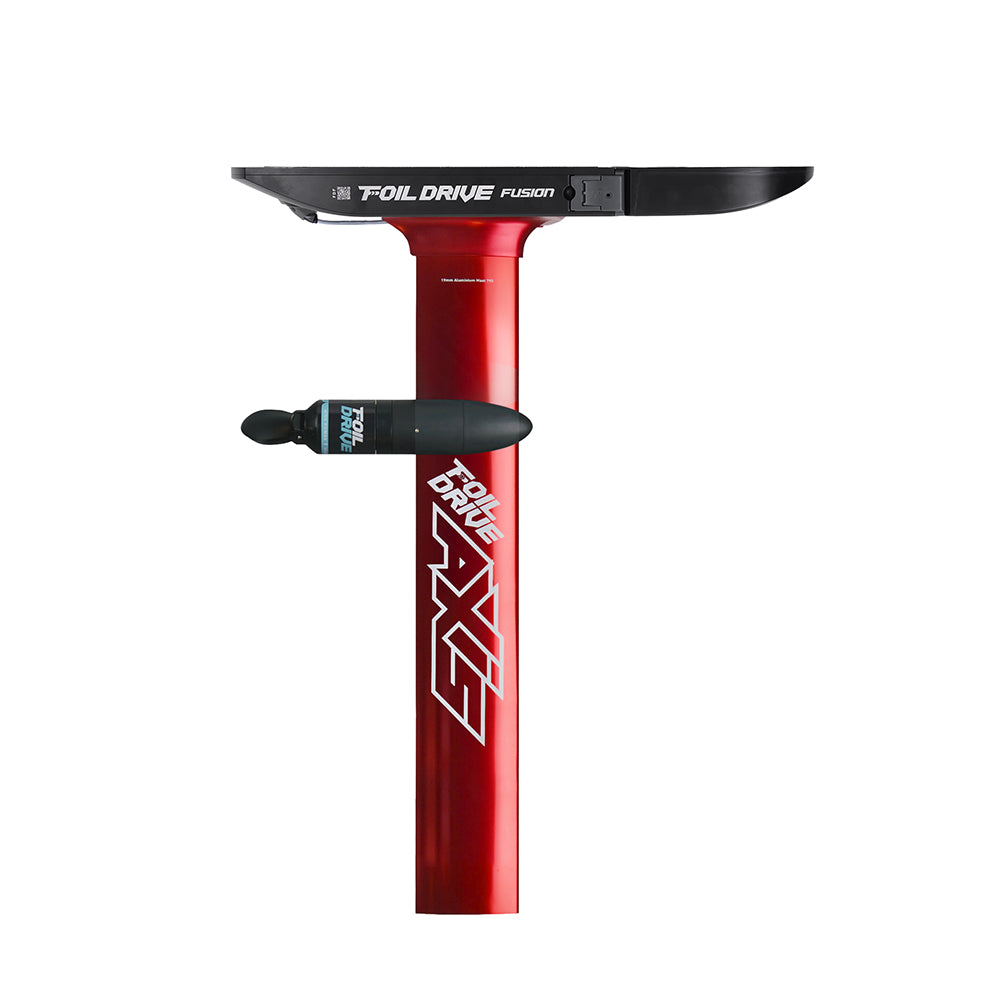

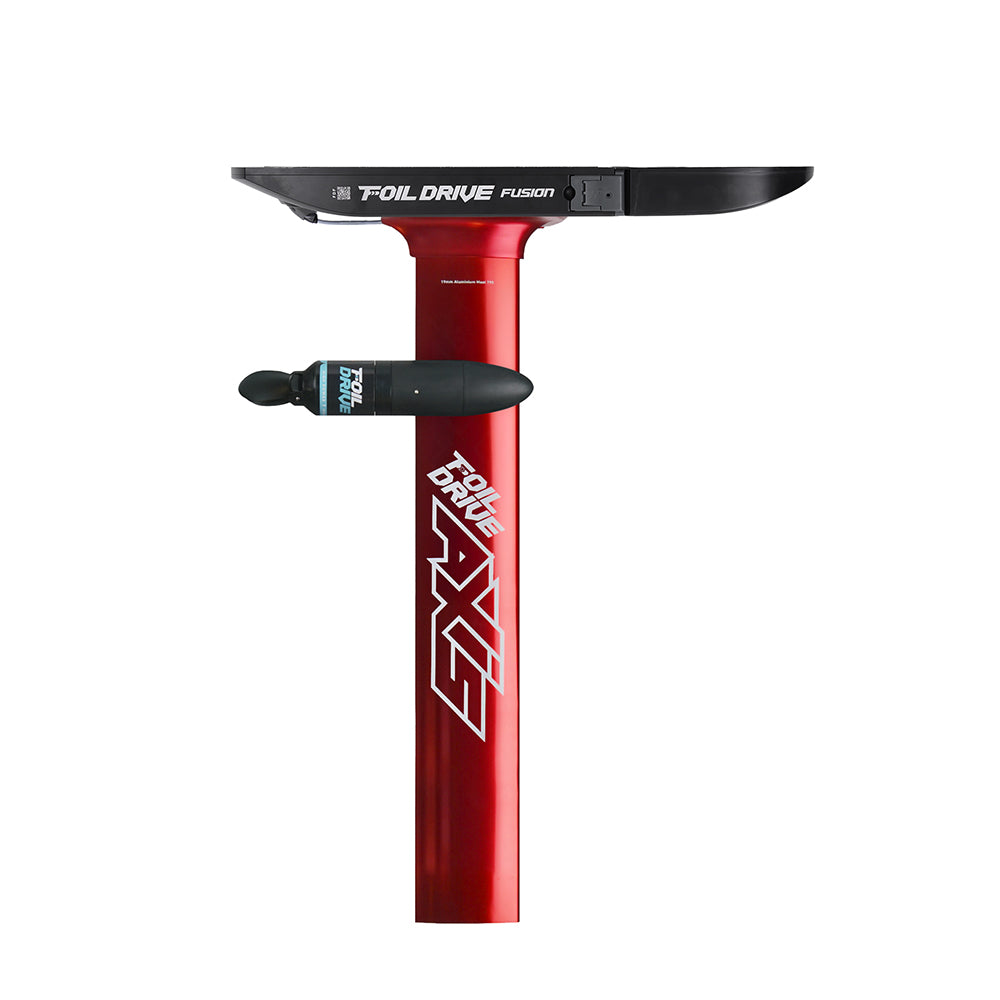

Choose Your Mast Height

15cm

20cm

25cm

70cm / e-foil

Choose Your AC Power Lead

AU

US

EU

UK

$11,794.00 AUD

(includes local duties & taxes)

Tech Specs

icon

System Nominal Voltage: 43.2V
Battery Capacity Range: 864Wh
Max Thrust: 34kg / 74.9lbs
Power to Weight Ratio (Thrust/Weight): 4.3 N/KG
Minimum Install Weight*: 7.9kg / 17.4lbs w/ Fusion 860 Battery
Dimensions with Battery: L658 x W125 x H54mm
Peak Horsepower: 2155W/2.89hp
Sustained Horsepower: 1750W/2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

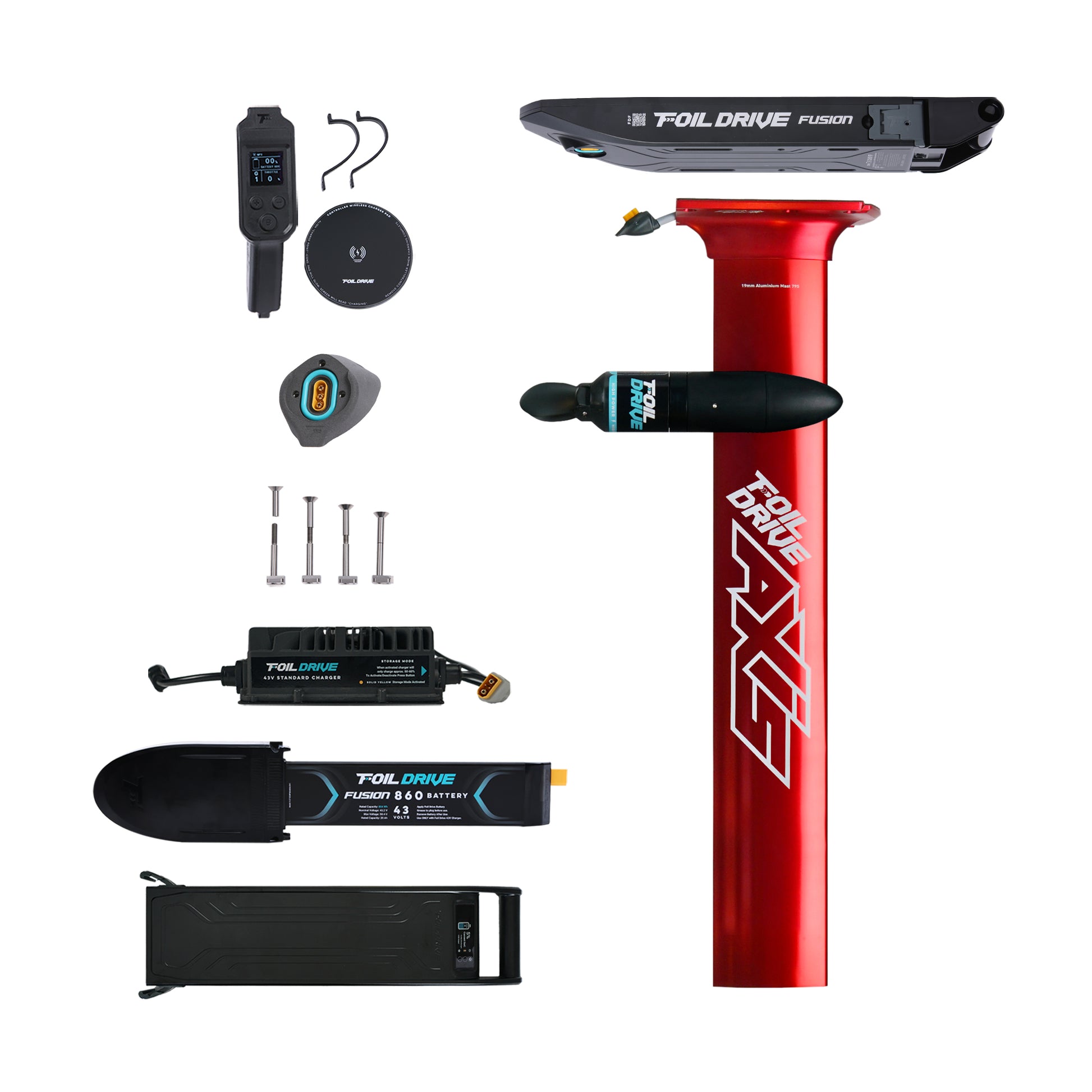

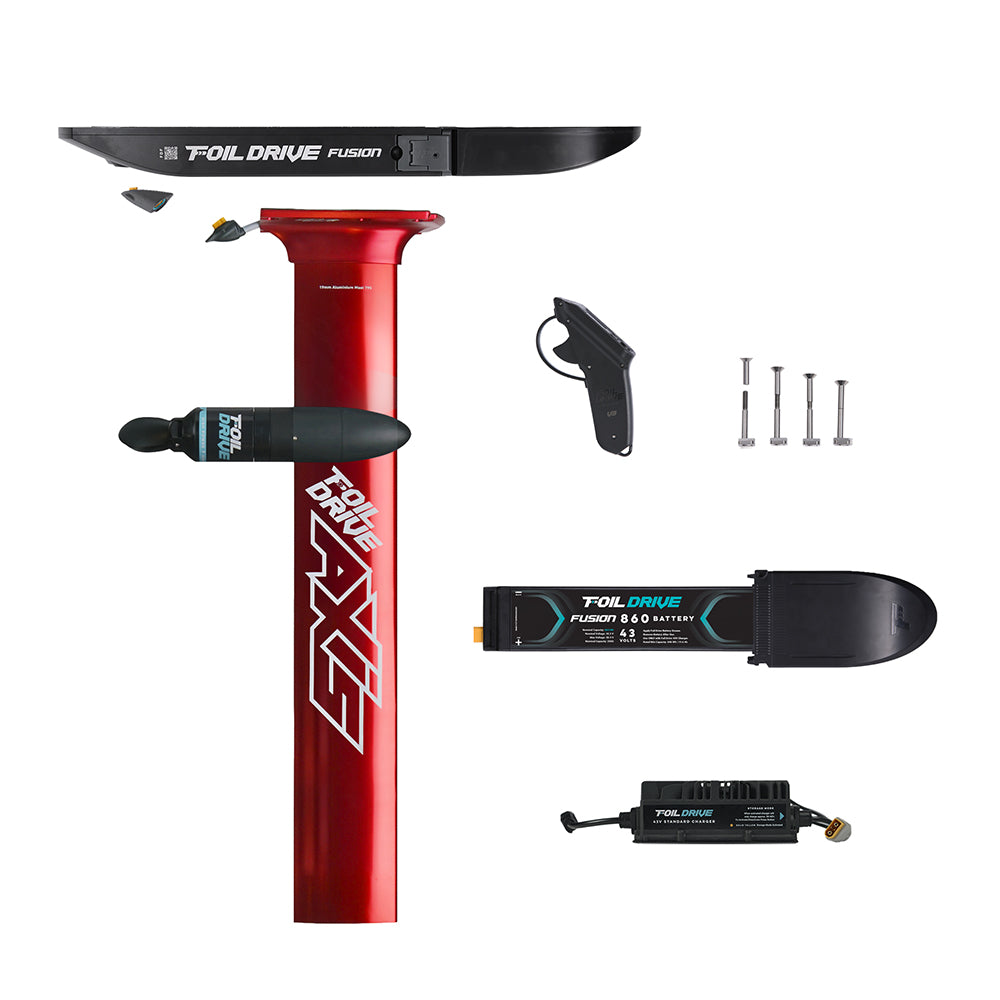

What’s Included

icon

Foil Drive Fusion
Fusion 860 Battery
AXIS Integrated Mast in chosen position
Integrated Mast High Power Motor
Chosen AC Lead

V3 Controller with Bump Guard Installed
43V Standard Charger 12amp with selected AC Cable
1x Mast Cable Guide 23cm
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Medium Sticker Pack

Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfibre Towel

Compatible With

icon

Fusion
AXIS Foils
