Foil Drive Fusion x Slingshot One-Lock V2 Integrated Mast Bundle

SKU:

The Foil Drive Fusion x Slingshot One-Lock V2 Integrated Mast bundle, pairs the powerful, long-runtime Fusion system with these Slingshot masts for the ultimate hybrid setup.

The Slingshot One-Lock Aluminum Mast is one of the lightest aluminum mast on the
market. Constructed with 6061 grade aluminum, the design optimises aluminum placement
for maximum weight savings and stiffness. The mast’s chord sits at 118mm, achieving a
perfect balance between efficiency, stiffness and weight. This combination delivers direct
and precise feedback. At the mast’s foot, our optimised One-Lock collar enhances efficiency
and minimises drag by ensuring smooth water flow from the front wing to the stabiliser,
all while holding true to our durability standards.

Note: Motor Position is fixed and cannot be adjusted

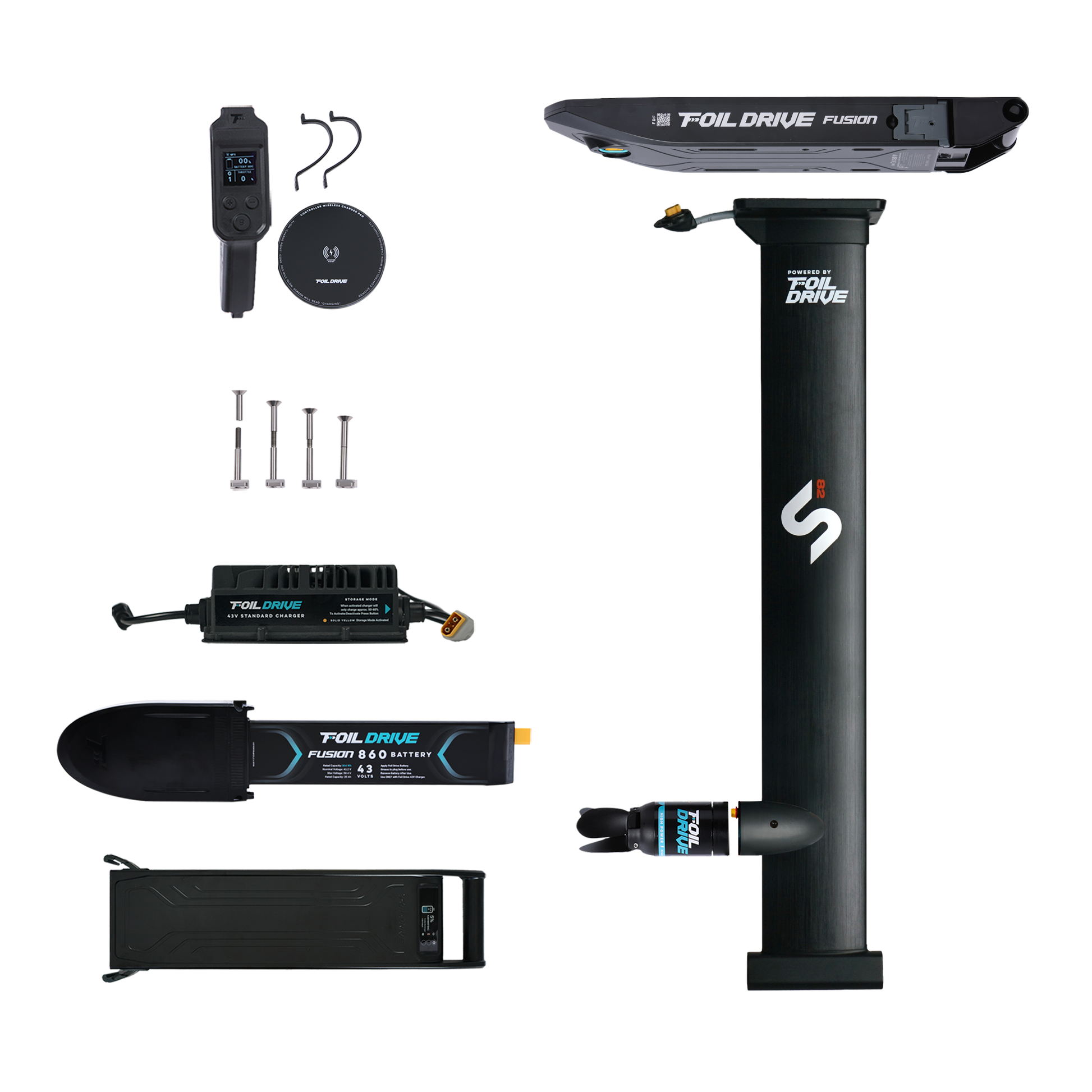

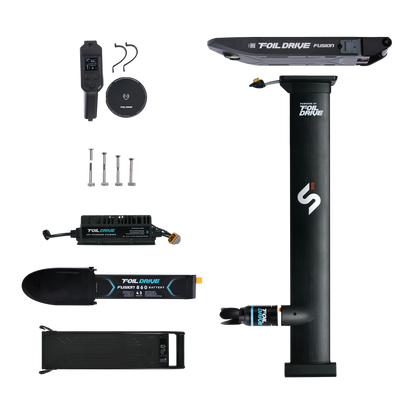

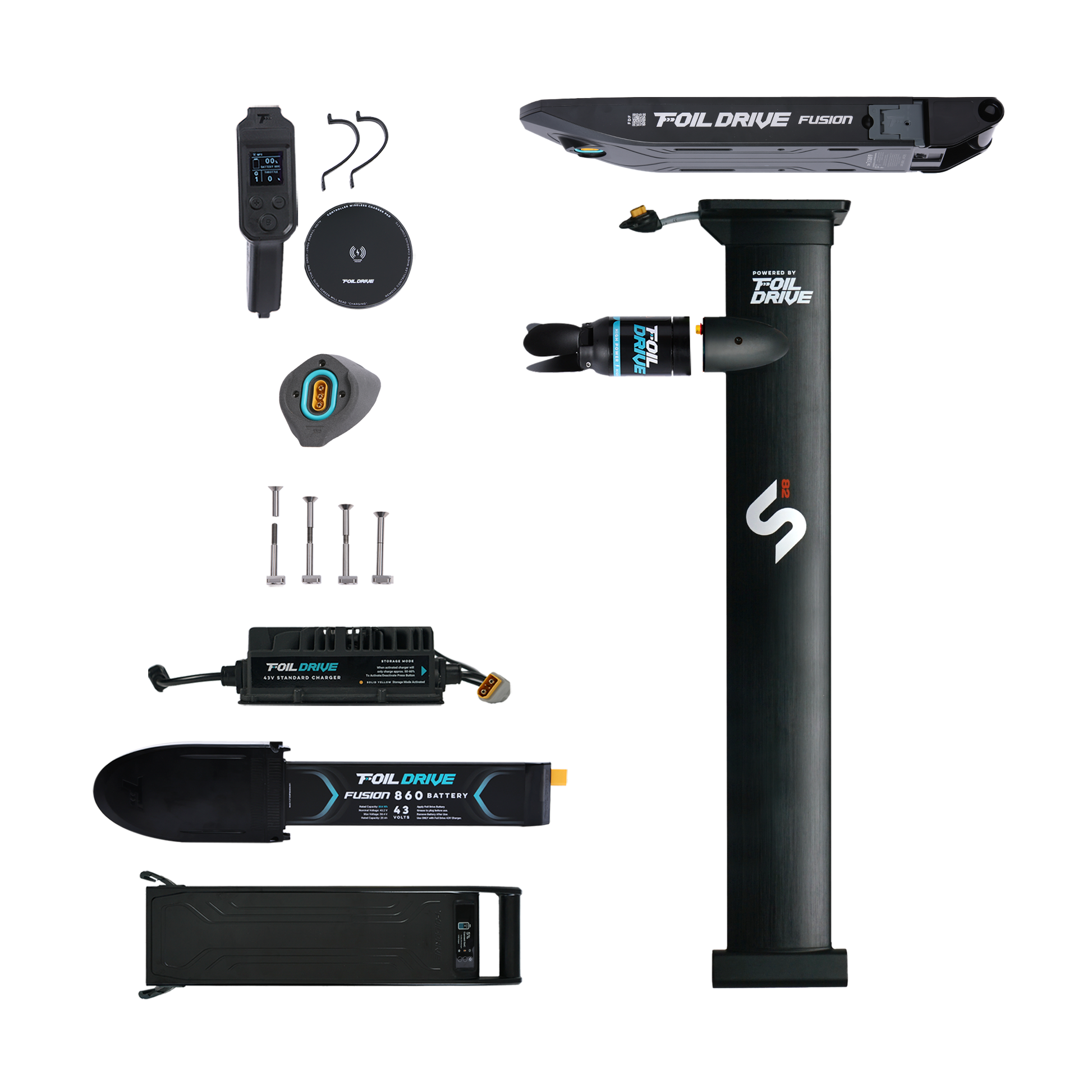

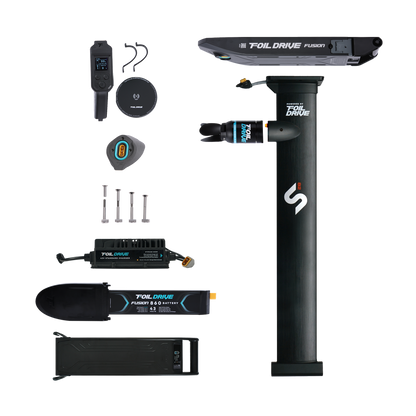

This bundle includes:

Foil Drive Fusion
Fusion Battery
Foil Drive x Slingshot One-Lock V2 Integrated Mast
Integrated Mast High Power Motor
Foil Drive Barnacle Cable Extender (only included when assist mast height is selected)

Choose Your Motor Height View Motor guide

17cm / 7"

E-foil / 70cm / 27.5"

Choose Your AC Power Lead

AU

US

EU

UK

$11,825.00 AUD

(includes local duties & taxes)

Details

icon

Assist – 17 cm: A unique motor position designed for beginner, intermediate, and advanced assisted foilers alike. The Assist motor position is ideal for hybrid foiling, where riders use short bursts of power to get up on foil before harnessing natural energy from swell or wind to sustain flight once the motor exits the water.

The motor height lets you "surface motor" out to the lineup or travel upwind while keeping the motor tucked close to the board, where it stays out of the way once you're riding. Designed to extend every session, it helps riders get on foil faster, ride longer, and unlock more conditions with confidence and control.

eFoil: Designed for leisure foiling, flatwater cruising, and experimenting with your foils in new ways. Cruise at sunset or push the limits of your setup in a controlled environment. With the motor positioned deeper in the water for consistent propulsion, the eFoil configuration is a versatile way to extend what's possible with your Slingshot foils.

Tech Specs

icon

System Nominal Voltage: 43.2V
Battery Capacity Range: 864Wh
Max Thrust: 34kg / 74.9lbs
Power to Weight Ratio (Thrust/Weight): 4.3 N/KG
Minimum Install Weight*: 7.9kg / 17.4lbs w/ Fusion 860 Battery
Dimensions with Battery: L658 x W125 x H54mm
Peak Horsepower: 2155W/2.89hp
Sustained Horsepower: 1750W/2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

What’s Included

icon

Foil Drive Fusion
Fusion 860 Battery
Slingshot One-Lock V2 Integrated Mast
Integrated Mast High Power Motor
Chosen AC Lead
Foil Drive Barnacle Cable Extender
(only included when assist mast height is selected)

V3 Controller with Bump Guard Installed
Universal Motor Pod
43V Standard Charger 12amp with selected AC Cable
1x Mast Cable Guide 23cm
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Medium Sticker Pack

Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfibre Towel

Compatible With

icon

Fusion
Slingshot Foils
