Foil Drive Assist MAX x RRD Alu Integrated Mast Bundle

SKU:

The Foil Drive Assist MAX x RRD Alu Integrated Mast Bundle combines the proven performance of the Assist MAX system with RRD's Universal Aluminium Integrated Mast platform, delivering a clean, streamlined setup for every foiling adventure.

Whether you choose the Assist Alu Mast for low-drag foil assist or the E-Foil Alu Mast for continuous powered riding, this bundle includes all the Foil Drive components required to complete your setup.

Choose your preferred RRD Universal Aluminium Integrated Mast, then pair it with this bundle to build your ideal ride.

Note: This DOES NOT include the RRD Integrated Mast itself, please see your local RRD Dealer or visit their website to purchase the Mast.

Note: Motor Position is fixed and cannot be adjusted.

All the required Foil Drive components to go with an RRD Integrated Mast. Please see the full product listings for product details, linked in the copy below.

The perfect Assist MAX bundle to suit your RRD Integrated Mast is:

AC Lead

AU

US

EU

UK

$8,200.00 AUD

(includes local duties & taxes)

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 332-594Wh
Max Thrust: 29kg / 63.9lbs
Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
Dimensions with Battery: L525x W125 x H50mm
Peak Horsepower: 1854W/2.5hp
Sustained Horsepower: 1455W/1.9hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

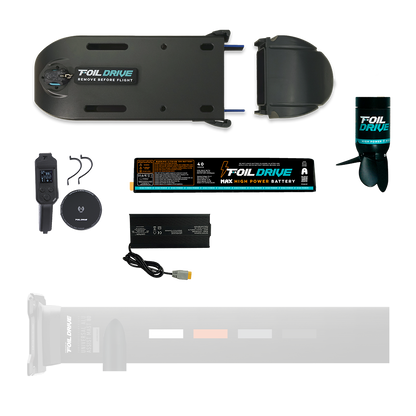

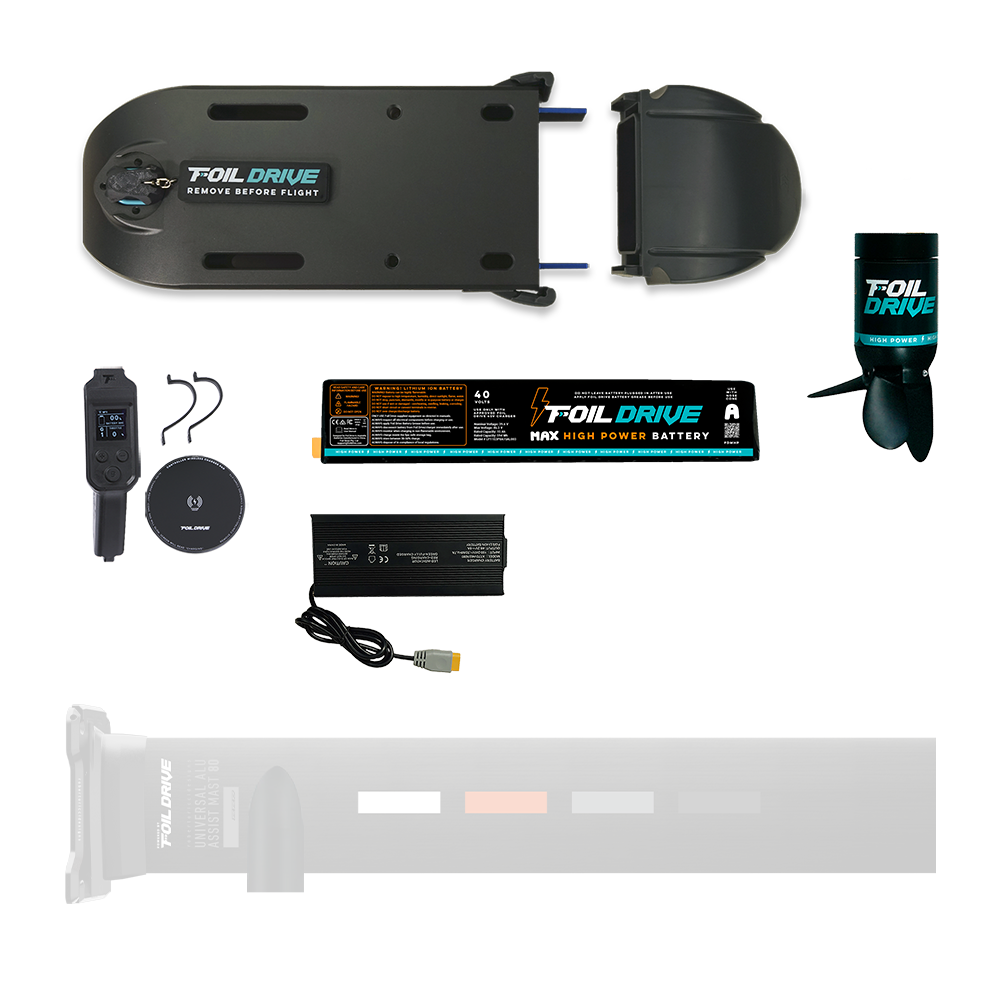

What’s Included

icon

Foil Drive Assist MAX
High Power Battery
Integrated Mast High Power Motor

Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive V3 Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
